Ideal Standard i.life O HydroTwist Toilet + Concealed WC Cistern with Wall Hung Frame (Matt Black Flush Plate)

Ideal Standard i.life O HydroTwist Toilet + Concealed WC Cistern with Wall Hung Frame (Matt Black Flush Plate)

Bring a cleaner, more contemporary look to your bathroom with this Ideal Standard wall hung toilet bundle. It pairs the i.life O HydroTwist WC pan with a matching soft close slim seat, a Prosys concealed cistern and wall hung frame, and an Oleas matt black dual flush plate. The result is a neat built-in finish with efficient flushing performance, smart everyday practicality, and a modern floating look.

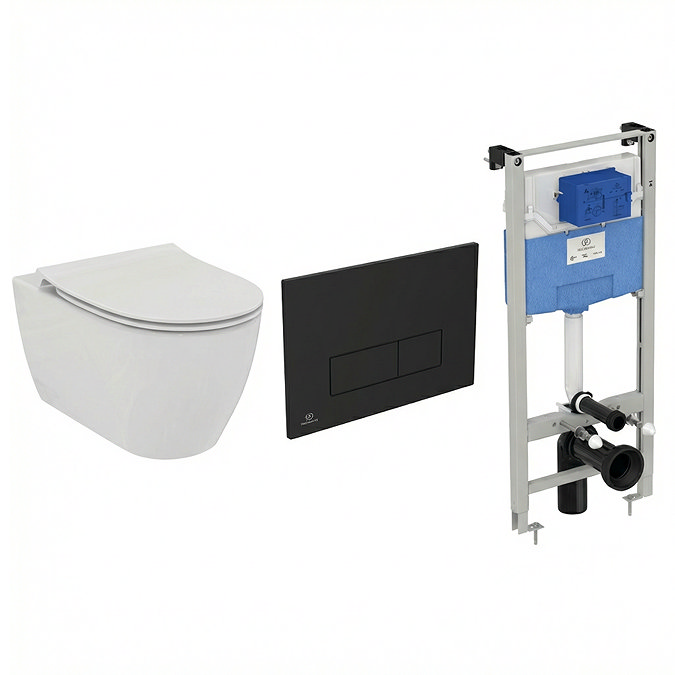

What’s Included in Your Bundle?

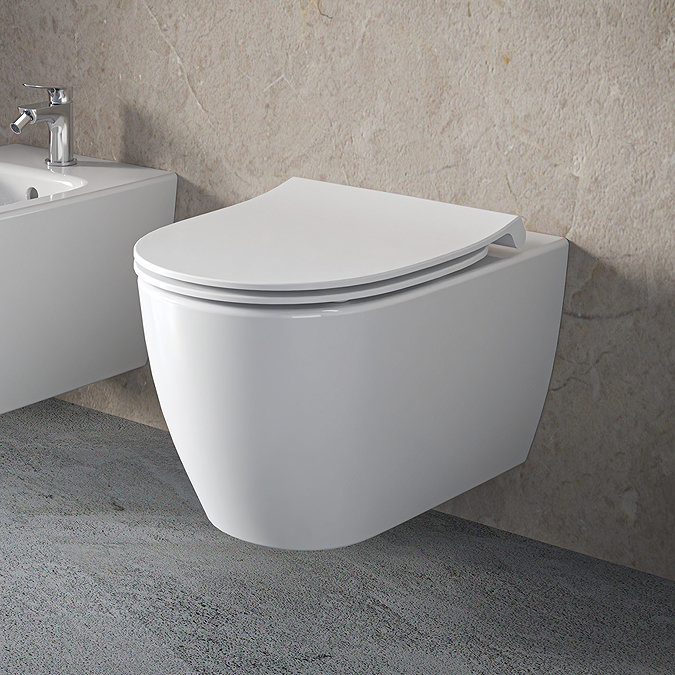

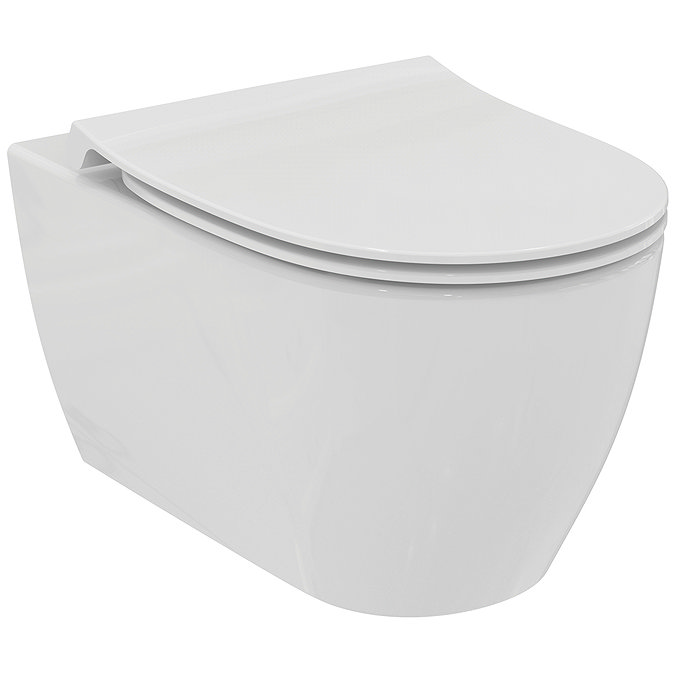

• Ideal Standard i.life O Wall Hung WC Pan (T568001): White gloss vitreous china pan with HydroTwist technology, washdown flush, and concealed fixing for a cleaner finish.

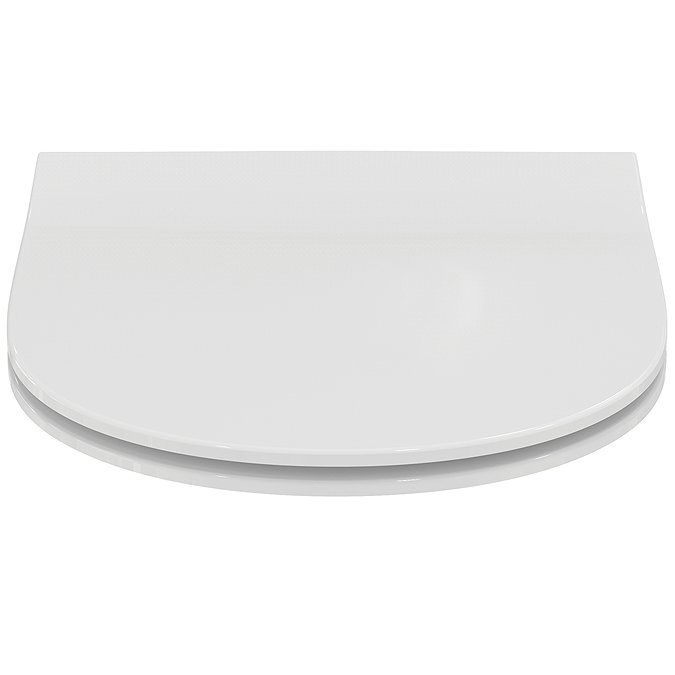

• Ideal Standard i.life O Soft Close Seat (T572401): Matching white gloss slim seat with soft close action and quick release functionality.

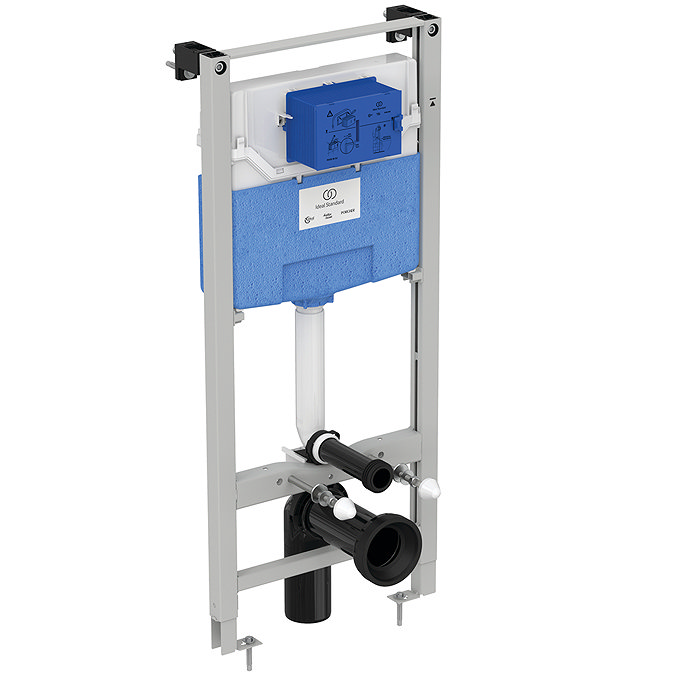

• Ideal Standard Prosys Concealed Cistern with Wall Hung Frame (R015367): 1150mm high steel frame with concealed cistern, designed for wall hung WC installation.

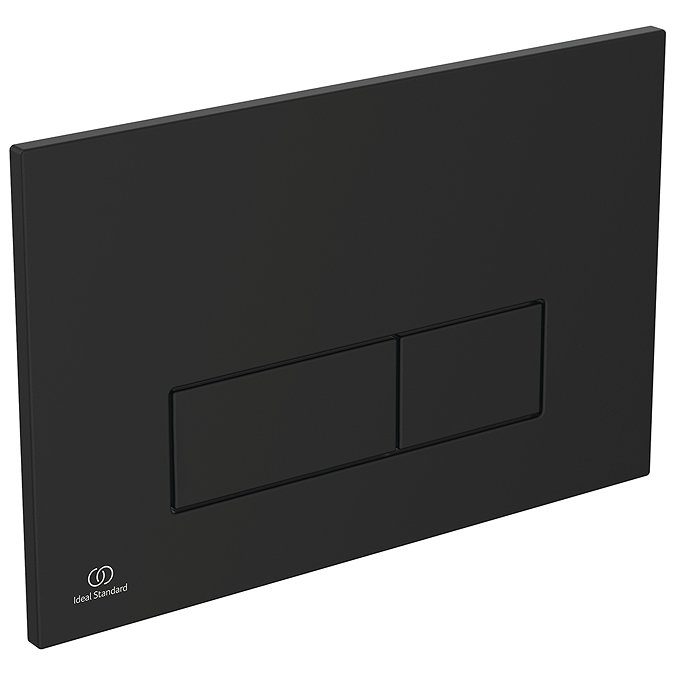

• Ideal Standard Oleas M2 Matt Black Flush Plate (R0121A6): Slim mechanical dual flush plate in a matt black finish for a sleek final touch.

Key Benefits & Features

• HydroTwist Flushing Performance: HydroTwist channels water into a powerful vortex for thorough bowl cleaning while maintaining efficient water use at low flush volumes.

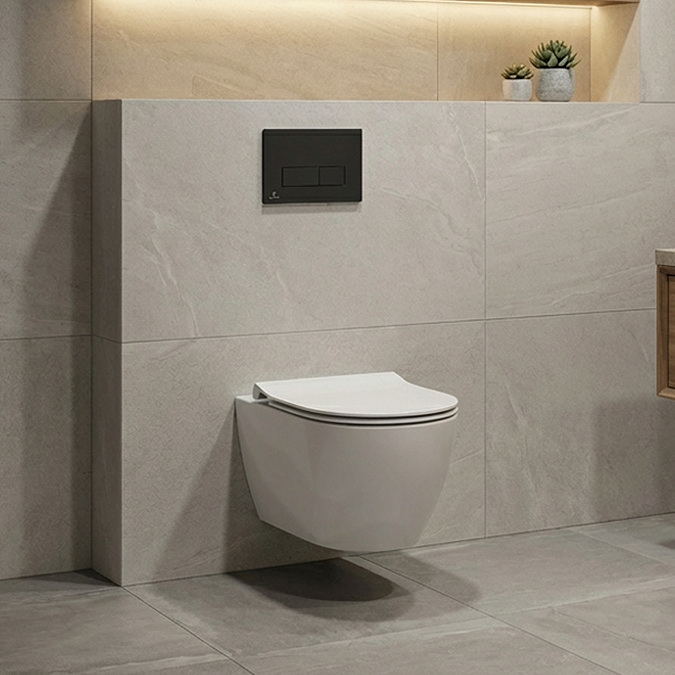

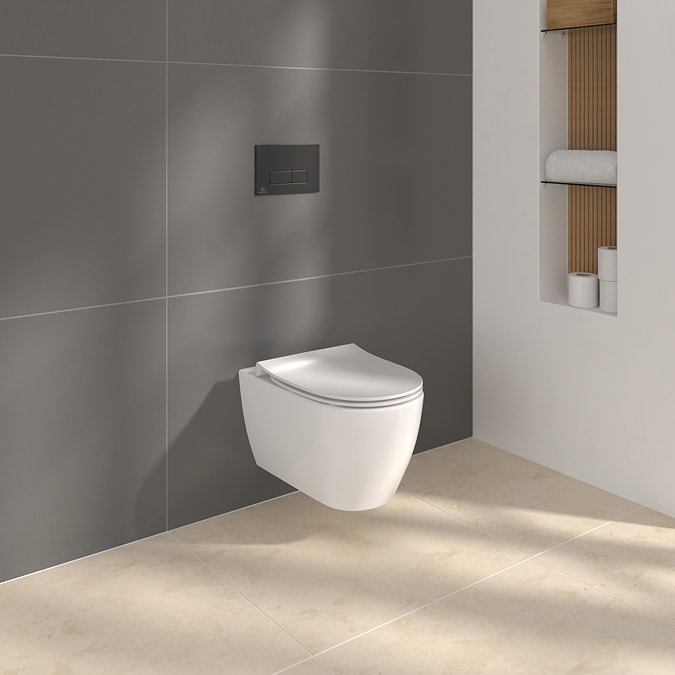

• Clean, Modern Wall Hung Design: The wall hung pan, concealed cistern and in-wall frame create a streamlined fitted appearance that suits contemporary bathrooms.
• Soft Close Convenience: The included seat closes gently and quietly, helping reduce noise and everyday wear.
• Quick Release Seat: The seat includes a quick release function, making it easier to remove when needed.
• Dual Flush Control: The Prosys frame and Oleas flush plate support two-volume flushing for practical day-to-day water control
• Quality Materials Throughout: The pan is made from vitreous china, the seat is urea plastic, the frame is steel, and the flush plate is ABS with a chromium-plated surface.

Seat, Frame & Flush Plate Features

• Slim seat design with soft close and quick release functionality
• Adjustable frame legs for easier installation
• Adjustable flush volume for added flexibility
• Front flush plate positioning
• Slim 8.5mm flush plate projection
• Mechanical push button operation

Technical Specifications

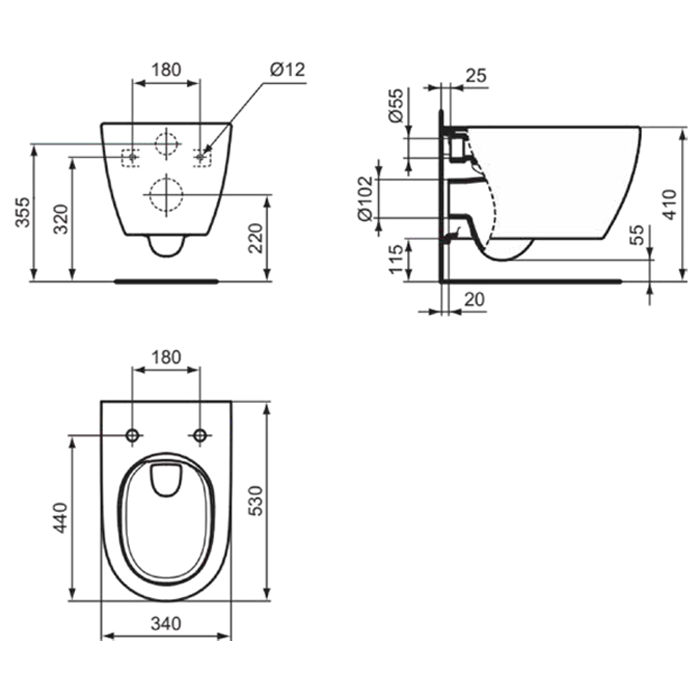

• WC Pan: W340 x D530 x H355mm
• Seat: W350 x D435 x H45mm

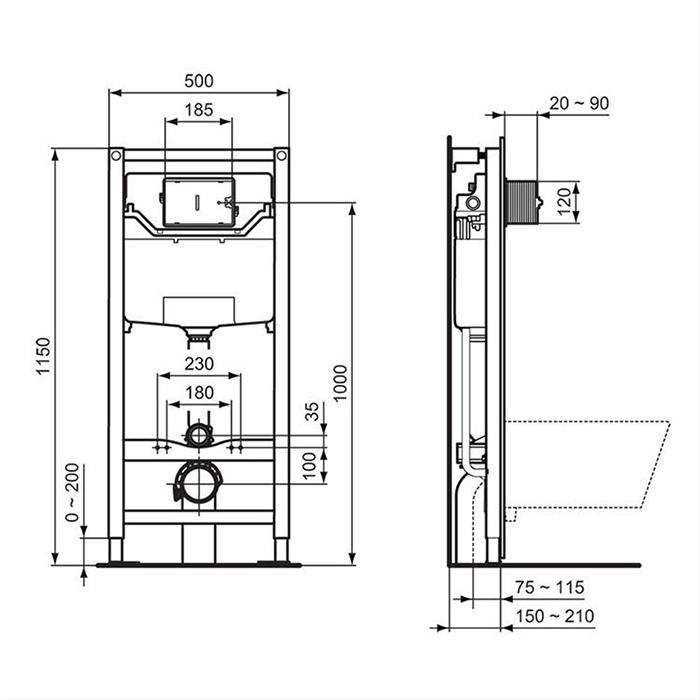

• Frame Size: W500 x H1150 x D150 to 210mm

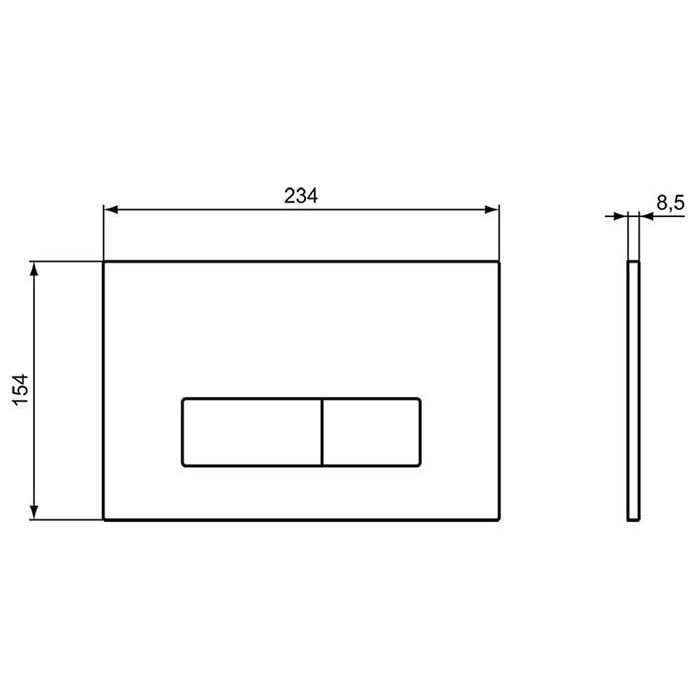

• Flush Plate Size: W234 x H154 x D8.5mm
• Pan Material: Vitreous china
• Seat Material: Urea plastic
• Frame Material: Steel
• Flush Plate Material: ABS with matt black finish
• Flush Type: Dual flush
• Installation Type: Wall hung with concealed cistern

Installation Guide & Advice

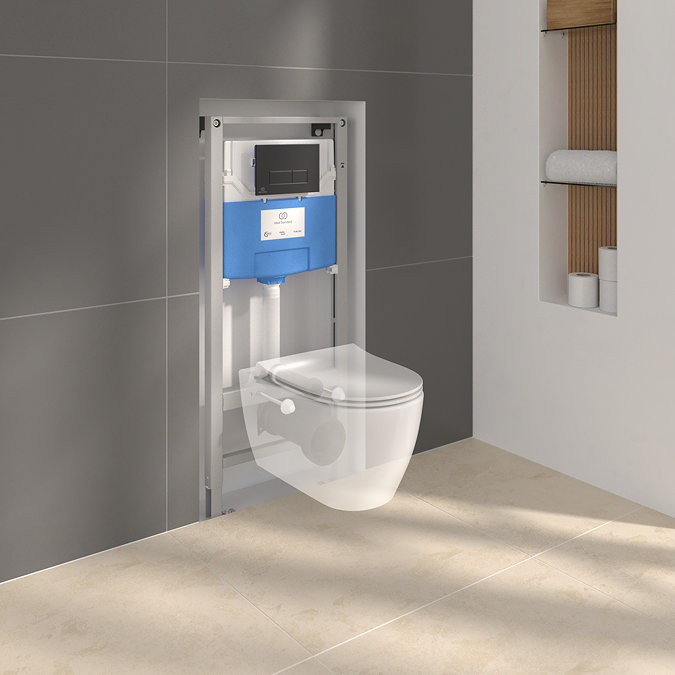

This bundle is designed for wall hung WC installation using the supplied Prosys frame and concealed cistern, finished with the matching Oleas mechanical dual flush plate.

The frame is suitable for selected Ideal Standard and Armitage Shanks wall hung WC bowls with 6/4 litre or 4.5/3 litre dual flush compatibility, and this bundle pairs it with the matching Ideal Standard i.life O wall hung pan.

Please note: always check dimensions, wall suitability and installation requirements before fitting. Product images are for illustrative purposes only and may differ slightly from the finished installation.

Guarantees

• WC Pan: Lifetime Guarantee
• Toilet Seat: 5 Year Guarantee
• Wall Hung Frame: 10 Year Guarantee
• Concealed Cistern: 5 Year Guarantee
• Flush Plate: 2 Year Guarantee
