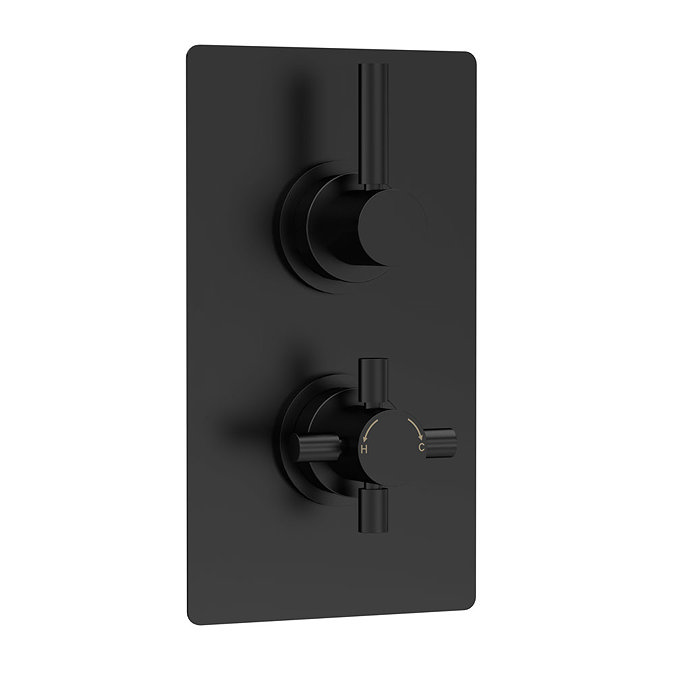

Hudson Reed Tec Pura Concealed Twin Shower Valve with Built-in Diverter - Matt Black

Hudson Reed Tec Pura Concealed Twin Shower Valve with Built-in Diverter - Matt Black

The Tec Pura shower valve incorporates thermostatic control with the most up to date design. A thermostatically controlled shower with separate controls for the flow & temperature.

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. The concealing plate can be installed horizontally or vertically to fit your bathroom and is available with a variety of kit options.

Top control is the diverter to switch between shower accessories, the bottom control adjusts the temperature. Diverts between two shower accessories: fixed head/slide rail kit, fixed head/body jets or slide rail kit/body jets.

The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing, simply remove the cartridge turn 180° and replace. The cartridge is also highly resistant to calcium build up - even in hard water areas


Product Details

• Height - 215mm
• Width - 120mm
• Depth - 137mm
• Valve/Cartridge Type - 1/4 Turn Ceramic Disc
• Pipe Size - 15mm & 22mm
• Colour/Finish - Matt Black
• Material - High quality brass & ABS
• Pressure - MP - 0.5 Bar Minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates - even at low pressure.

Guarantee - 3 Year

Flow Rates

0.5 Bar - 13 l/m
1.0 Bar - 17 l/m
2.0 Bar - 24 l/m
3.0 Bar - 27 l/m
