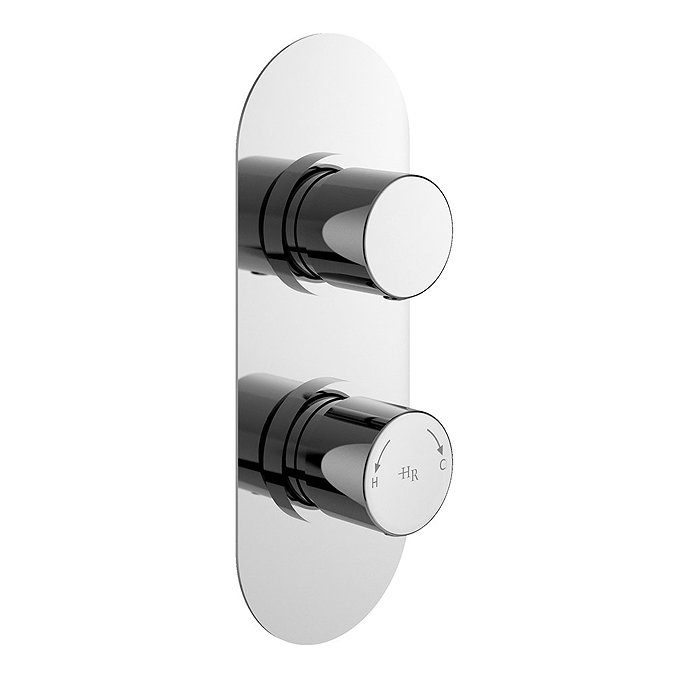

Hudson Reed Round Twin Concealed Thermostatic Shower Valve with Diverter

Hudson Reed Round Twin Concealed Thermostatic Shower Valve with Diverter - RNDTW02

The Hudson Reed Round Twin Concealed Thermostatic Shower Valve offers thermostatic showering via two easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Seperate controls for temperature and flow.

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing, simply remove the cartridge turn 180° and replace. The cartridge is also highly resistant to calcium build up - even in hard water areas.

Product Details

• Height: 215mm
• Width: 80mm
• Depth: 136mm
• Brand: Hudson Reed
• Valve/Cartridge Type - 1/4 Turn Ceramic Disc
• Pipe Size - 15mm & 22mm
• Colour: Polished Chrome
• Material: Brass / ABS
• Outlets - 2
• Valve Handle: Round Handle
• High quality internal brassware for long life
• Accurate flow control
• Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
• Excellent flow rates - even at low pressure
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• Operating Pressure: 0.5 bar

Guarantee: 20 Year

Flow Rates

0.5 Bar - 13 l/m
1.0 Bar - 17 l/m
2.0 Bar - 24 l/m
3.0 Bar - 27 l/m
