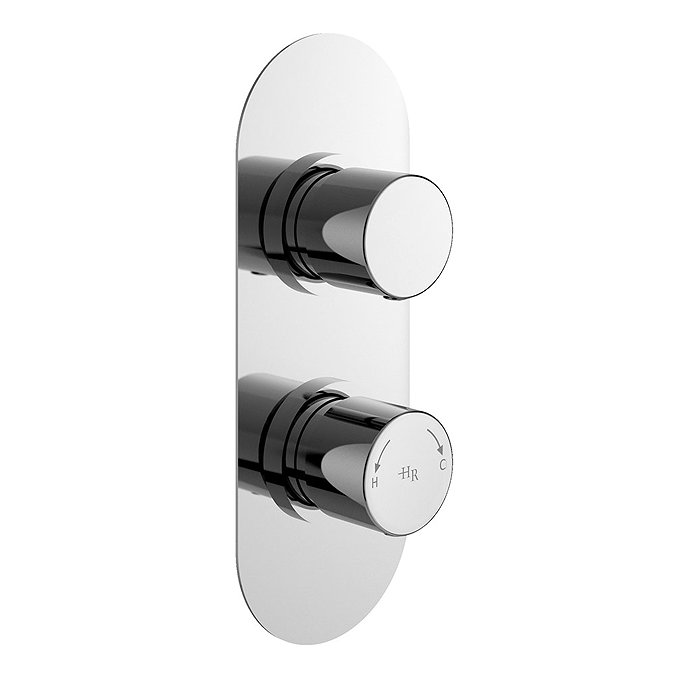

Hudson Reed Round Twin Concealed Thermostatic Shower Valve

Hudson Reed Round Twin Concealed Thermostatic Shower Valve - RNDTW01

The Hudson Reed Round Twin Concealed Thermostatic Shower Valve offers thermostatic showering via two easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Seperate controls for temperature and flow.

The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing, simply remove the cartridge turn 180° and replace. The cartridge is also highly resistant to calcium build up - even in hard water areas

Operates one shower accessory: fixed head or slide rail kit.

Product Details

• Height: 215mm
• Width: 80mm
• Depth: 136mm
• Brand: Hudson Reed
• Valve/Cartridge Type - 1/4 Turn Ceramic Disc
• Pipe Size - 15mm (1/2" BSP)
• Colour: Polished Chrome
• Material: Brass / ABS
• Outlet - 1
• Valve Handle: Round Handle
• High quality internal brassware for long life
• Patented Valquest cartridge making for easy installation and maintenance
• Accurate flow control
• Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
• Excellent flow rates - even at low pressure
• Accurate flow control
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• WRAS Approved (2204707)

Guarantee: 20 Year

Flow Rates

0.1 Bar - 5.5 l/m
0.5 Bar - 14 l/m
1.0 Bar - 20 l/m
2.0 Bar - 29 l/m
3.0 Bar - 44 l/m
