Hudson Reed Revolution Industrial Triple Concealed Thermostatic Shower Valve - SIWTR02 Large Image
Hudson Reed Revolution Industrial Triple Concealed Thermostatic Shower Valve - SIWTR02 Large Image

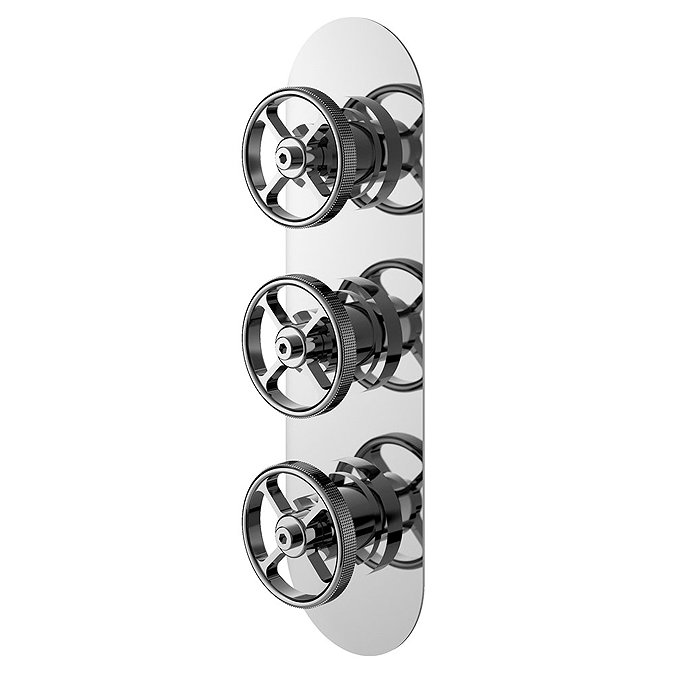

Hudson Reed Revolution Industrial Triple Concealed Thermostatic Shower Valve

Part No.: SIWTR02

£229.95

In Stock

Overview

Hudson Reed Revolution Industrial Triple Concealed Thermostatic Shower Valve - SIWTR02

The Hudson Reed Revolution range features an industrial design with a contemporary chrome finish. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Operates two shower accessories separately or simultaneously: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.

Product Details

  • Height: 280mm
  • Width: 80mm
  • Depth: 136mm
  • Brand: Hudson Reed
  • Colour: Polished Chrome
  • Material: Brass / ABS
  • Two Outlet
  • Valve Handle: Round Handle
  • High quality internal brassware for long life
  • Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
  • Accurate flow control
  • Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
  • Excellent flow rates - even at low pressure
  • Accurate flow control
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Pipe Size: 15 mm (1/2" BSP)
  • Approvals: WRAS, TMV2, TMV3
  • Operating Pressure: 0.1 bar

Guarantee: 20 Year

Flow Rates


0.1 Bar - 5.5 l/m
0.5 Bar - 14 l/m
1.0 Bar - 20 l/m
2.0 Bar - 29 l/m
3.0 Bar - 44 l/m

Product Overview

Dimension image

No questions about this product yet

Delivery Costs

Tell us where you are so we can calculate your delivery

Delivery FAQs

Larger pallet couriers will contact you on the day to let you know a rough time for delivery, due to the size and cost, a signature is always required.
We always suggest someone is home to accept the delivery, as missing your delivery may result in a re-delivery fee being charged

If the courier has left you a calling card you may contact them directly to rearrange delivery for a more convenient time. If you have not received a calling card, we will be able to assist you in re-booking delivery. Please use the live chat function to speak directly to a member of the team, or alternatively email us at info@victorianplumbing.co.uk.

Orders can be updated and modified up until the picking process begins. To amend your order please get in touch via Live Chat or by emailing us at info@victorianplumbing.co.uk.

If you would like to upgrade your delivery or arrange to split your delivery, you can do this via the help centre.
Please note, once your order has begun to be picked at our warehouse, you will not be able to make any further additions.

Yes, please get in touch with the team either via live chat or at info@victorianplumbing.co.uk to arrange a pre-order.

If you are ordering other in-stock items alongside this, please be aware your shipment will be held until all items are ready to be dispatched. If you would like to arrange a split delivery, please let the team know as soon as your order is confirmed.

We can only deliver and accept signatures from the delivery address as per the order.

Larger pallet couriers will contact you on the day to let you know a rough time for delivery, due to the size and cost, a signature is always required. Small parcel couriers may leave these with a neighbour if no one is home to accept delivery and leave an appropriate calling card if so.

We always suggest someone is home to accept the delivery, as missing your delivery may result in a re-delivery fee being charged.

Returns

For further information on our returns process, please check out our Returns Information Page.

International Delivery

Available - delivery costs will be calculated at the checkout.

Please note:

  • Out-of-stock items will despatch on a similar timescale once in stock.
  • You will be advised of any changes in the expected in-stock date.
  • The delivery timescale of an order is dependent on the size of the largest item in the order, relating to the guide above.We strongly advise that you do not book plumbers until your goods have arrived and have been checked, we are not liable for any plumbers costs, consequential loss or compensation in any way.

5

1 customer review

5 stars

1

4 stars

0

3 stars

0

2 stars

0

1 stars

0

27th February 2024

Beautiful, Functional Taps

I bought these taps last year and have had them fitted since around August. I'm not a plumber just fairly handy and I found them easy to install. They look great in my new bathroom, I have the main body concealed inside a stud wall showing only the taps themselves. not had any problems or leaks so far. the main body inside the wall is a heavy chunk of brass so needs properly mounting to secure. I chose to screw it onto a 10mm plywood that I mounted in the wall. it sits secure, no wobbling of the taps. I love that the 2 taps aren't just a valve but that one is for one outlet and one is for a separate outlet. You can have both on at the same time if you like. You can probably mount these horizontally too but it would be a nightmare to plumb in. My only minor complaint is that the direction to turn on each outlet is different. The top tap you turn anticlockwise and the main shower turns on, the bottom tap turns clockwise to turn on my handheld shower. Gets me every time.
