Hudson Reed Kubix Concealed Twin Shower Valve with Diverter

Part No.: A3017

£189.95

Low Stock

Overview

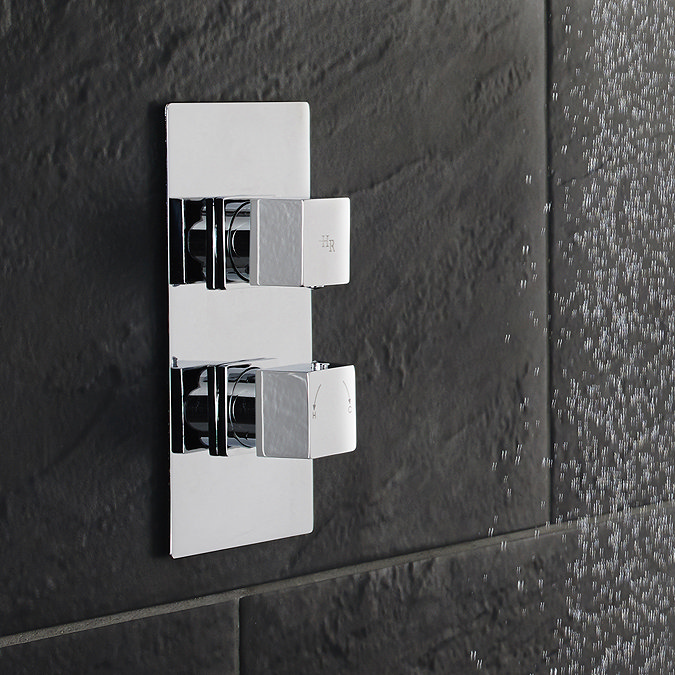

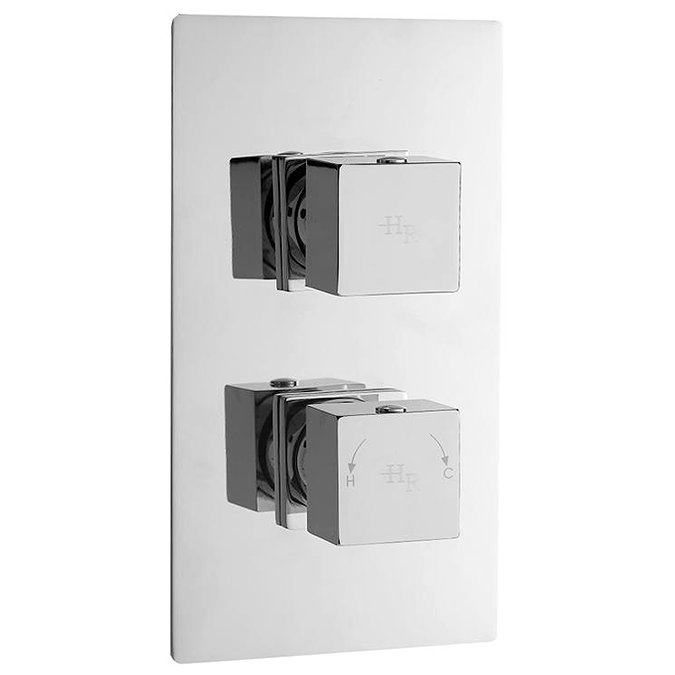

Hudson Reed Kubix Concealed Twin Shower Valve with Diverter - Chrome - A3017

The Kubix twin concealed thermostatic shower valve from Hudson Reed is a luxury showering product complete with diverter. This Concealed Thermostatic Twin Shower Valve offers thermostatic showering via two easy-to-operate controls.

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow.

Diverts between two shower accessories: fixed head/slide rail kit, fixed head/body jets or slide rail kit/body jets.

Product Details

  • Height - 215mm
  • Width - 120mm
  • Depth - 134.5mm
  • Material - Brass
  • Colour/Finish - Polished Chrome
  • Pressure - MP - 0.5 Bar Minimum
  • Faceplate - Rectangular
  • Range - Minimalist Square
  • Can be fitted vertically or horizontally.
  • Accurate flow control.
  • Thermostatic control to +/- 2 to 3°C even if the water pressure fluctuates.
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off.
  • In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas.
  • Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
  • Excellent flow rates - even at low pressure.
  • The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing.
  • Simply remove the cartridge, turn 180 degrees and replace.
  • Protection against accidental scalding
  • Standards - EN200 and/or WRc/NSF
  • Suitable for all plumbing systems

Made in Britain

Guarantee - 20 Year

Flow Rates

0.1 Bar - N/A l/m
0.5 Bar - 13 l/m
1.0 Bar - 17 l/m
2.0 Bar - 24 l/m
3.0 Bar - 27 l/m

Product Overview

Dimension image
