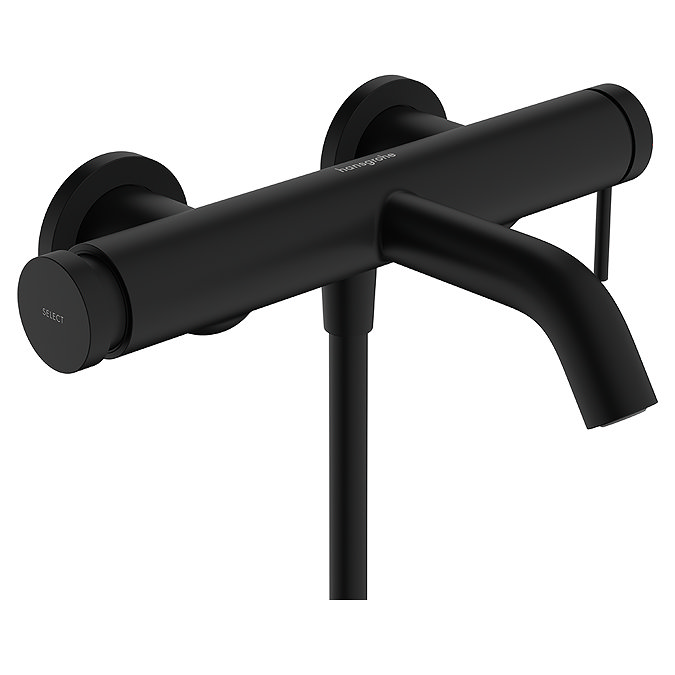

hansgrohe Tecturis S Single Lever Bath Mixer for Exposed Installation - Matt Black

hansgrohe Tecturis S Single Lever Bath Mixer for Exposed Installation - Matt Black

The Tecturis S Bath Mixer combines elegant design with practical functionality. The Select button allows easy switching between the two functions. With CoolStart EcoSmart+ technology, it provides water savings by mixing air into the stream. Specifications include a 209 mm projection, 150 ± 12 mm center distance, and flow rates of 19 l/min for the bath spout and 14.7 l/min for the hand shower. The ceramic cartridge ensures precise temperature control.

Product Details

• Brand: hansgrohe
• Product Code: 73422670
• Finish: Matt Black
• Projection: 221mm
• Designed to run 2 outlets
• Centre distance: 150 mm ± 12 mm
• Pressure diverter Select with automatic resetting
• Protected against backflow
• With silencer
• Noise class: II
• Connection type: S connections
• Wall-mounted
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Spray type mixer: normal spray
• Flow rate for bath spout (at 3 bar): 19 l/min
• Flow rate of hand shower (at 3 bar): 14.7 l/min
• Ceramic cartridge
• Maximum temperature can be adjusted on installation
• WRAS approved

5 Year Guarantee
