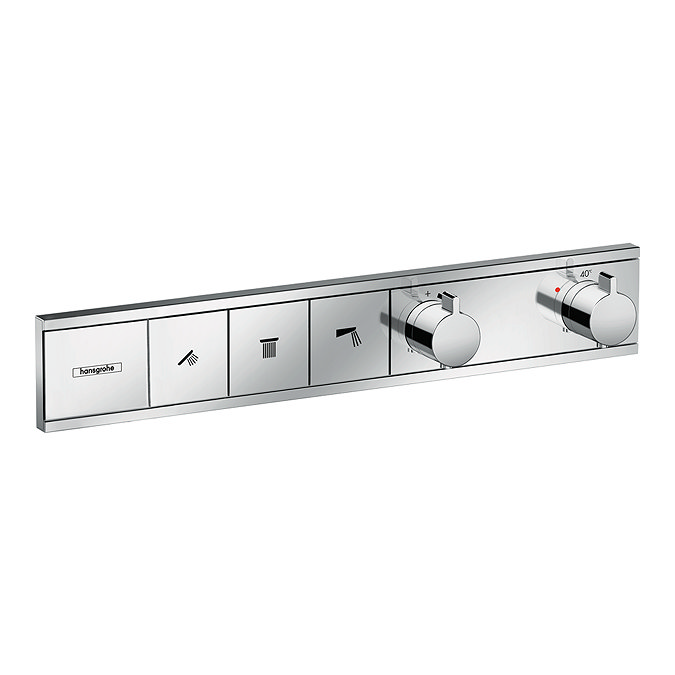

hansgrohe RainSelect Thermostat for Concealed Installation for 3 Functions - Chrome

hansgrohe RainSelect Thermostat for Concealed Installation for 3 Functions - Chrome - 15381000

Take the enjoyment of showering to a whole new level with the high-quality RainSelect  designer thermostat. Flat,clear, intuitive to use: control up to three water sources with the 70x70 Select buttons. The geometric design of the control panel works really well with the Rainfinity shower range.

Please note: This valve must be installed in combination with the hansgrohe RainSelect Basic Set for 3 Outlets.

Product Details

• Designed to run 3 outlets
• Multiple outlets can be run simultaneously
• Select push button on / off control for 3 outlets
• Depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
• Thermostat cartridge, start / stop cartridge
• Concealed installation
• Maximum flow rate (at 3 bar): 38 l/min
• Flow rate per user (at 3 bar): 26 l/min
• Flow rate by simultaneous use of all outlets (at 3 bar): 38 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Safety stop at 40°C
• Maximum temperature can be adjusted on installation
• Non-return valve
• Connection type: basic set
• Thermostat is delivered with buttons handshower and PowderRain
• If running with a pump, please specify a universal (negative head) pump
• Noise class: I
• WRAS 2207061


5 Year Guarantee
