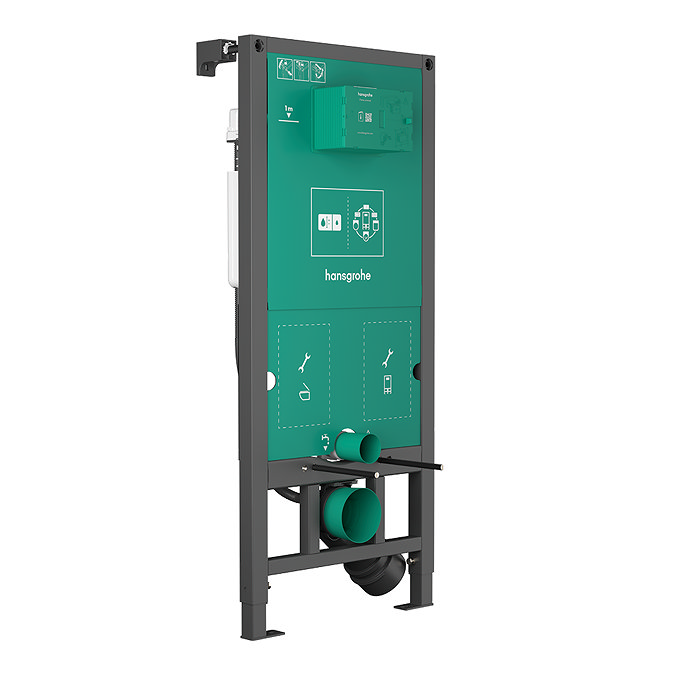

hansgrohe iFrame Universal Concealed Cistern 1120 for Wall Hung WC

hansgrohe iFrame Universal Concealed Cistern 1120 for Wall Hung WC - 01025180

Create a seamless and spacious aesthetic in your bathroom with the Hansgrohe iFrame Universal Concealed Cistern 1120. Designed specifically for wall-hung toilets, this robust frame system hides the functional plumbing behind the wall, leaving only the elegant ceramics and flush plate visible.

More than just a support frame, the iFrame 1120 is engineered for reliability and silence. It features advanced sound-insulation technology and a heavy-duty steel construction capable of supporting up to 400 kg, providing total peace of mind for decades to come. Whether you are installing a standard wall-hung WC or a modern shower toilet, the iFrame provides the flexible, universal foundation you need.

Product Details

• Installation Type: Drywall Construction (Stud Wall)
• Overall Height: 1120 mm
• Frame Width: 500 mm
• Installation Depth: Adjustable (Standard fits 75–115 mm drainage depth)
• Load Capacity: Tested to 400 kg
• Flush Volume: Dual Flush (Adjustable). Factory setting: 6L / 3L
• Water Connection: R 1/2" (Back or Side)
• Drainage: DN 90 (includes DN 90/110 adapter)
• Material: Powder-coated Steel Frame / Plastic Cistern
• Whisper-Quiet Operation: Engineered with noise-reducing components, including specialised feet and fittings that minimise sound transfer through the building structure, ensuring a silent flush every time.
• EcoSmart Water Saving: Features intelligent delayed filling technology. The inlet valve only opens once the flush valve has closed, preventing water waste during the flush cycle.
• Universal Compatibility: Designed to work perfectly with the entire range of hansgrohe wall-hung toilets (including the EluPura range) and hansgrohe shower toilets.
• Installation Flexibility: The rotatable waste pipe and height-adjustable feet (0–200 mm) allow for precise alignment in various drywall stud configurations. The feet feature "brakes" to hold position during leveling, making installation a one-person job.
• Easy Maintenance: Includes a service opening that allows easy access to the cistern internals through the flush plate aperture without damaging the wall.

5 Year Guarantee
