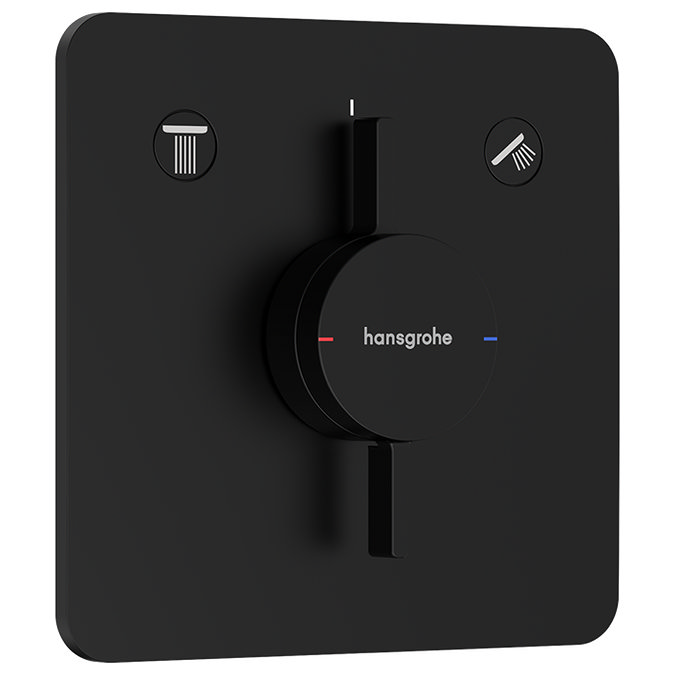

hansgrohe DuoTurn Q Manual Shower Valve for Concealed Installation for 2 Outlets - Matt Black

hansgrohe DuoTurn Q Manual Shower Valve for Concealed Installation for 2 Outlets - Matt Black

The hansgrohe DuoTurn Q  Manual Shower Valve is designed for concealed installation and supports two outlets. Its intuitive controls and minimalist design enhance the shower space, while its cutting-edge technology ensures a safe and eco-friendly showering experience. The thermostat is equipped with a safety feature that locks the temperature above 40°C to avoid burns, and includes a dial to adjust water flow for conservation. With the convenience of the Select button, transitioning between different spray options or shower heads is effortless. This thermostat is not only practical but also stylish, making it a contemporary upgrade for any bathroom.

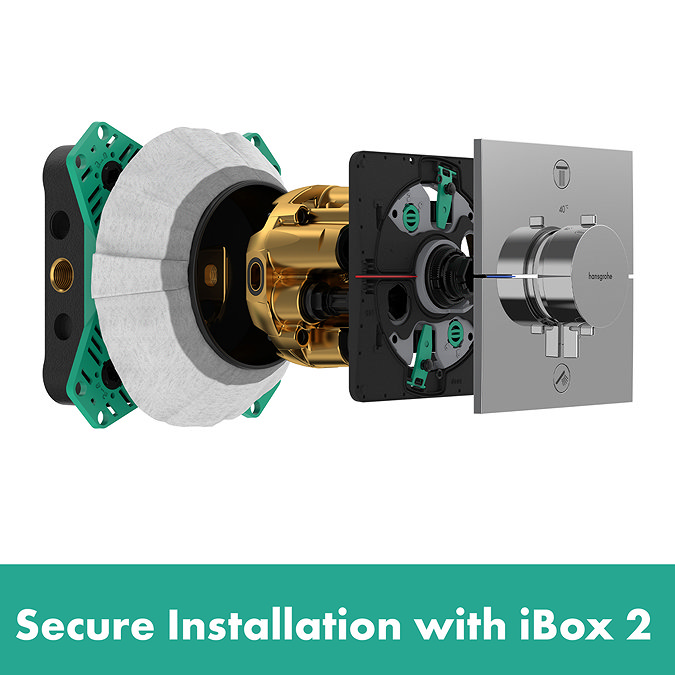

Please note: This valve must be installed in combination with the hansgrohe iBox universal 2 Basic set - 01500180

Product Details

• Brand: hansgrohe
• Product Code: 75414670
• Finish: Matt Black

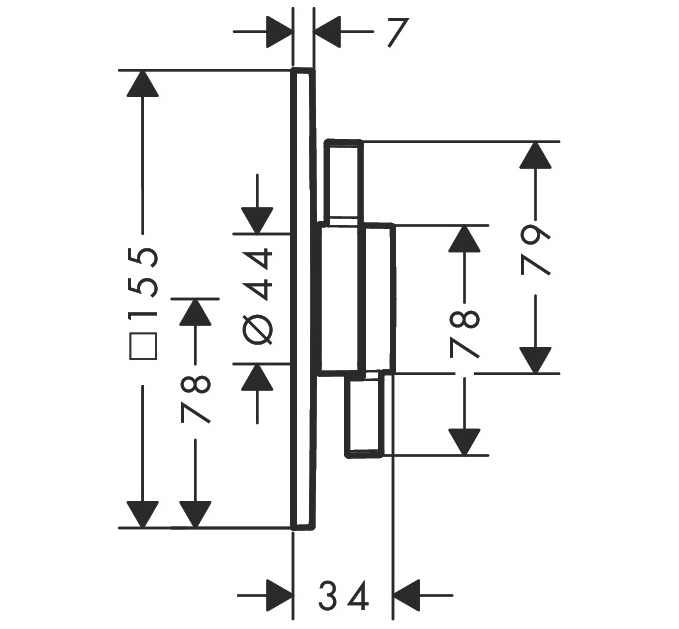

• Height: 155mm
• Width: 155mm
• 2 Outlets
• Escutcheon can be aligned by +/- 3°
• Comfortable turning on / off of outlets with large Select Handle
• Water flow control with stop function
• Spray Type: Rain large, hand shower, Waterfall, bath tub
• Flat escutcheon for more space in the shower
• Ceramic cartridge for temperature control, shut-off/ diverter valve
• Flow rate upper outlet: 29,5 l/min at 3 bar
• Flow rate lower outlet: 29.5  l/min at 3 bar
• Maximum flow rate at 3 bar: 29.5 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Easy installation due to pre-assembled outlet block

5 Year Guarantee
