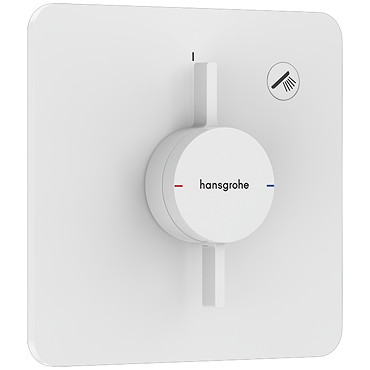

hansgrohe DuoTurn Q Manual Shower Valve for Concealed Installation for 1 Outlet - Matt White

hansgrohe DuoTurn Q Manual Shower Valve for Concealed Installation for 1 Outlet - Matt White

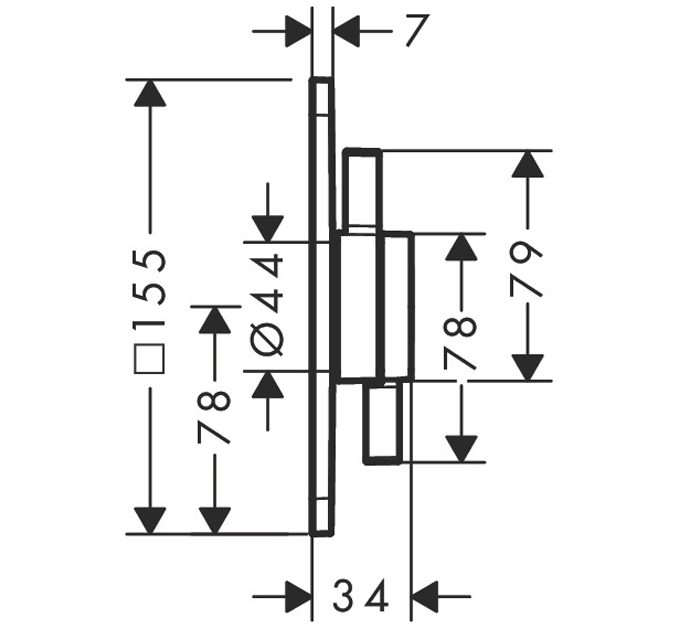

The hansgrohe DuoTurn Q Manual Shower Valve is designed for concealed installation and offers precise water flow control, making it perfect for those who prefer a gentle flow. It features a sleek matt white finish and compact dimensions (155mm x 155mm). for easy installation. It includes a ceramic cartridge for reliable temperature control and a 1/2" ceramic shut-off valve. The flat escutcheon design provides more space in the shower, and the handles remain at a consistent height. With a maximum flow rate of 15 l/min at 1 bar and 29.5 l/min at 3 bar, it operates efficiently within a pressure range of 1 to 10 bar. Backed by a 5-year guarantee, this mixer combines functionality, ease of installation, and elegant design.

Please note: This valve must be installed in combination with the hansgrohe iBox universal 2 Basic set - 01500180

Product Details

• Brand: hansgrohe
• Product Code: 75614700
• Finish: Matt White
• Height: 155mm
• Width: 155mm
• 1 Outlet
• Volume control for 1 outlet
• Escutcheon can be aligned by +/- 3°
• Ceramic cartridge for temperature control, 1/2" ceramic shut-off valve
• Flat escutcheon for more space in the shower
• Easy installation due to pre-assembled outlet block
• Handles always at the same height regardless of the installation depth of the basic set
• Easy installation due to pre-assembled outlet block
• Ceramic cartridge for temperature control, 1/2" ceramic shut-off valve
• Maximum flow rate at 1 bar: 15 l/min
• Maximum flow rate at 3 bar: 29.5 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar

5 Year Guarantee
