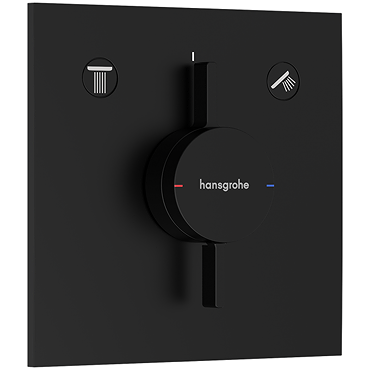

hansgrohe DuoTurn E Manual Shower Valve for Concealed Installation for 2 Outlets - Matt Black

hansgrohe DuoTurn E Manual Shower Valve for Concealed Installation for 2 Outlets - Matt Black

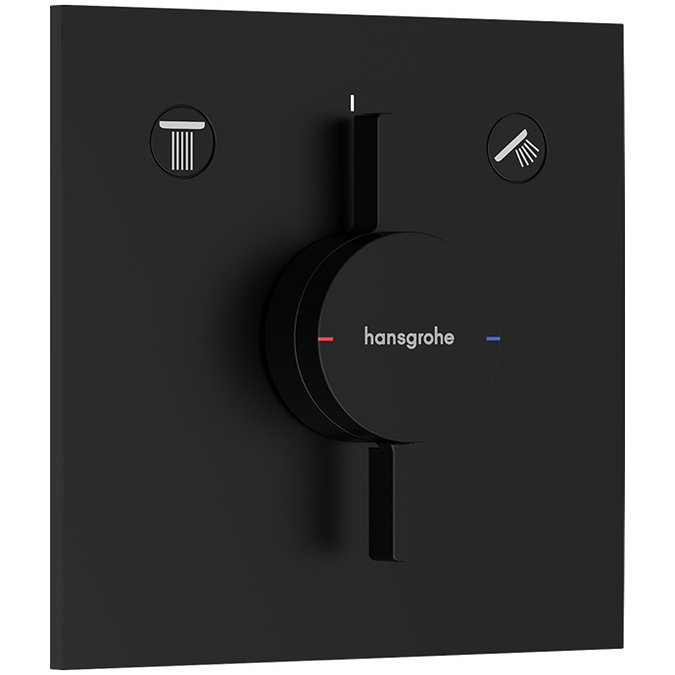

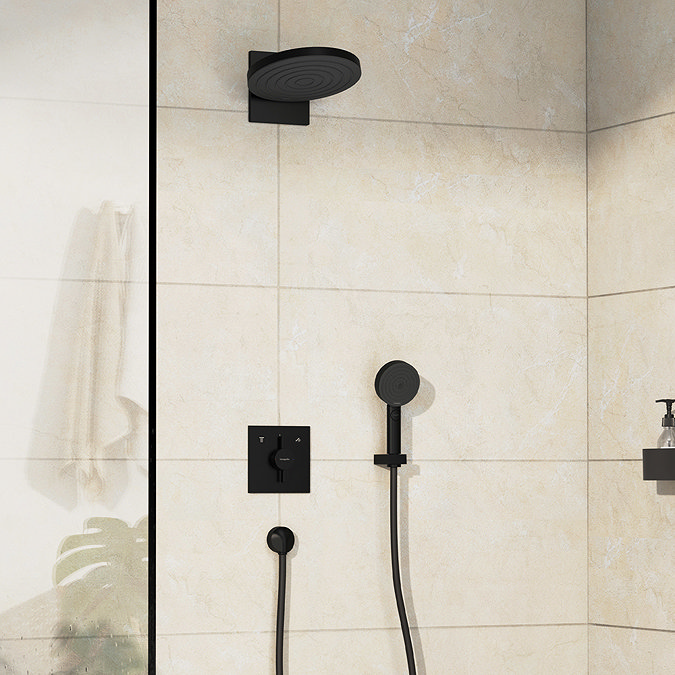

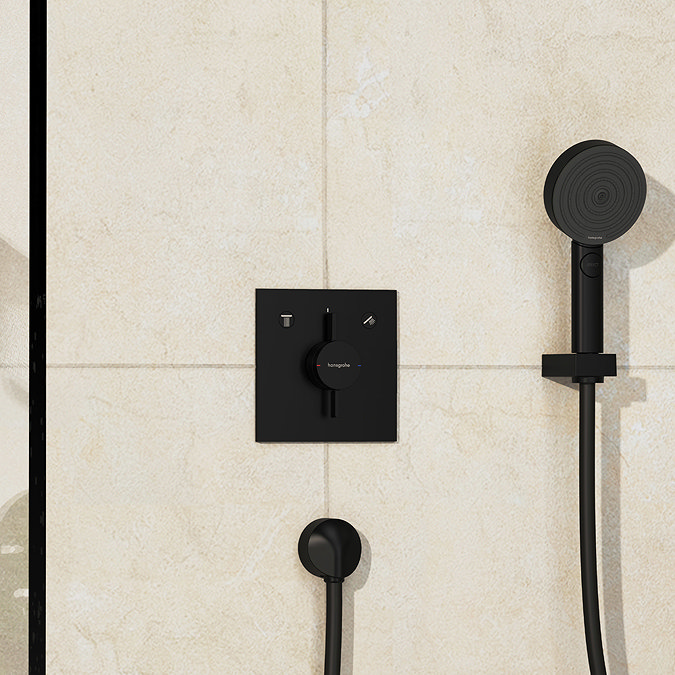

The hansgrohe DuoTurn E Manual Shower Valve is a stylish and functional bathroom fixture designed for concealed installation. It features two outlets and a large Select Handle for easy control. The mixer allows precise water flow regulation and offers various spray types, including Rain, hand shower, Waterfall, and bath tub. Installation is straightforward with the pre-assembled outlet block, and the ceramic cartridge ensures reliable temperature control. With a sleek matt black finish and a 5-year guarantee, this mixer combines elegance and durability.

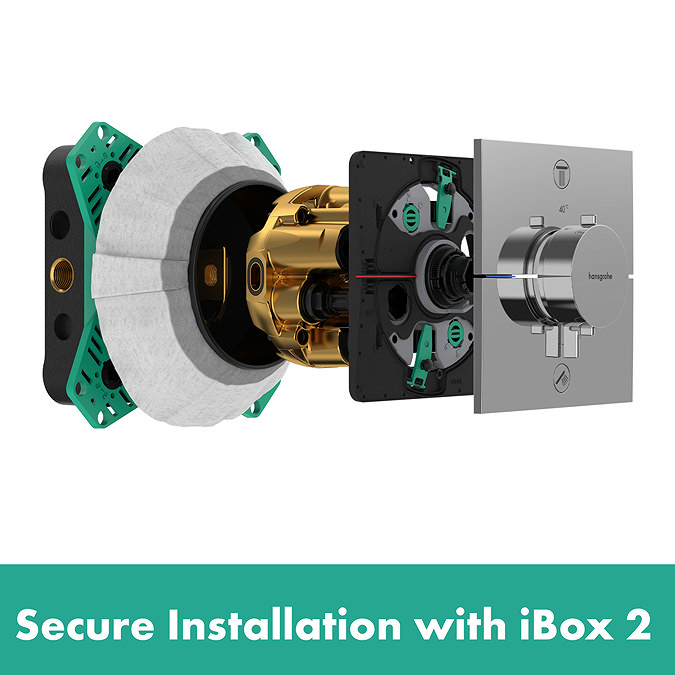

Please note: This valve must be installed in combination with the hansgrohe iBox universal 2 Basic set - 01500180

Product Details

• Brand: hansgrohe
• Product Code: 75417670
• Finish: Matt Black

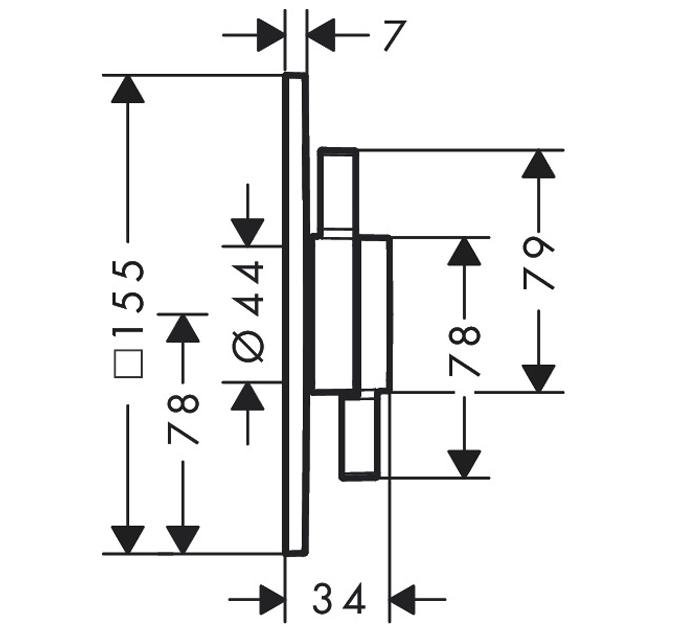

• Height: 155mm
• Width: 155mm
• 2 Outlets
• Escutcheon can be aligned by +/- 3°
• Comfortable turning on / off of outlets with large Select Handle

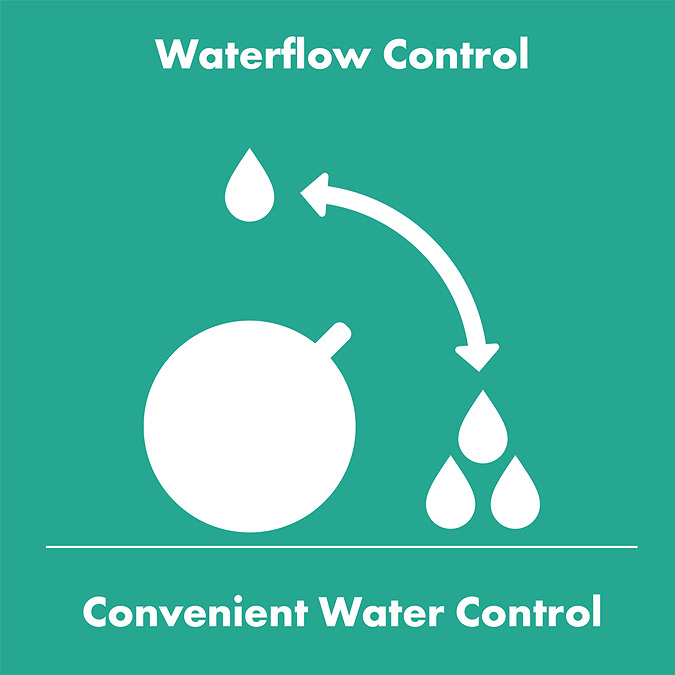

• Water flow control with stop function
• Spray Type: Rain large, hand shower, Waterfall, bath tub

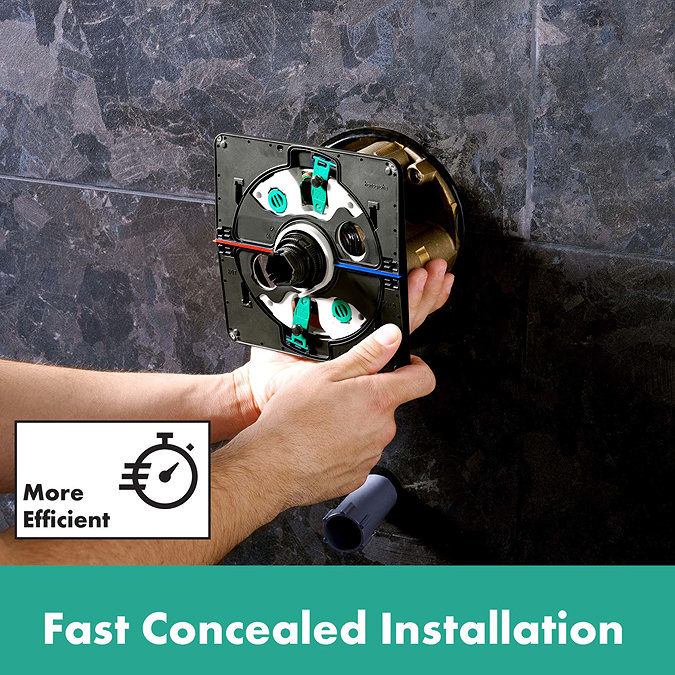

• Easy installation due to pre-assembled outlet block

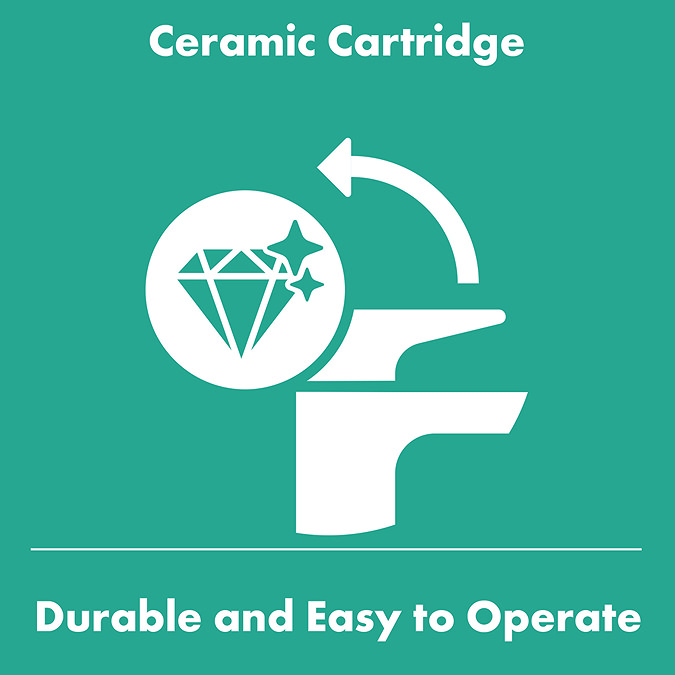

• Ceramic cartridge for temperature control, shut-off/ diverter valve
• Flow rate upper outlet: 29,5 l/min at 3 bar
• Flow rate lower outlet: 29.5  l/min at 3 bar
• Maximum flow rate at 1 bar: 15 l/min
• Maximum flow rate at 3 bar: 29.5 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar

5 Year Guarantee
