hansgrohe Basic Set for 3-hole Rim Mounted Single Lever Bath Mixer

hansgrohe Basic Set for 3-hole Rim Mounted Single Lever Bath Mixer

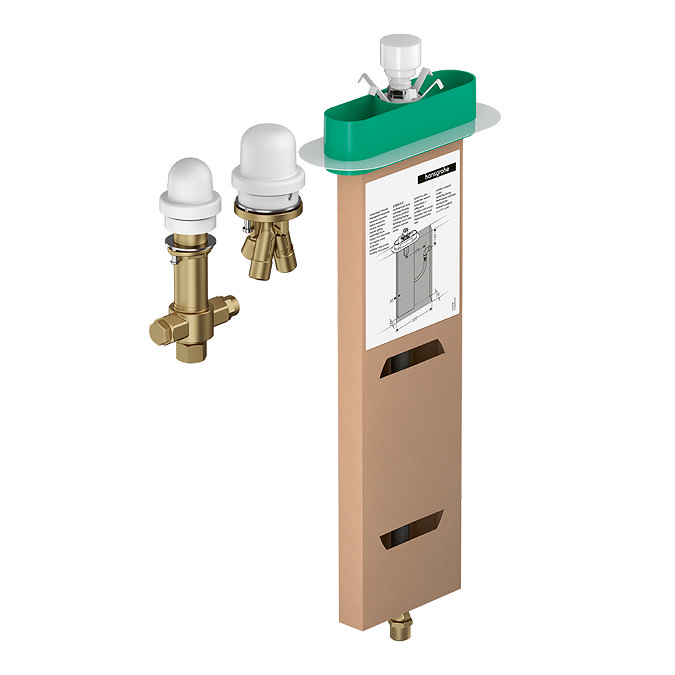

The Hansgrohe Basic Set for 3-Hole Rim-Mounted Single Lever Bath Mixer is the essential concealed component required for installing a corresponding Hansgrohe 3-hole bath mixer. It is designed for under-rim installation to provide the necessary water connections and control mechanisms within the bath structure. A key feature of this basic set is the integrated sBox, which manages the hand shower hose, allowing for a smooth, quiet, and protected pull-out length of up to 1.45m. This set ensures a reliable foundation for the final trim set (sold separately) and is suitable for operation in the standard pressure range of 1 bar to 10 bar, making it compatible with various Hansgrohe finish sets like Tecturis E and Tecturis S.

Product Details

• Brand: hansgrohe
• Product Code: 13481180
• Operating pressure: min. 1 bar/max. 10 bar
• Connection thread: G ½
• Bath shelf trim width at least 80 mm
• sBox for quiet, smooth and protected hose guidance
• Maximum pull-out length of hand shower: 1.45 m
• Connection hose length: 600 mm
• For use with hansgrohe 3-Hole Deck Mounted Bath Mixer

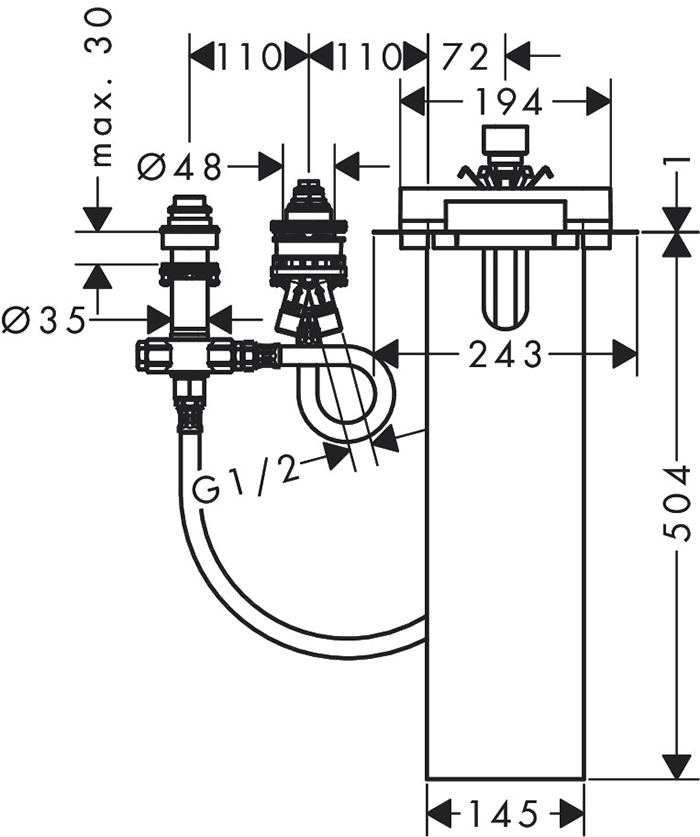

• Drilling diameter on bath tub: two drilled holes Ø 50/51 mm and connection by sawing out required (consider template)
• WRAS approved

5 Year Guarantee
