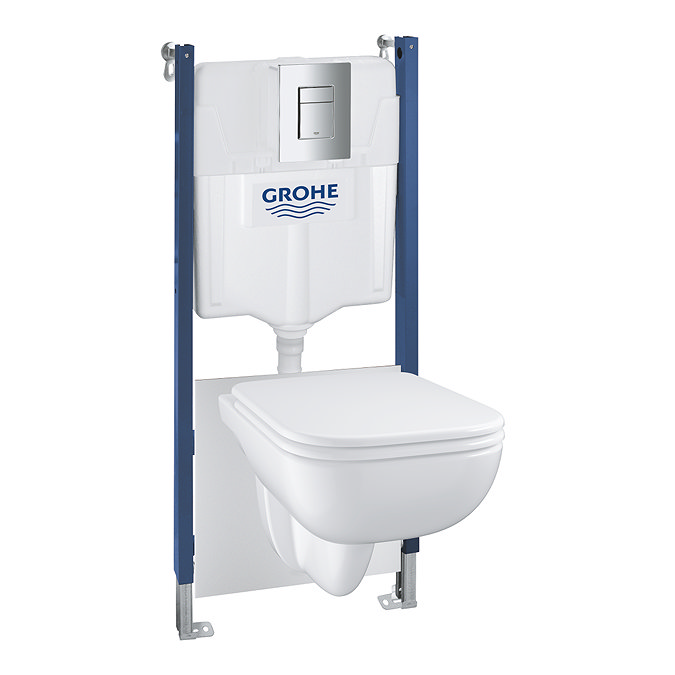

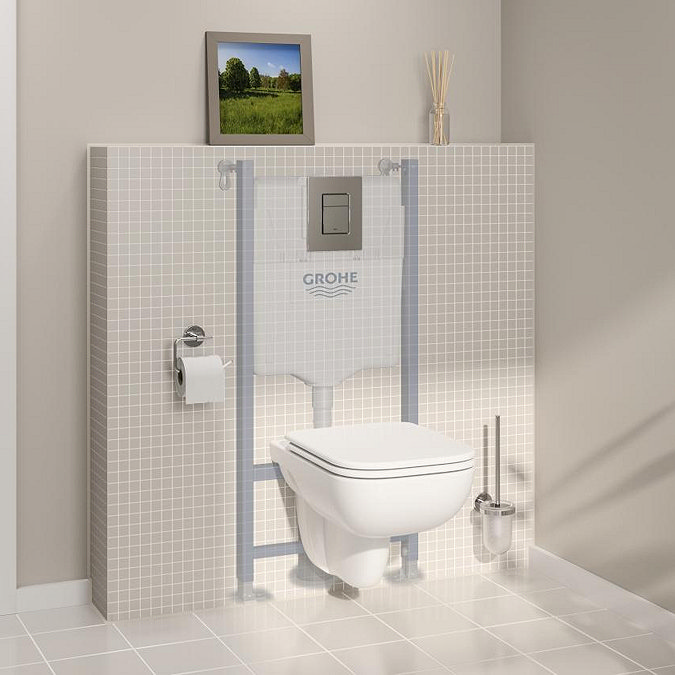

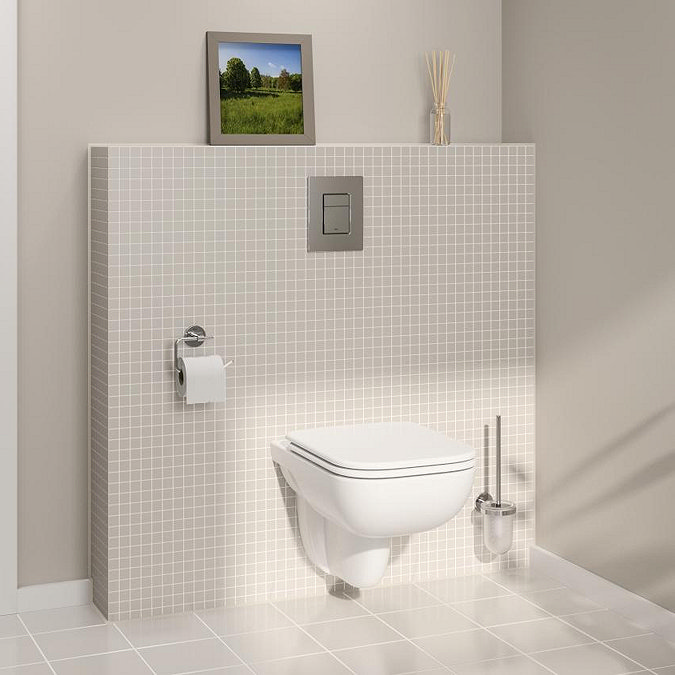

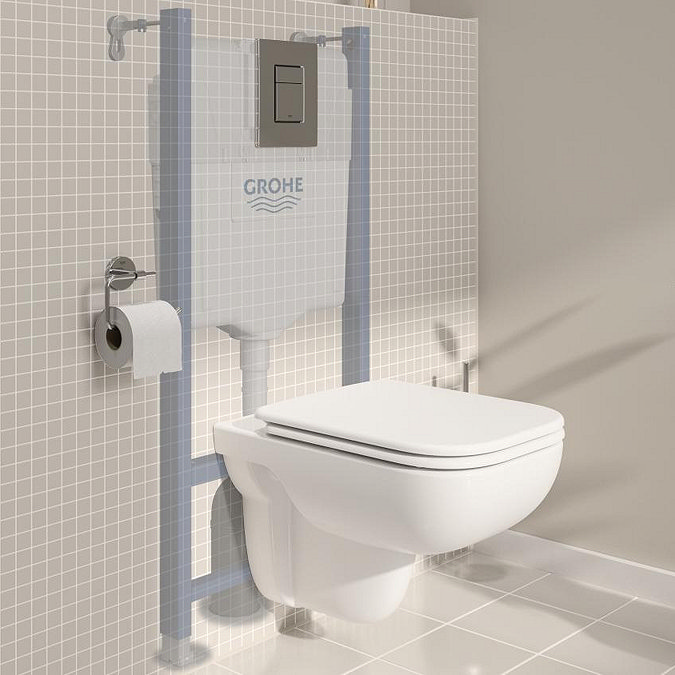

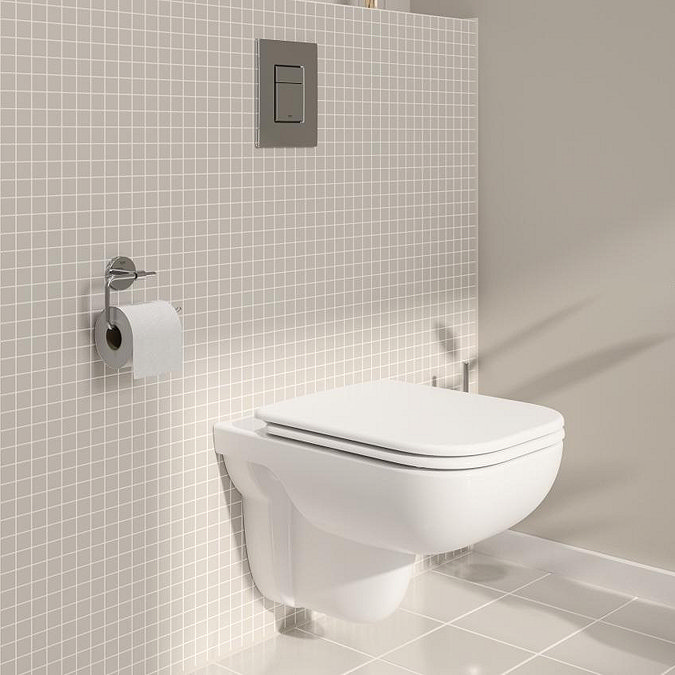

Grohe Solido Compact 5-in-1 WC Pack - 39816000

Grohe Solido Compact 5-in-1 Pack - 39816000

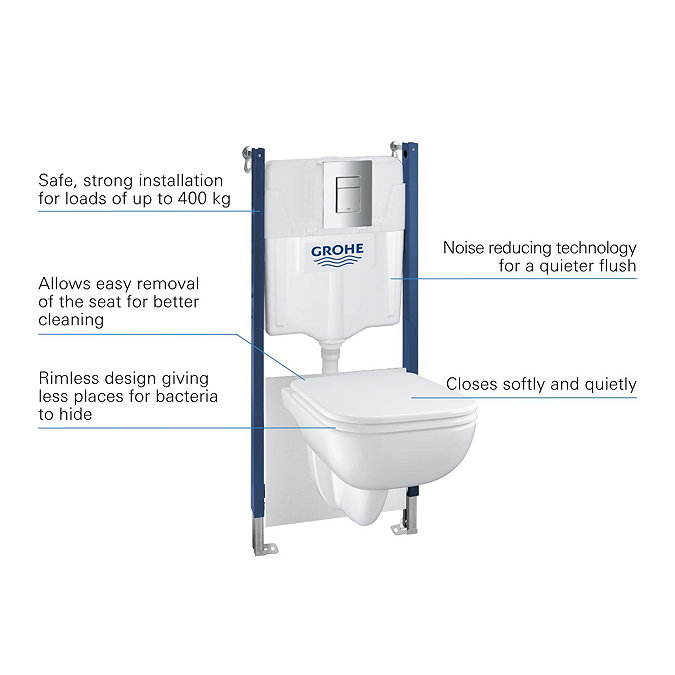

The Grohe Solido Compact 5-in-1 Pack offers a complete solution for a wall mounted toilet and leaves nothing to be desired. It comes complete with the  GROHE Sart Edge Ceramic wall-hung WC and seat, the chic GROHE Even flush plate in gleaming GROHE StarLight chrome finish, wall brackets and noise protection set for extra sound insulation. The WC’s rimless technology gives germs nowhere to hide, making cleaning easy. GROHE Whisper noise control reduces sound transmission caused by flushing to adjoining rooms. The GROHE EcoJoy flush technology reduces your water consumption by up to 50%: The dual flush system allows you to select a flush volume of either 3 or 6 litres and it’s possible to stop a full flush with the small button.

Pan Details:

• Height: 410mm
• Width: 365mm
• Projection: 540mm
• Range: Start Edge Ceramic
• Type: Wall hung WC pan
• Material: Vitreous china
• Colour: White
• Supplied with WC seat with quick release action and soft close feature

Frame Details:

• Height: 1135mm
• Width: 500mm
• Steel frame for dry lining fixed object connections
• Fastening material with quick adjustment and height safety device
• 2 WC holding bolts
• Ceramic fixing Screw spacing 180/230 mm
• Drain elbow Ø 90 mm
• Depth adjustable
• Inlet and outlet
• Cistern GD 2, 6-3l
• Pneumatic drain valve with two functions:
• Set or start & stop
• Water connection from left / right / rear or top Faucet group

Flush Plate Details:

• Width: 156mm
• Height: 197mm
• Depth: 10mm
• Brand: Grohe
• Range: GROHE Even flush plate
• Type: WC Wall Flush Plate
• GROHE StarLight chrome finish
• GROHE EcoJoy technology for less water and perfect flow
• Material: ABS
• For dual flush or start & stop actuation
• For vertical or horizontal installation
• For pneumatic drop valve AV1



Please note:

Guarantee: 5 Year

Images are for illustrative purposes. All measurements are approximate.

Comprises:

Start Edge Ceramic Wall Hung Pan
Start Edge Soft Close Seat
Grohe Even flush Plate Chrome
Solido Frame 1.13m / 3/6L Cistern
