Geberit Rimless 4-in-1 Pack, Frame + Flush Plate + Pan & Soft Close Seat

Geberit Rimless 4-in-1 Pack, Frame + Flush Plate + Pan & Soft Close Seat

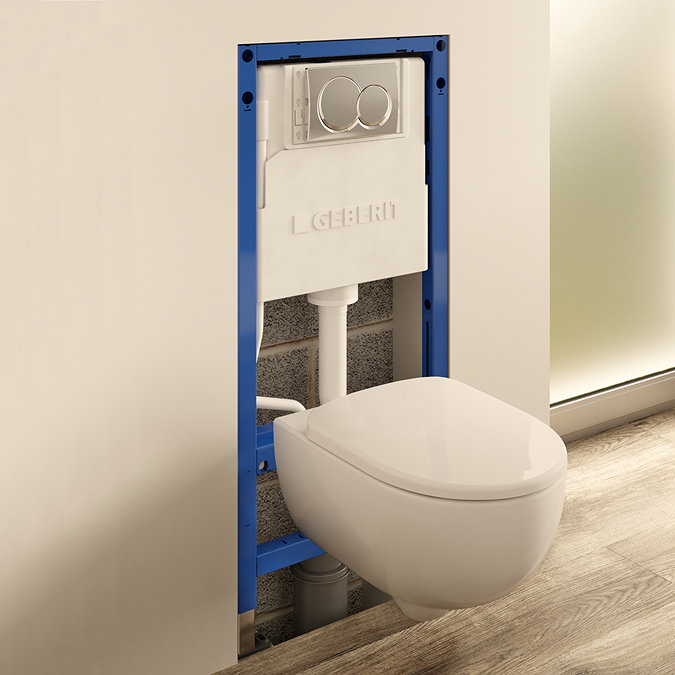

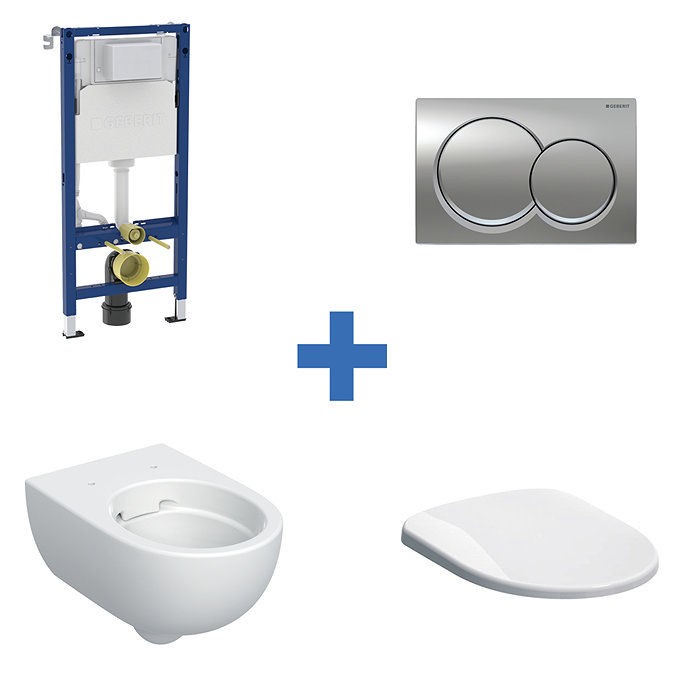

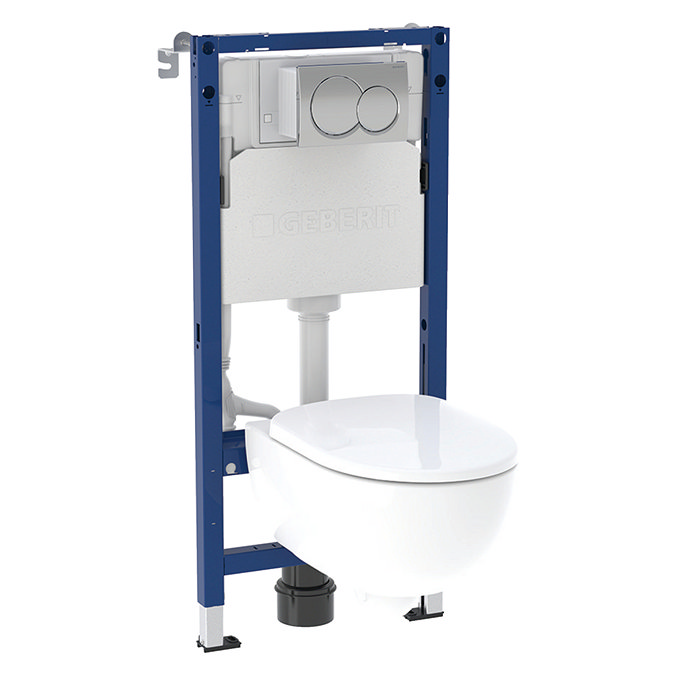

This Geberit wall hung WC bundle pack comprises of Geberit Duofix 112cm Frame with Alpha01 Chrome Flush Plate and Geberit Selnova Rimless Shrouded Wall-Hung Pan & Soft Close Quick Release Seat.

With its modern classic lines, the Geberit Selnova series can be incorporated into any bathroom. Geberit’s simple and discreet design brings functionality to the fore. It comes with a soft close, quick release seat to make cleaning a breeze.

Geberit Rimfree Rimless toilets are equipped with a specially designed, patented flush guide which ensures a targeted and hygienic flush every time. The smooth inner surface of the rimless Rimfree toilet pan is easily cleaned.

Designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution. Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability.

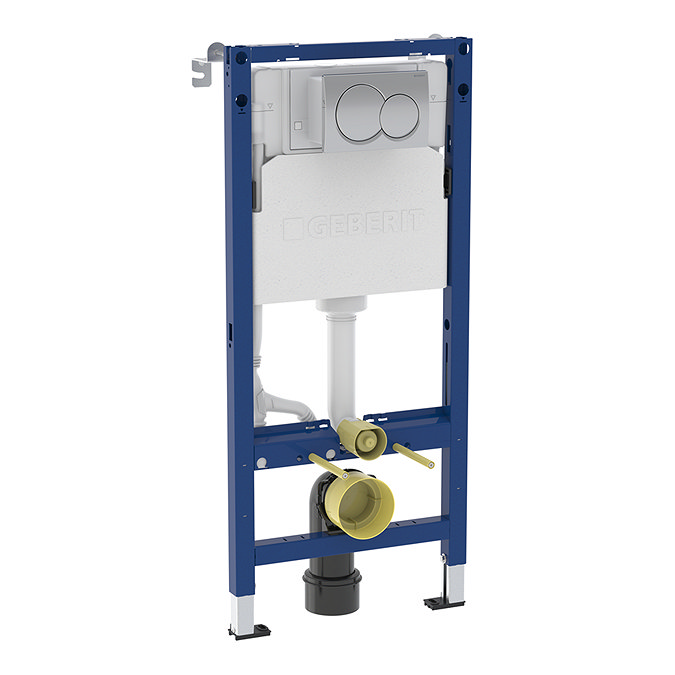

WC Cistern Frame Details

• For metal and wood frame walls
• For installation in part- or room-height prewalls
• For installation in room-height partition walls
• For floor constructions 0–20 cm
• For wall-hung WCs
• 2025 range
• Statically self-supporting frame, protected against corrosion with powder coating
• Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm
• Alternative fastening point for wall anchors
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Galvanised leg supports protected against corrosion
• Connection bend can be mounted without tools
• Geberit Alpha concealed cistern 12 cm fully insulated against condensation
• For front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• Protection box for service opening, can be cut to length, protects against moisture and dirt
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
• Flow pressure 0.1–10 bar
• Operating temperature, water max. 25 °C
• Flush volume, factory setting: 5.8 / 3 l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range 2–4 l
• Button shape: Round
• Product material: Steel
• Chrome Alpha01 flush plate

Wall Hung WC Details

• Colour: White
• Wall Hung
• Material: Vitreous china / Duroplast
• Approvals: Type 1, full flush volume 6 / 5 / 4l, in accordance with EN 997
• Flushes with 4.5l
• Easy fastening with Geberit WC wall fixing type EFF3
• Rimless Rimfree
• Fully shrouded
• Fastening material included
• Soft Close
• Quick Release

25 Year Spare Parts Guarantee
