Geberit Duofix WC Frame 82cm with Alpha Concealed Cistern 12cm

Geberit 820mm Duofix Element for Wall-hung WC with Alpha Concealed Cistern

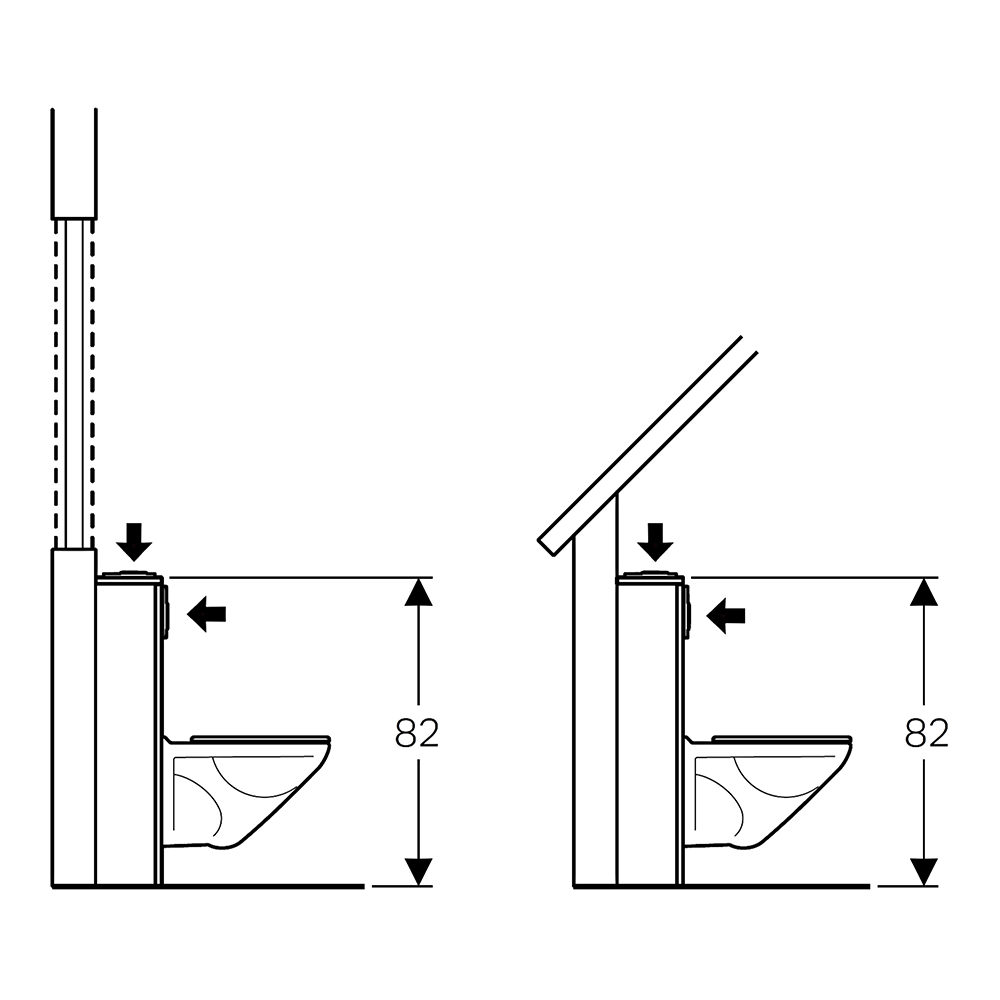

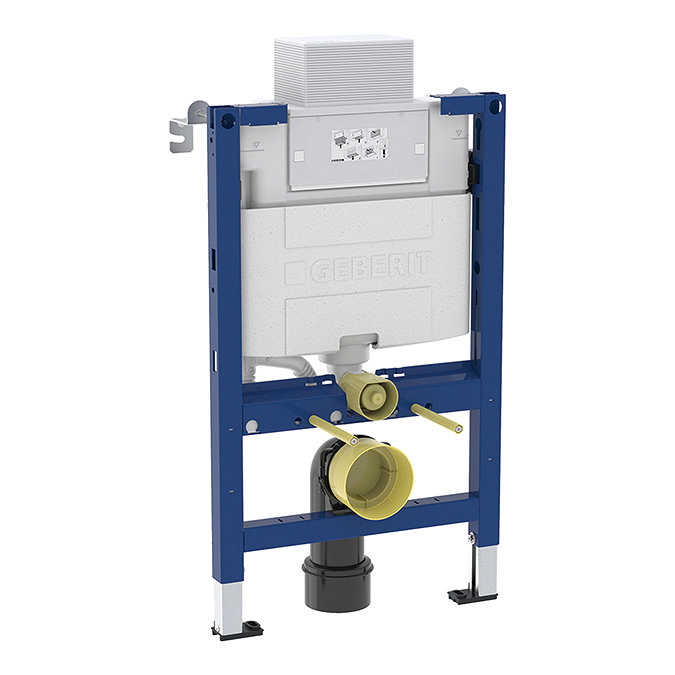

The Geberit 820mm Duofix Element for Wall-hung WC with Alpha Concealed Cisterna self-supporting steel frame is a system designed for installing wall-hung toilets, particularly in situations where space is limited or a discreet look is desired. The 82cm height makes it suitable for installation in part-height prewalls or under windows/sloping ceilings.

Application Purposes

• For metal and wood frame walls
• For installation in part-height prewalls
• For floor constructions 0–20 cm
• For wall-hung wcs

Characteristics

• 2025 range
• Statically self-supporting frame, protected against corrosion
• With powder coating

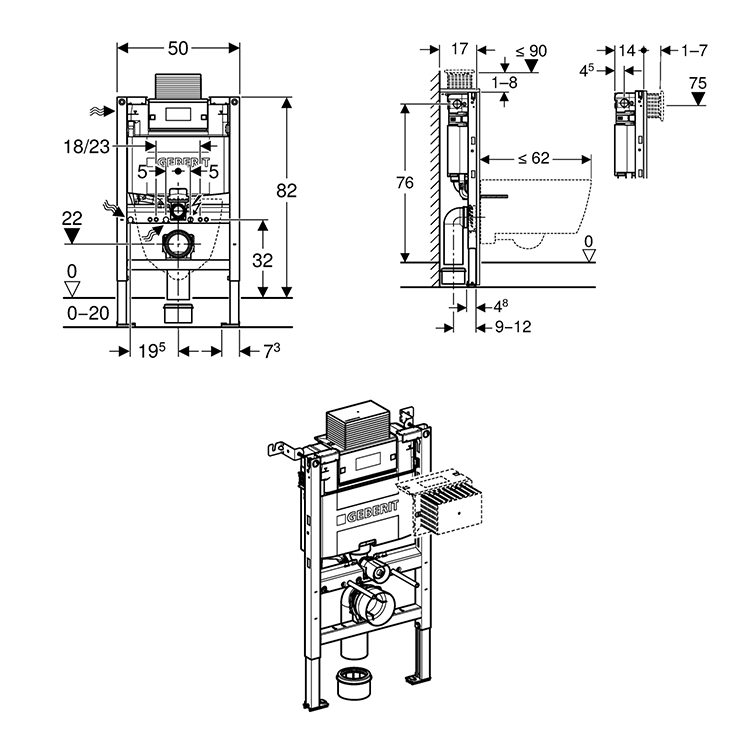

• Frame for wall-hung wcs with connection dimensions as per EN 33 and projection up to 62 cm
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Foot plates made of plastic
• Foot plate depth suitable for installation in u-profiles uw 50
• Galvanised leg supports protected against corrosion
• Connection bend can be mounted without tools
• Geberit alpha concealed cistern 12 cm fully insulated against condensation
• Cistern fulfils standard requirements in accordance with en 14055, class II
• For top or front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Water supply connection on the left
• Protection box for service opening, can be cut to length,
• Protects against moisture and dirt
• With conduit pipe for feed pipe for geberit aquaclean shower
• Toilets and for connection cable
• Fastening option for electrical connection

Technical data

• Flow pressure 0.1–10 bar
• Operating temperature, water
• Max.
• 25 °c
• Flush volume, factory setting 5.8 / 3 l
• Flush volume large, adjustment
• Range
• 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range
