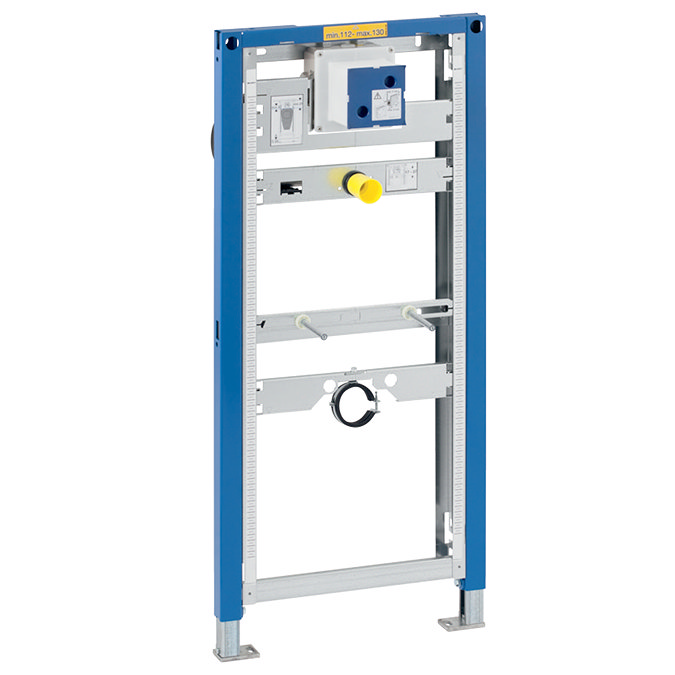

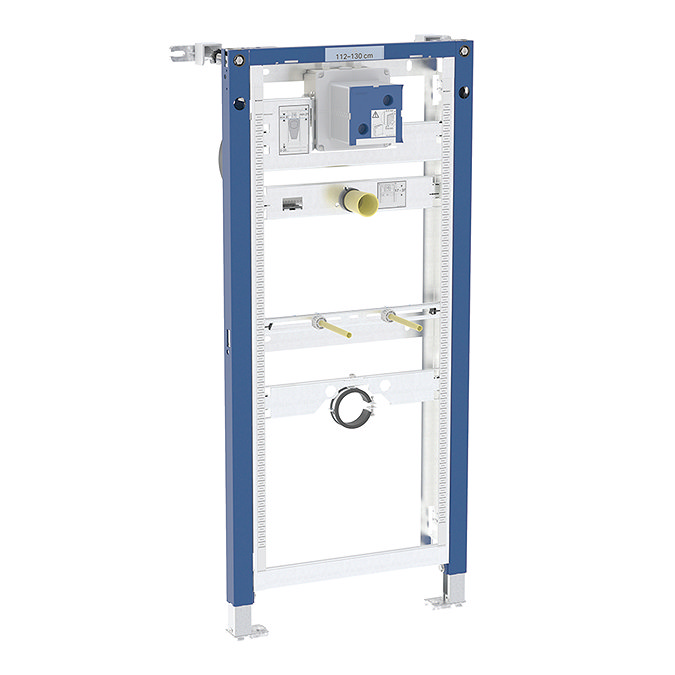

Geberit Duofix Urinal Frame for Tank Fed Water Supply 112–130 cm

Geberit Duofix Urinal Frame for Tank Fed Water Supply 112–130 cm - 111.623.00.2

Geberit Duofix urinal frames include everything necessary for safe, easy installation of the urinal ceramic appliance as well as valves, cisterns and mechanisms. They stand for economical installation and safe, reliable operation with easy service and maintenance.

Product Details

• Brand: Geberit
• Product Code: 111.623.00.2
• Material: Steel
• Finish: Blue
• Width: 500mm
• Height: 1120 - 1300mm
• For mounting urinals
• For drywall construction
• Self-supporting frame, powder-coated
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Leg support zinc-plated, adjustable 0–20 cm
• Non-slip leg supports
• Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails

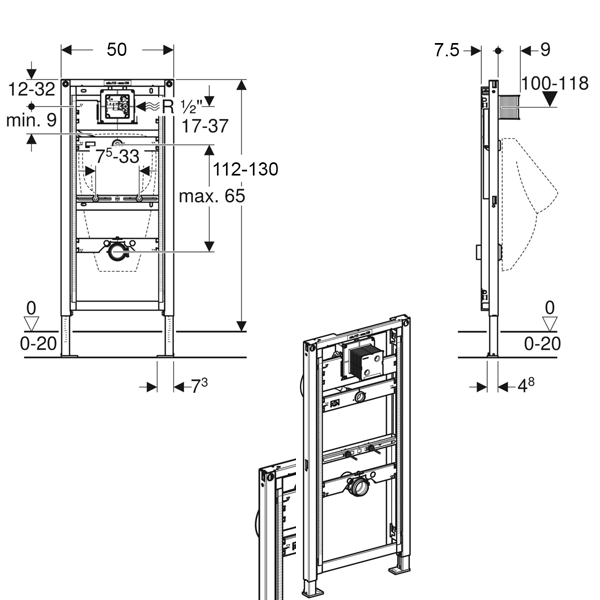

• Element height adjustable to urinal, 112–130 cm
• Universal concealed housing for Geberit urinal flush controls
• Terminal for electrical connection in concealed housing
• Water supply connection at right on concealed housing
• Water supply connection compatible with MeplaFix, can be mounted without tools
• Stop valve with throttle pre-mounted
• With built-in conduit pipe to rinse the pipeline
• Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools
• Flexible flush hose with guide to prevent standing water
• Fastening for inlet ø 32 mm, height-adjustable
• Fastening for connection bend, height-adjustable and sound-absorbing
• Urinal fasteners M8 width- and height-adjustable
• Crossbars with centring marks, adjustable without tools

25 Year guarantee
