Geberit Duofix Basin Frame for Washbasin 112cm

Geberit Duofix Basin Frame for Washbasin 112cm

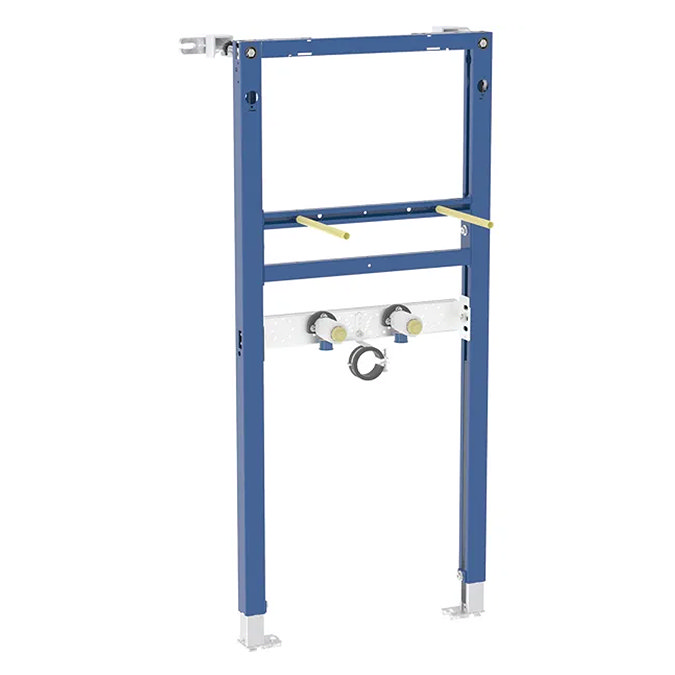

The Geberit Duofix Basin Frame for Washbasin 112cm is a robust, self-supporting installation element designed for drywall construction and prewall installations, ideal for deck-mounted taps. Crafted from corrosion-resistant powder-coated steel, it features adjustable galvanised feet with non-slip supports, rotatable foot plates compatible with UW profiles, and a height- and depth-adjustable crossbar for tap positioning. The frame accommodates washbasins with a fastening distance of 5–38cm and includes sound-absorbing, height-adjustable connections. Supplied with wall anchors, angle stop valves, elbow tap connectors, sealing washers, protection plugs, threaded rods, and fastening material, it ensures secure and efficient installation for modern bathroom setups.

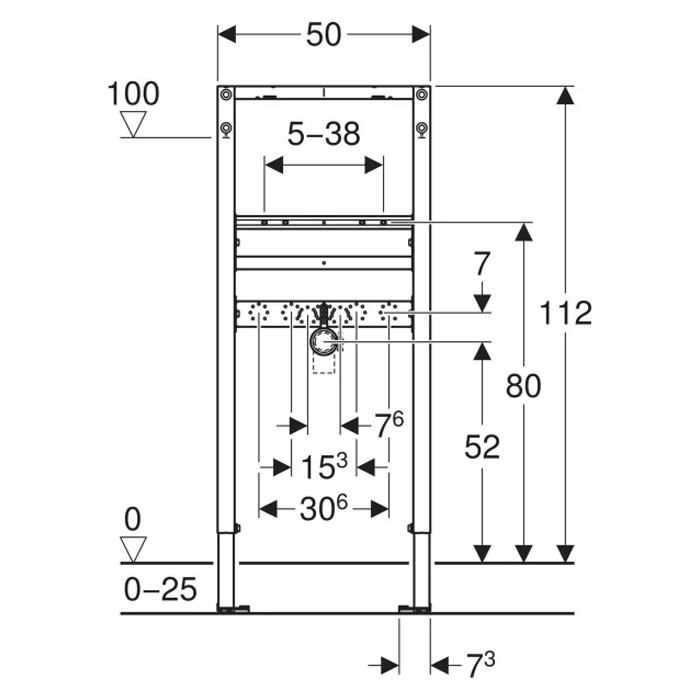

Technical Data

• Height: 1120mm
• Width: 500mm
• Depth: 64mm
• Material: Steel

Application Purposes

• For metal and wood frame walls
• For Geberit Duofix system walls
• For installation in part- or room-height prewalls
• For installation in room-height partition walls
• For floor constructions 0–25 cm
• For installation of washbasins
• For deck-mounted taps

Characteristics

• Statically self-supporting frame, protected against corrosion with powder coating
• With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
• Alternative fastening point for wall anchors
• Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
• Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
• Galvanised non-slip leg supports protected against corrosion
• Fastening distance for washbasin 5–38 cm
• Threaded rods adjustable in depth with 18 or 28 cm fastening distance
• Crossbar for tap adjustable in height and depth
• Self-adhesive sealing washer, fleece-laminated
• Protection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa

Comprises

• 2 wall anchors
• 2 angle stop valves 1/2"
• 2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF
• 2 sealing washers
• Fastening and protection material

Please note that all measurements are approximate, and images are for illustrative purposes only

10 Year Guarantee
