Arezzo Dual Flush Concealed WC Cistern with Wall Hung Frame + Toilet
Dual Flush Concealed WC Cistern with Wall Hung Frame + Arezzo Toilet
Dual Flush Concealed WC Cistern with Wall Hung Frame + Arezzo Toilet
Arezzo Dual Flush Concealed WC Cistern with Wall Hung Frame + Toilet

Arezzo Dual Flush Concealed WC Cistern with Wall Hung Frame + Toilet

Part No.: AZWNPF

£349.95

|

In Stock

Spare Parts Available for This Item

Overview

Arezzo Dual Flush Concealed WC Cistern with Wall Hung Frame, Wall Hung Toilet and Soft Close Seat

Projecting a mere 535mm from the wall, this elegant Dual Flush Concealed Cistern and Toilet from Arezzo is ideal for compact spaces. It has a clever and contemporary design that tucks the pipework neatly out of sight. This wall hung toilet has a sleek look and the clear space beneath makes it easy to keep clean, too. Its gently curved shell is made from hardwearing vitreous china and there's a soft close toilet seat that won't slam shut. Keen on being kind to the environment? This toilet has a dual flush function that will help you save on water.

WC Cistern Frame Details

  • Height: 1078-1438mm (Approx.)
  • Width: 415mm
  • Depth: 170-200mm
  • Full flush: 6-7.5L, Half flush: 2.5-4L
  • Fill valve pressure: 0.2-16 bar
  • Metal frame support weight: 400KG
  • Designed to provide stable support for wall-hung WC pans
  • Built-in or plasterboard wall installation
  • Dual flush cistern

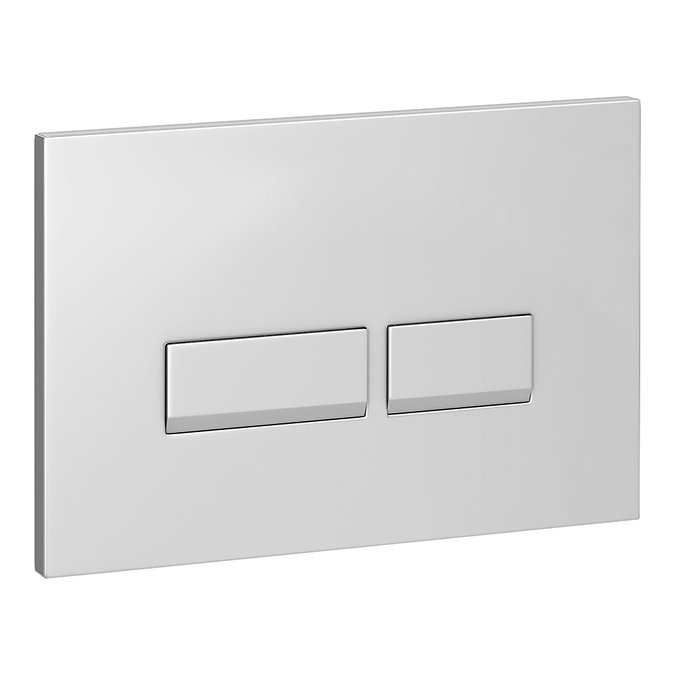

  • Flush plate size: 242 x 160mm
  • Flush plate thickness: 10mm
  • Flush plate colour: Polished Chrome
  • Flush plate material: Manufactured from high impact, tough ABS
  • Button shape: Square
  • Style: Modern
  • Water saving dual-flush valve
  • Insulated against condensation and reduces noise from water tank
  • Durable moulded tank
  • Easy access for maintenance
  • Hassle-free installation
  • Made from durable high-quality materials
  • Adjustable height and depth
  • Sleek and minimalist design.
  • Designed to be compatible with a wide range of wall hung pans
  • Seamless integration: The fixing frame is designed to seamlessly integrate with your wall hung pan, creating a clean and streamlined look in your bathroom.
  • Includes brackets and WC bend
  • Guarantee: 5 Years for tank and 2 Years for fill valve and flush valve

Cistern

  • Tested in accordance with EN 14055
    UKCA Marked
    ISO9001:2015 Registered Manufacturer

Wall Hung Pan Details

  • Width: 365mm
  • Depth: 535mm
  • Height: 360mm
  • Style: Modern
  • Shape: Round
  • Colour/Finish: Gloss white
  • Type: Wall Hung
  • Pan Material: Ceramic
  • Bowl Shape: Compact Round
  • Flushing System: Rimless
  • Horizontal waste outlet
  • Easy to clean seat with quick release mechanism
  • Soft close chrome hinges prevent seat from slamming
  • Designed for use with a concealed cistern frame (not included)
  • Includes wall hung pan fixing kit
  • Supplied with wrap over soft close top fixing quick release seat

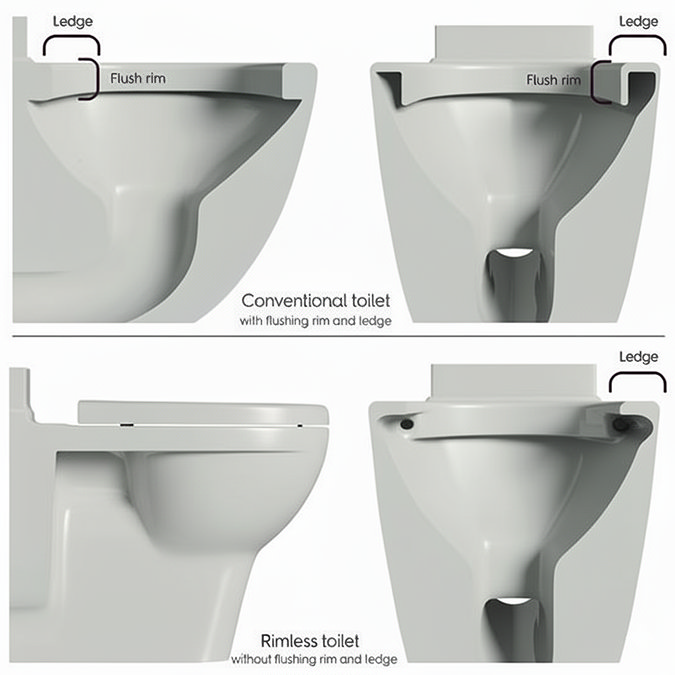

  • Rimless Pan: The rimless design eliminates the traditional rim around the toilet bowl, making it easier to clean and maintain hygiene.
  • Tested in accordance with BS EN 997:2018
    UKCA / CE Marked
    ISO9001:2015 Registered Manufacturer


Guarantee: 5 Year (seat guaranteed for 1 year)

All measurements are approximate

Product images are for illustrative purposes only.

Comprises


(1) Wall Hung Pan
(1) D-Shape Soft Close Urea Seat + Cover
(1) Dual Flush Concealed WC Cistern with Wall Hung Frame

Product Overview

Dual Flush Concealed WC Cistern with Wall Hung Frame + Arezzo Toilet
Dual Flush Concealed WC Cistern with Wall Hung Frame + Arezzo Toilet
Arezzo Dual Flush Concealed WC Cistern with Wall Hung Frame + Toilet
Arezzo Dual Flush Concealed WC Cistern with Wall Hung Frame + Toilet

15 Questions

Wall frame adjustable?

Asked by Michelle

ANSWER

Technical Team. replied on 3rd November 2021

Hi Michele, Yes the wall frame kit is adjustable through 245mm. Thanks. Technical Team.

Hi, as per another question - it is not clear whether the flush plate is matt chrome or polished chrome - please advise.

Asked by Richard

ANSWER

Technical Team. replied on 27th October 2021

Hi, The finish is a highly polished chrome finish. Thanks. Technical Team.

Which flush plates are compatible with this kit?

Asked by MB

ANSWER

Technical Team. replied on 27th October 2021

Hi, If you contact a member of our customer services team on our live chat they will happily advise you. Thanks. Technical Team.

Can flush plate AZBLKPB replace the current one which comes with this frame?

Asked by MichelleJ

ANSWER

Technical Team. replied on 8th November 2021

Hi, The flush plate you have chosen Is designed to work with XTY005 Dual Flush Concealed WC Cistern with Wall Hung Frames (Not Included). Thanks. Technical Team.

Is the flush plate matt? Is it available in polished chrome?

Asked by Maz

ANSWER

Technical Team. replied on 14th September 2021

Hi Marian, Unfortunately this is the only chrome version we carry of this type & brand. Thanks. Technical Team.

Can you get a straight pipe for this?

Asked by Guy

ANSWER

Technical Team. replied on 21st June 2021

Hi Guy, We do a kit for concealed installations, this kit has extended straight pipes, the part number is FPKIT-3. Thanks. Technical Team.

Can I get a white flush plate for this

Asked by Deb

ANSWER

Nathan replied on 4th June 2021

Hi Deb, Thank you for your question. Unfortunately, we do not currently offer any white flush plates which are suitable for this frame. My apologies Kind Regards.

Can this set be bought with the black flush plate?

Asked by sophie

ANSWER

Nathan replied on 29th March 2021

Hello, Thank you for your question. Yes, we do offer this frame with a black plate: /arezzo-matt-black-dual-flush-concealed-wc-cistern-with-wall-hung-frame?searchText=Dual%20Flush%20Concealed%20WC%20Cistern%20with%20Wall%20Hung%20Frame You would also need a pan with the frame. Kind Regards.

Alternative flush plate compatibility

Asked by Ann

ANSWER

Nathan replied on 29th March 2021

Hello, Thank you for your question. Unfortunately, the plate you have linked would not work on this item. We do offer a black flush plate for this item, but these are the only two options. /arezzo-matt-black-dual-flush-plate Kind Regards.

Can this be used with / connected to a saniplus macerator unit?

Asked by Simon

ANSWER

Nathan replied on 29th March 2021

Hello, Thank you for your question. I do not believe this would be possible. There would be no way to fit a macerator within the frame. Kind Regards.
