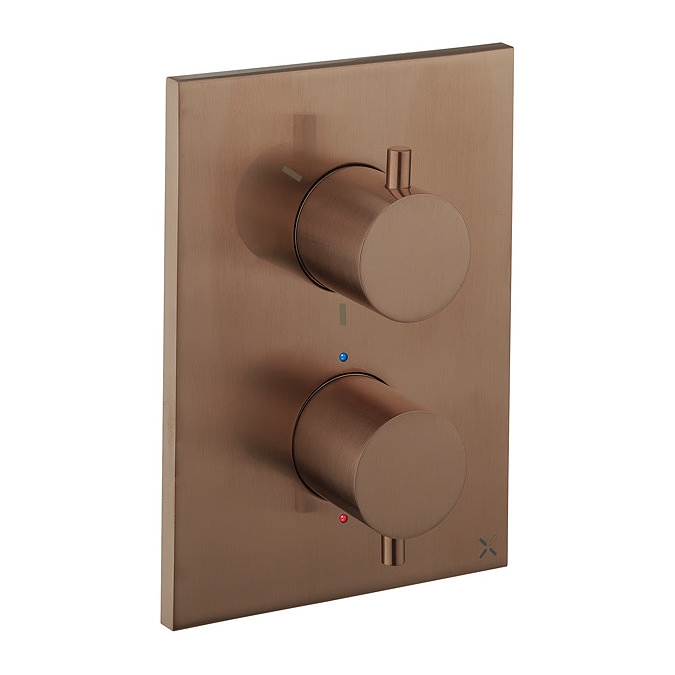

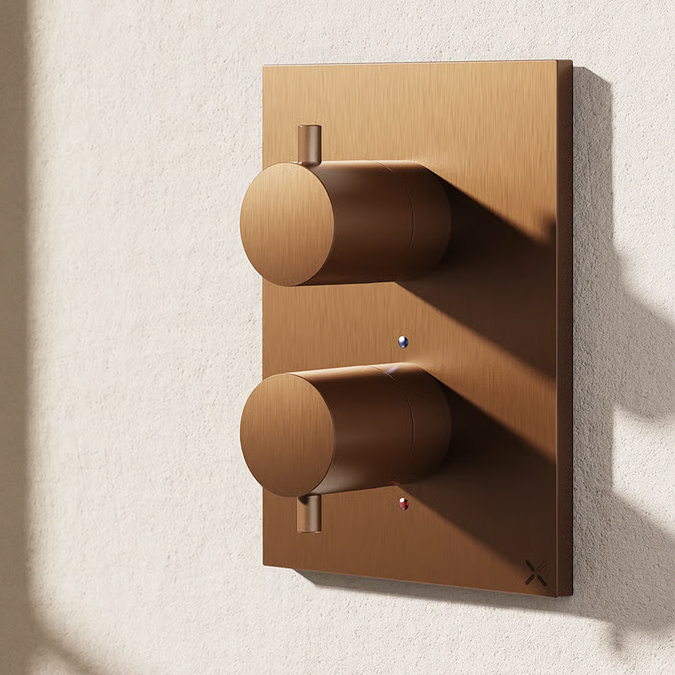

Crosswater MPRO Crossbox 3 Outlet Shower Valve & Trimset - Brushed Bronze

Crosswater MPRO Crossbox 3 Outlet Shower Valve & Trimset - Brushed Bronze

Create a clean and streamlined showering space with this MPRO Crossbox concealed shower valve and trimset from Crosswater. Its slim rectangular backplate and circular controls create a minimalist contemporary appearance, while the concealed installation keeps the main valve and pipework neatly hidden behind the wall.

Designed for three-outlet shower systems, the valve provides intuitive control of water flow and temperature, with an integrated diverter allowing easy switching between outlets. The included Crossbox universal rough-in system is designed to simplify installation and servicing, while integrated noise reduction helps minimise sound transmission to adjoining rooms.

Key Features

• 3 Outlet Shower Control: Designed to operate three separate shower outlets from a single concealed valve.
• Integrated Diverter: Allows convenient switching between the connected shower outlets.
• Crossbox Concealed System: Includes Crosswater's universal rough-in valve for a neat concealed installation and easier servicing.
• Noise-Reducing Design: Helps minimise operational sound transfer through adjoining walls.
• Future-Ready Trim System: Compatible trimsets can be updated while retaining the concealed Crossbox valve where appropriate.
• Low Pressure Compatible: Suitable for systems operating from a minimum pressure of 0.5 bar.
• KIWA Approved: Crossbox carries KIWA approval number 2501751.
• 15-Year Guarantee: Both the trimset and Crossbox are covered for 15 years, subject to the manufacturer's terms.

Specifications

• Brand: Crosswater
• Colour: Brushed Bronze

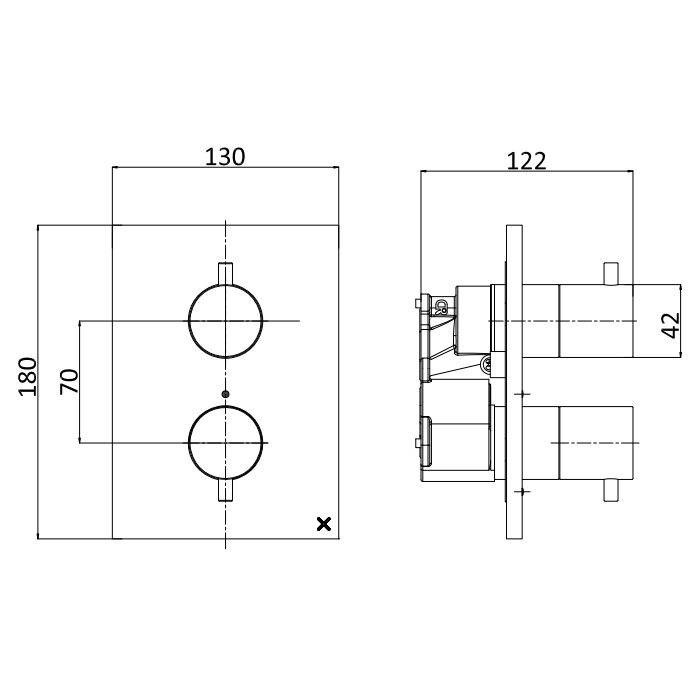

• Trimset Width: 130mm
• Trimset Height: 180mm
• Trimset Projection: 122mm

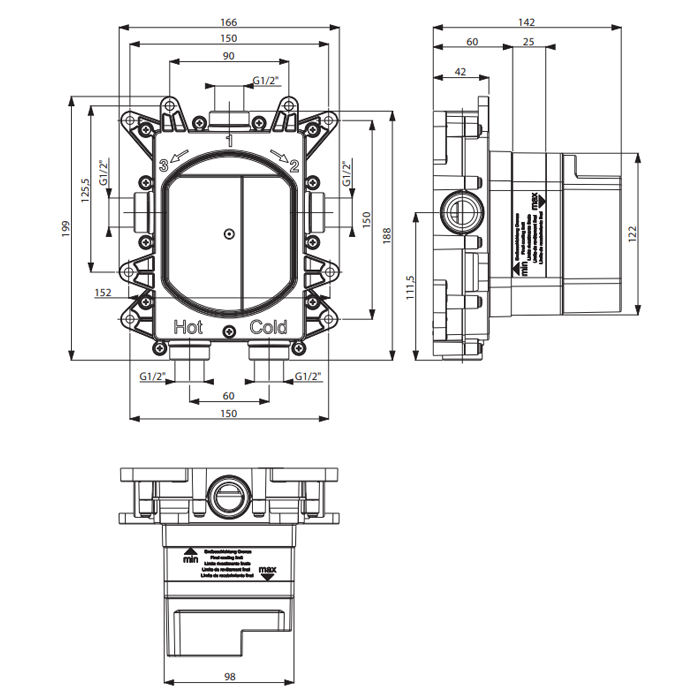

• Crossbox Width: 166mm
• Crossbox Height: 199mm
• Primary Material: Brass
• Installation Type: Wall mounted / concealed
• Number of Outlets: 3
• Crossbox Inlet Connections: G1/2"
• Crossbox Outlet Connections: G1/2"
• Minimum Pressure: 0.5 bar
• Maximum Working Pressure: 5 bar

Please note that all measurements are approximate, and images are for illustrative purposes only

15 Year Guarantee
