Crosswater MPRO Crossbox 2 Outlet Shower Valve & Trimset - Brushed Nickel

Crosswater MPRO Crossbox 2 Outlet Shower Valve & Trimset - Brushed Nickel

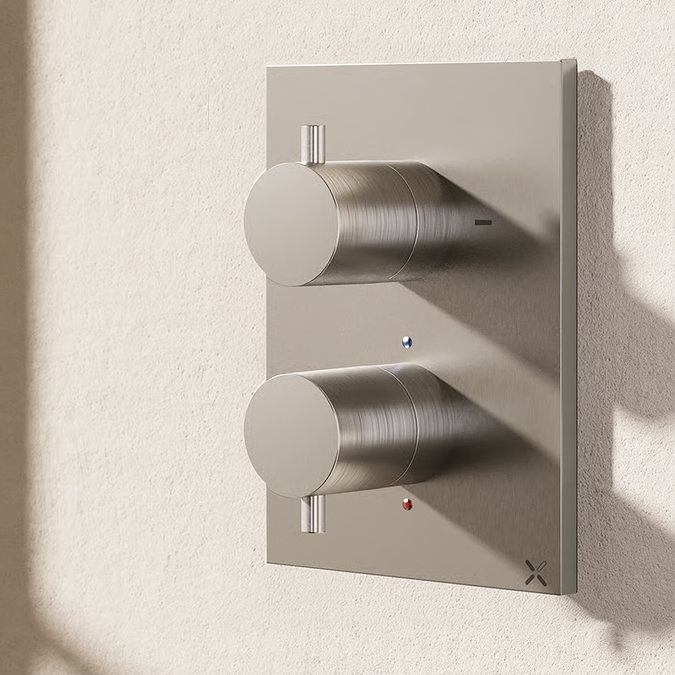

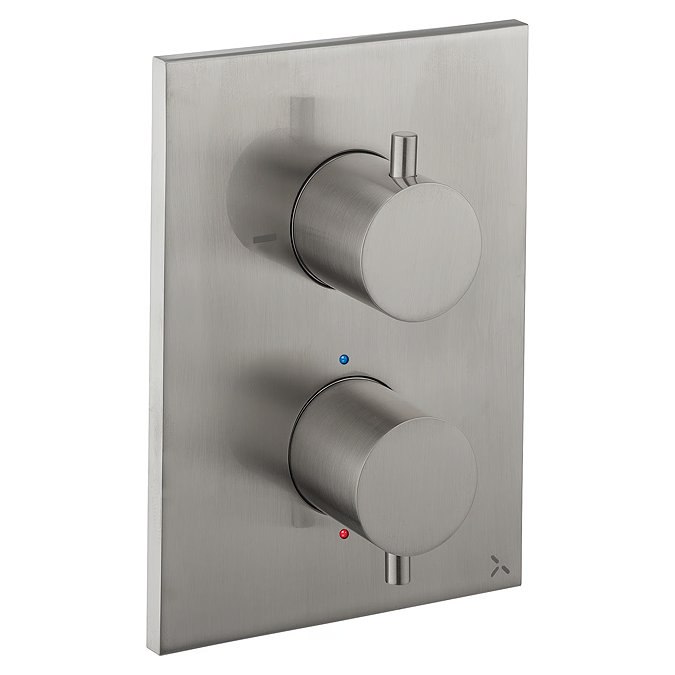

Create a clean and streamlined showering space with this MPRO Crossbox concealed shower valve and trimset from Crosswater. The slim rectangular backplate is paired with circular controls for a minimalist contemporary appearance, while the concealed installation keeps the main valve and plumbing neatly hidden behind the wall.

Designed for two-outlet shower systems, the valve provides control over water flow and temperature with an integrated diverter for switching between two shower functions. The included Crossbox universal rough-in system is engineered for straightforward installation and future servicing, with noise-reducing construction helping to limit sound transmission through adjoining walls.

Key Features

• 2 Outlet Shower Control: Designed to operate two separate shower outlets from a single concealed valve.
• 2 Shower Functions: Integrated diverter allows convenient switching between the connected outlets.
• Crossbox Concealed System: Includes Crosswater's universal rough-in valve for a neat concealed installation.
• Separate Flow and Temperature Control: Provides intuitive adjustment of the showering experience.
• Noise-Reducing Design: Crossbox construction helps reduce the transfer of operational noise to adjoining rooms.
• Future-Ready Trim System: Allows a compatible trimset to be changed in the future while retaining the concealed valve where appropriate.
• Brass Construction: Durable primary material provides reliable everyday performance.
• Low Pressure Compatible: Suitable for systems operating from a minimum pressure of 0.5 bar.
• KIWA Approved Crossbox: Universal rough-in carries approval number KIWA 2501751.
• 15-Year Guarantee: Both the trimset and Crossbox are covered for 15 years, subject to the manufacturer's terms.

Specifications

• Brand: Crosswater
• Colour: Brushed Nickel

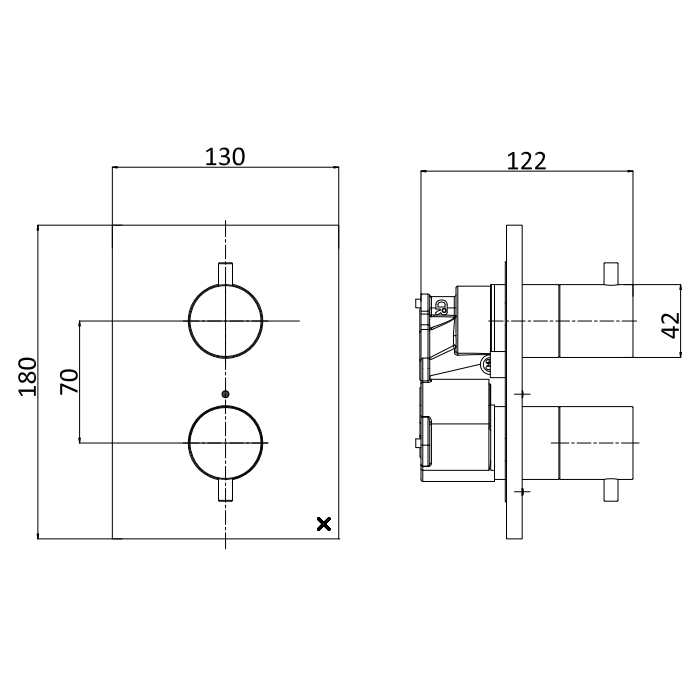

• Trimset Width: 130mm
• Trimset Height: 180mm
• Trimset Projection: 122mm

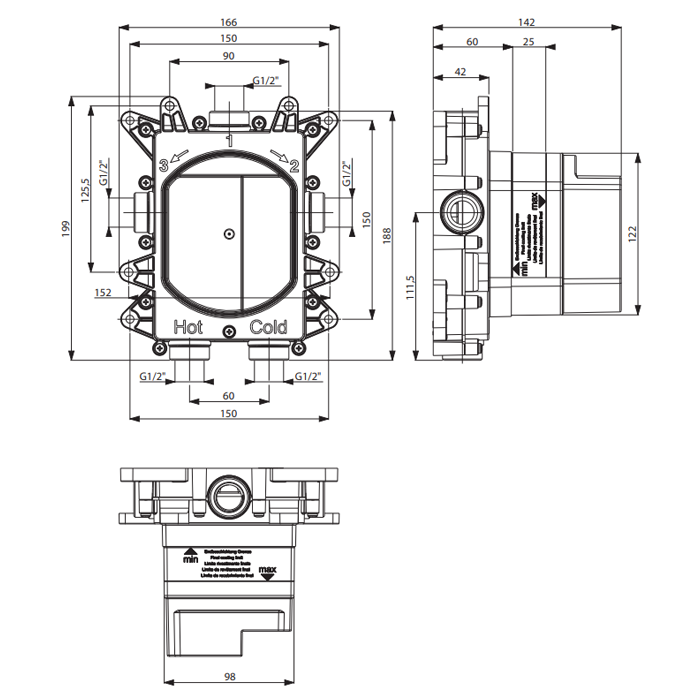

• Crossbox Width: 166mm
• Crossbox Height: 199mm
• Primary Material: Brass
• Installation Type: Wall mounted / concealed
• Number of Outlets: 2
• Crossbox Inlet Connections: G1/2"
• Crossbox Outlet Connections: G1/2"
• Minimum Pressure: 0.5 bar
• Maximum Working Pressure: 5 bar

Please note that all measurements are approximate, and images are for illustrative purposes only

15 Year Guarantee
