Dimensions
Coram - Universal Walk In Shower Tray with Upstands & Waste
Part No:YDW15WHI
Discontinued
Product Information
Coram - Universal Walk In Shower Tray with Upstands & Waste - YDW15WHI

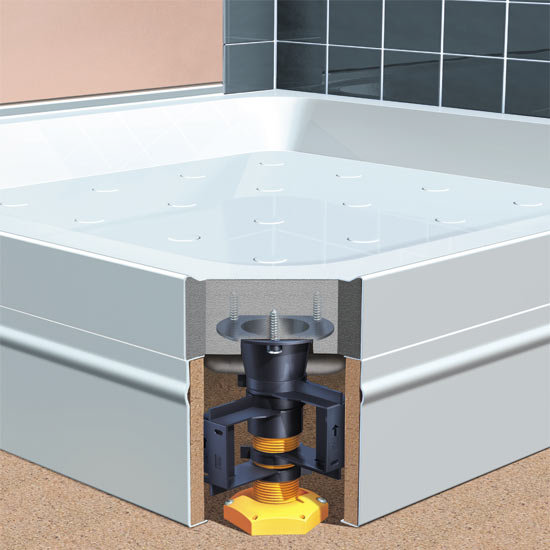

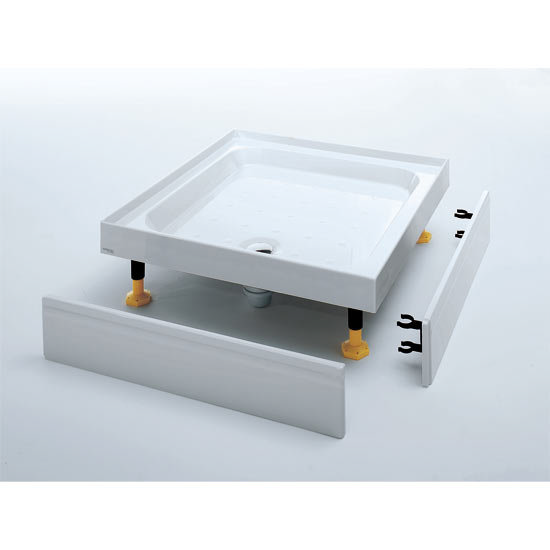

The Walk In tray from Coram is supplied with factory fitted legs. You simply screw in the hexagonal feet, which can then be simply adjusted by hand to level the tray and the angled screw holes make the feet easy to fix in position. Unlike many other trays, which have flimsy plastic panels that are difficult to cut, Coram’s rigid panels are easy to trim to size. The panels are attached with specially designed push-on spring clips that are screw fixed to the back of the panels. These provide the fastest and neatest installation that is far superior to other designs of showertray, which have unsightly corner joints and flimsy, poorly fitting plastic panels that need to be fixed with sealant.
The height of the tray can be reduced by up to 30mm by using a trap with a 19mm water seal, fully winding in the legs and trimming the side panels. This tray features a pimpled main surface area, this is to provide an improved anti-slip surface.
Product Details
The Walk In tray from Coram is supplied with factory fitted legs. You simply screw in the hexagonal feet, which can then be simply adjusted by hand to level the tray and the angled screw holes make the feet easy to fix in position. Unlike many other trays, which have flimsy plastic panels that are difficult to cut, Coram’s rigid panels are easy to trim to size. The panels are attached with specially designed push-on spring clips that are screw fixed to the back of the panels. These provide the fastest and neatest installation that is far superior to other designs of showertray, which have unsightly corner joints and flimsy, poorly fitting plastic panels that need to be fixed with sealant.
The height of the tray can be reduced by up to 30mm by using a trap with a 19mm water seal, fully winding in the legs and trimming the side panels. This tray features a pimpled main surface area, this is to provide an improved anti-slip surface.
Product Details

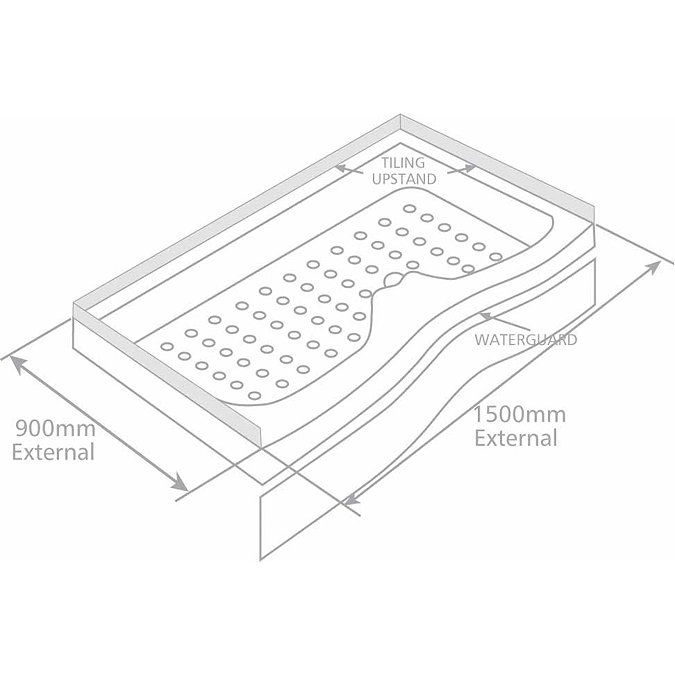

- Dimensions - 1500 x 900mm
- Tray Height to Rim - 185mm
- Designed to be used in conjunction with the Coram Tube Curved walk in enclosure
- Floor to top of upstand - 215mm
- Material - Resin
- Finish - White
- 1 1/2" (50mm) Chrome Waste Included
- British Manufactured
- Easy Installation
- Pimpled tray - for improved anti-slip
