Carlton Traditional Double Ended Roll Top Bathroom Suite

Carlton Traditional Double Ended Free Standing Roll Top Bath Suite

The Carlton Traditional Bath Suite combines timeless classical style with modern manufacturing standards, delivering an elegant period look for any home.

Package Overview:

Luxury double ended free standing roll top bath
Four piece Carlton pottery set: two tap hole basin, full pedestal, close coupled cistern and pan
Soft Close Quick Release white wooden toilet seat (MDF)
Ceramic cistern lever handle
Bath available in 1695mm or 1795mm sizes.

Toilet:

• Dimensions: W470 × D730 × H820mm
• Material: Vitreous China, gloss white finish
• Includes cistern fittings and ceramic lever handle
• Supplied with Soft Close Quick Release white wooden seat
• Bottom left water inlet
• Guarantee: 5 years (seat 1 year)

Basin with Pedestal:

• Dimensions: W560 × D450 × H905mm
• Material: Vitreous China, gloss white finish
• Two tap holes, overflow, and chain stay hole
• Includes full pedestal
• Guarantee: 5 years

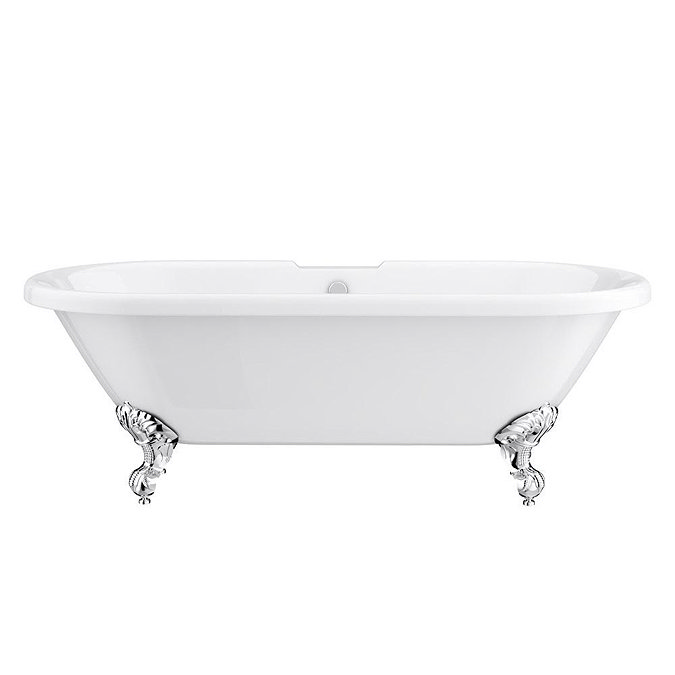

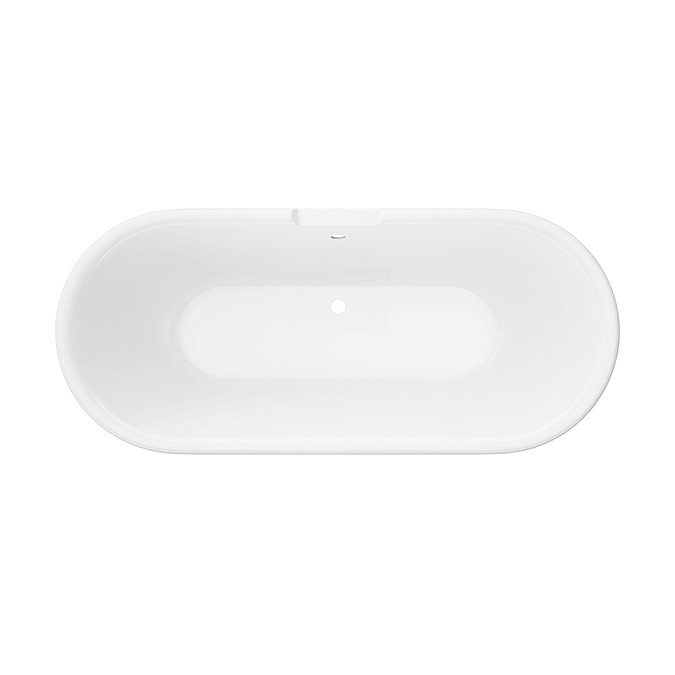

Roll Top Bath with Chrome Feet:

• Dimensions: L1695/1795 × W755/785 × H620mm
• Type: Double ended bath with tap ledge

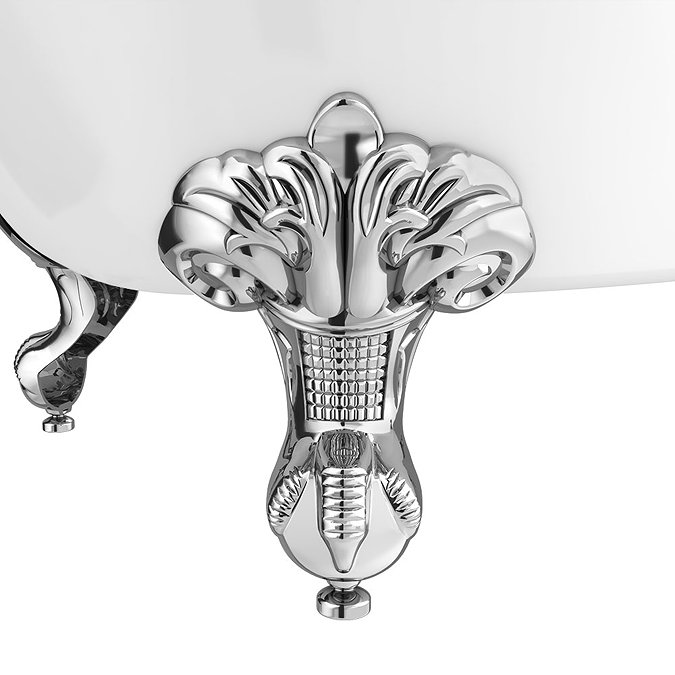

• Foot style: Chrome ball & claw
• Material: Twin skinned acrylic with fiberglass resin reinforcement; chrome plated alloy feet
• Tap holes: 0 (to be drilled by customer)
• Capacity: 173L / 185L (to overflow)
• Finish: White gloss bath, polished chrome feet
• Adjustable legs for uneven floors
• Approx. thickness: 11mm (compression during forming process)
• Guarantee: Bath 5 years, feet 1 year

Note:

Image for illustration only.
Taps and wastes not included.
All measurements approximate; allow ±5mm tolerance.

Package Contents:

Carlton cistern with fittings – NCS881A
Carlton close coupled pan – NCS880A
Carlton 560mm medium two tap hole basin – NCS884
Carlton full pedestal – NCS883
Luxury double ended free standing roll top bath
Set of traditional ball & claw chrome feet
Wooden Soft Close Quick Release gloss white toilet seat
Ceramic cistern lever handle
