Caldo Pro Electric Underfloor Heating Kit with WiFi Timerstat (White)

Caldo Pro Electric Underfloor Heating Kit with Programmable WiFi Timerstat Bundle (White) Various Sizes

Upgrade your home with the Caldo Pro Electric Underfloor Heating Kit and Smart WiFi Timerstat. This easy-to-install bundle provides even, efficient heating under almost any hard floor covering.

The ultra-thin mats feature pre-spaced cables on a high-tack adhesive mesh for a fast, secure fit. Simply connect the smart thermostat to your home WiFi and use the companion app to schedule your heating—giving you complete temperature control from anywhere while keeping your energy bills in check.

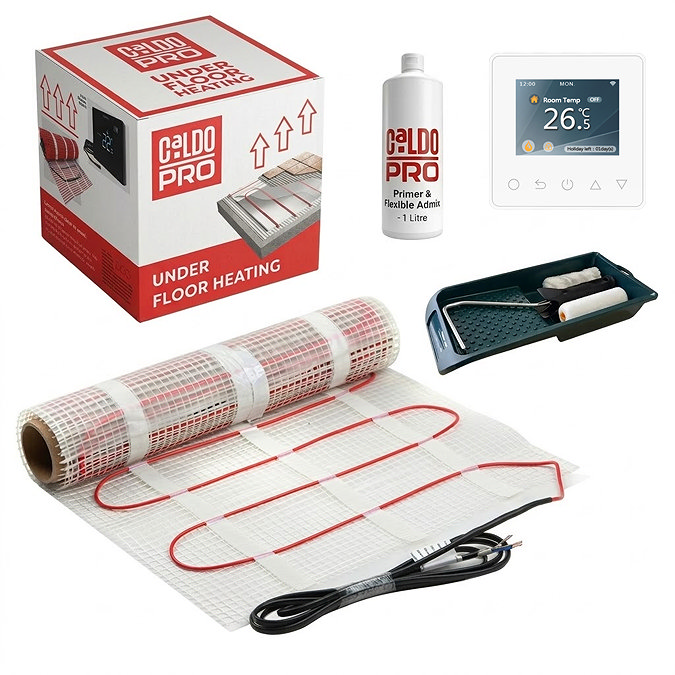

What’s Included in Your Bundle?

Everything you need for a fast and efficient preparation is included in one convenient package:

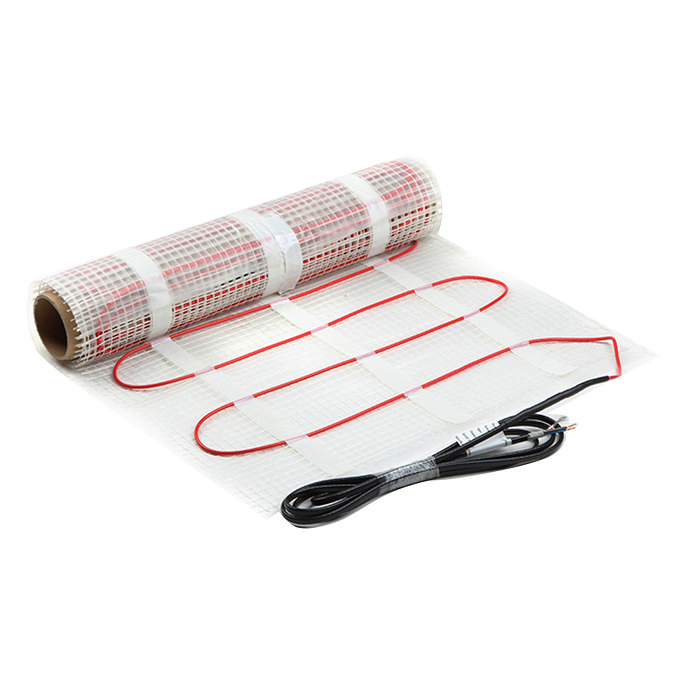

• Caldo Underfloor Heating Sticky Mat: 500mm wide nylon mesh with factory pre-set cable spacing and high-tack adhesive tapes for accurate, fast positioning. (Select your required sqm size from the menu).
• Programmable WiFi Thermostat (White): A smart digital timerstat to control your heating via touch screen or your smartphone.

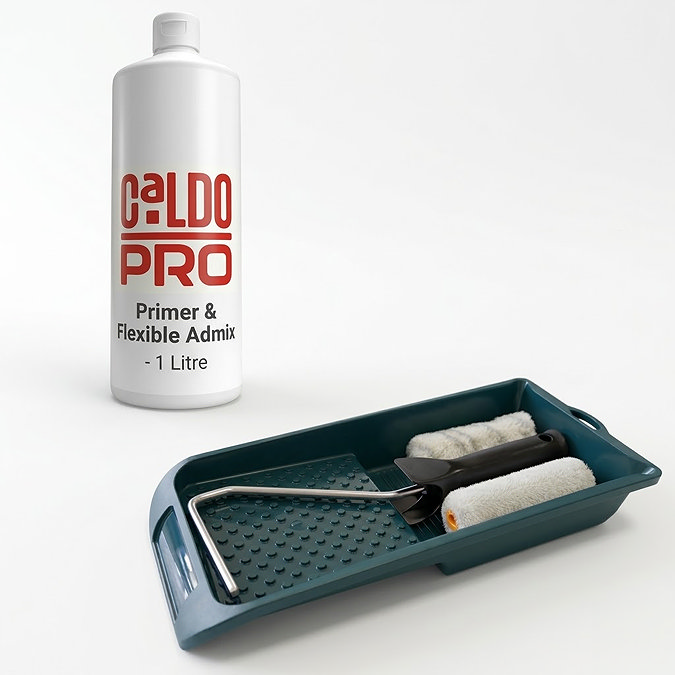

• 1 Litre Sub-Floor Primer: High-performance primer to properly prepare and seal your floor surface.
• 100mm Roller Kit: The perfect tool for a quick and even application of the floor primer.

Key Benefits & Features:

• Smart App Control: Connects instantly to your home WiFi. Control your electric heating system remotely via the smartphone app - perfect for ensuring your home is warm just in time for your arrival.
• Ultra-Thin & Unobtrusive: The heating cables are exceptionally thin (just 3mm in diameter), allowing you to install them with minimal impact on your floor height.
• Customisable Fit: The matting can be easily cut to navigate around fixed obstacles like units, pillars, or kitchen islands (Note: Only cut the mesh, never the heating element).
• Energy Efficient: The programmable timerstat ensures you only use energy when you need it, giving you total control over when the heating comes on, goes off, and exactly what temperature you want the floor to be.
• Built to Last: Manufactured to the highest safety and quality standards, and backed by a Lifetime Guarantee for ultimate peace of mind.

Smart WiFi Thermostat Features:

Your kit includes an essential, feature-packed digital thermostat designed to optimise energy use:

• Dimensions: W86 x H86 x D42mm (Sits a subtle 16mm off the wall)
• Design: Contemporary White finish with Touch Key Control.
• Weekly Program Mode: Set customized schedules that automatically adapt to your routine.
• Holiday & Hold Modes: Save energy while you are away from home.
• Lock Key Function: Prevents accidental changes (ideal for households with children).

Technical Specifications:

• Heating Mat & Cable Details:
• Heat Output: 150W/m² (0.65 amps/m²) – Ideal for providing even, comfortable heat.
• Wire Thickness: 3mm inner core / 3.6mm outer diameter.
• Cable Construction: Twin conductor, twin wire, and earth screened.
• Outer Insulation: Ultra-Tough PVC & Nylon.
• Conductor Insulation: Premium Fluoropolymer.
• Cable Spacing: 112mm / 80mm / 80mm.
• Rated Voltage: 230V.
• Cold Lead: 2-wire plus ground braid (2.5m length).
• Temperature Limits: Max Ambient Temp: 300°C (850°F) | Min Insulation Temp: 50°C (400°F).

Installation Guide & Advice:

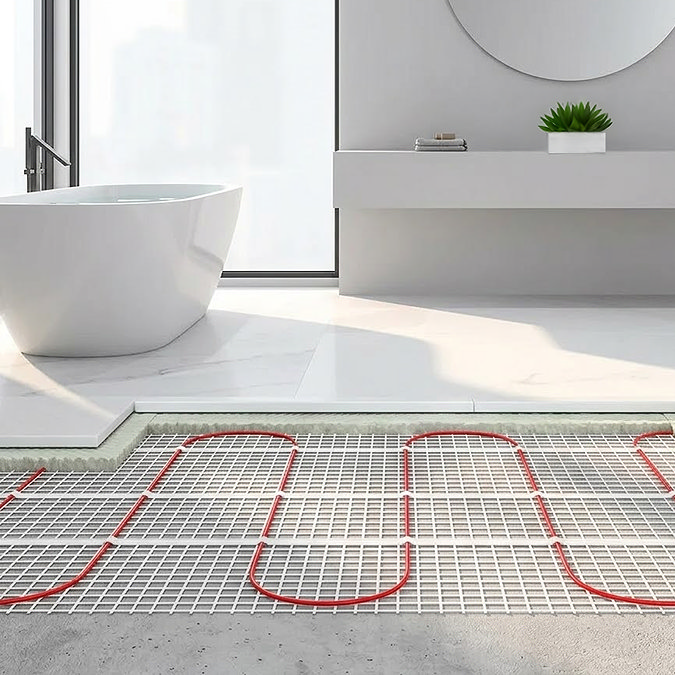

• Versatile Use: Suitable for use directly under tiled floors and almost any other hard floor covering. (We always recommend checking with your specific flooring manufacturer for compatibility first).
• Easy Positioning: The built-in high-tack adhesive tapes make it incredibly easy to roll out and secure the mat to the floor prior to tiling.
• Important Warning: Mats cannot be installed directly beneath wooden floors without the appropriate sub-layers or levelling compounds.
• Professional Installation: While the mat is DIY-friendly to lay out, we highly recommend using a professional, qualified electrician to complete the final thermostat and mains electrical connections.

(Please note: Product images are for illustrative purposes only and may differ slightly from the actual product.)
