Caldo Pro Electric Underfloor Heating Kit with Programmable Timerstat (Black)

Caldo Pro Electric Underfloor Heating Kit with Programmable Timerstat Bundle (Black) Various Sizes

Upgrade your home with the Caldo Pro Underfloor Heating Kit. This comprehensive, easy-to-install bundle provides even, efficient heating under almost any hard floor covering, controlled by a sleek, intuitive digital programmable thermostat. This non-WiFi model is perfect for users who prefer simple, reliable, on-device control without the need for app connectivity.

The ultra-thin mats feature pre-spaced cables on a high-tack adhesive mesh for a fast, secure fit. The included digital timerstat allows you to schedule your heating directly on the device, ensuring your floors are warm exactly when you need them while keeping your energy bills in check.

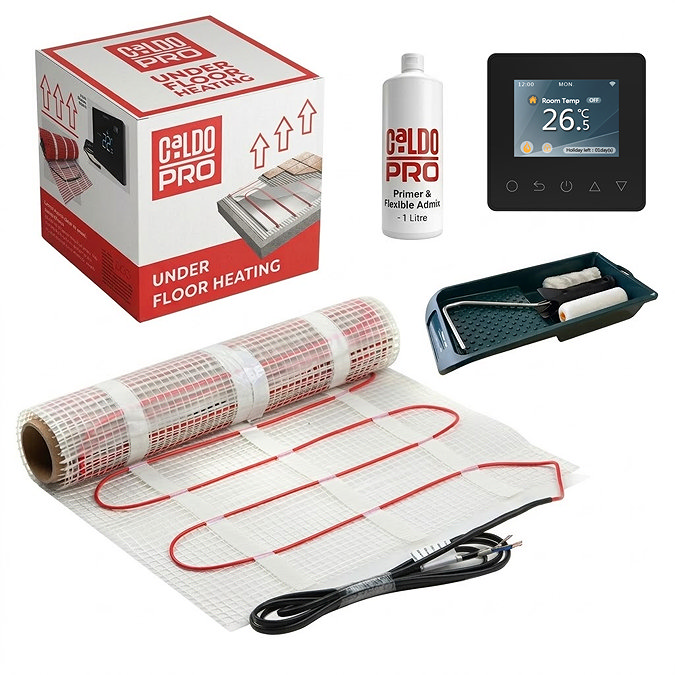

What’s Included in Your Bundle?

Everything you need for a smooth installation is included:

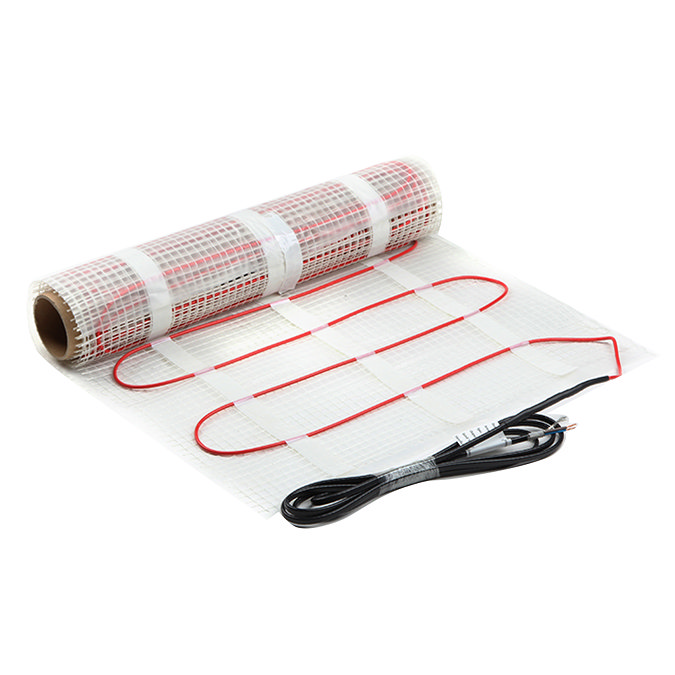

• Caldo Underfloor Heating Sticky Mat: 500mm wide nylon mesh with factory-set cable spacing and high‑tack adhesive for secure, accurate placement. (Select your required m² size from the menu.)
• Programmable Digital Thermostat (Black): A contemporary touch-screen timerstat to manage your heating schedules manually with precision.

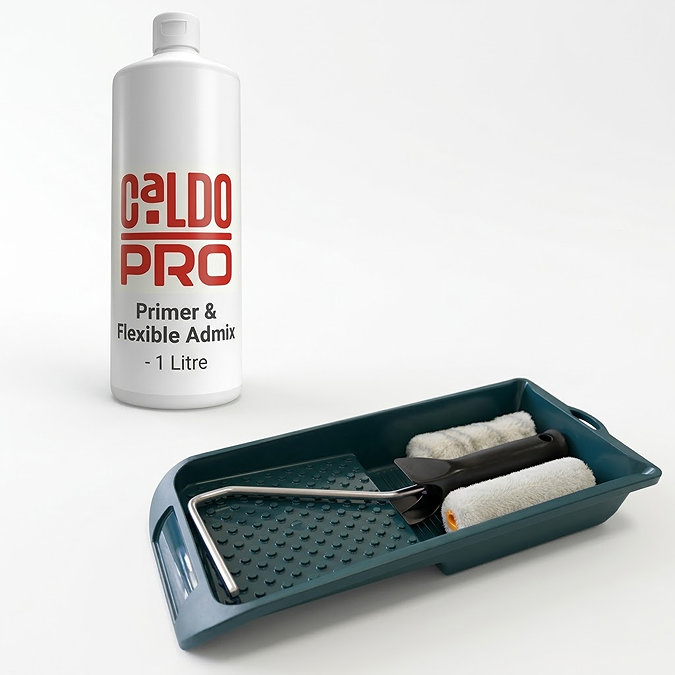

• 1 Litre Sub-Floor Primer: High-performance primer for preparing and sealing the floor surface.
• 100mm Roller Kit : Ensures quick, even application of the primer.

Key Benefits & Features:

• Precise Manual Control: The programmable timerstat ensures you only use energy when you need it. Set exactly when the heating comes on, goes off, and your preferred floor temperature.
• Ultra-Thin & Unobtrusive: The heating cables are exceptionally thin (just 3mm in diameter), allowing you to install them with minimal impact on your floor height.
• Customisable Fit: The matting can be easily cut to navigate around fixed obstacles like units, pillars, or kitchen islands (Note: Only cut the mesh, never the heating element).
• Energy Efficient: The programmable timerstat ensures you only use energy when you need it, giving you total control over when the heating comes on, goes off, and exactly what temperature you want the floor to be.
• Built to Last: Manufactured to the highest safety and quality standards, and backed by a Lifetime Guarantee for ultimate peace of mind.

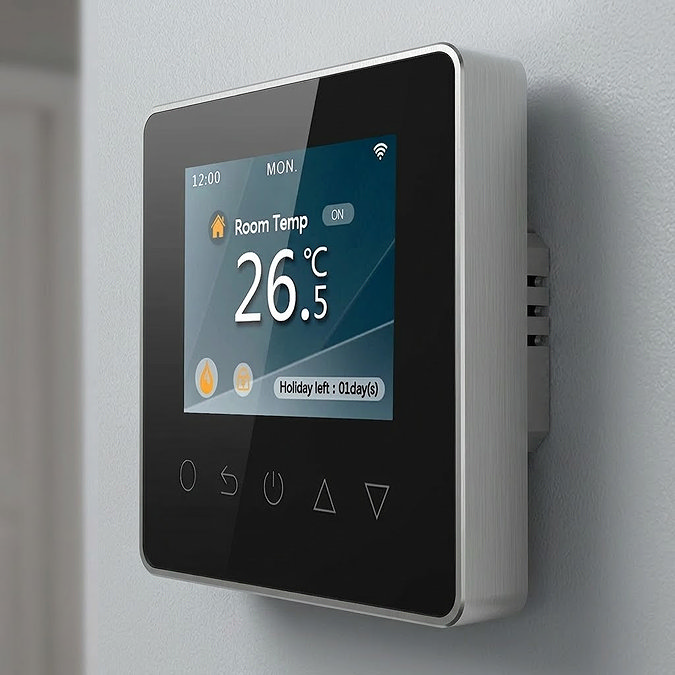

Digital Programmable Thermostat Features:

Your kit includes a feature-packed digital thermostat designed to optimise energy use without the need for an internet connection:

• Dimensions: W86 x H86 x D42mm (Sits a subtle 16mm off the wall).
• Design: Contemporary Black finish with Touch Key Control.
• Weekly Program Mode: Set customized daily schedules that automatically adapt to your routine.
• Holiday & Hold Modes: Easily override your schedule or save energy while you are away.
• Lock Key Function: Prevents accidental setting changes (ideal for households with children).

Technical Specifications:

• Heating Mat & Cable Details:
• Heat Output: 150W/m² (0.65 amps/m²) – Ideal for providing even, comfortable heat.
• Wire Thickness: 3mm inner core / 3.6mm outer diameter.
• Cable Construction: Twin conductor, twin wire, and earth screened.
• Outer Insulation: Ultra-Tough PVC & Nylon.
• Conductor Insulation: Premium Fluoropolymer.
• Cable Spacing: 112mm / 80mm / 80mm.
• Rated Voltage: 230V.
• Cold Lead: 2-wire plus ground braid (2.5m length).
• Temperature Limits: Max Ambient Temp: 300°C (850°F) | Min Insulation Temp: 50°C (400°F).

Installation Guide & Advice:

• Versatile Use: Suitable for use directly under tiled floors and almost any other hard floor covering. (We always recommend checking with your specific flooring manufacturer for compatibility first).
• Easy Positioning: The built-in high-tack adhesive tapes make it incredibly easy to roll out and secure the mat to the floor prior to tiling.
• Important Warning: Mats cannot be installed directly beneath wooden floors without the appropriate sub-layers or levelling compounds.
• Professional Installation: While the mat is DIY-friendly to lay out, we highly recommend using a professional, qualified electrician to complete the final thermostat and mains electrical connections.

(Please note: Product images are for illustrative purposes only and may differ slightly from the actual product.)
