Burlington Claremont Angled Deck Mounted Bath/Shower Mixer
Part No:CL19
Discontinued
Product Information

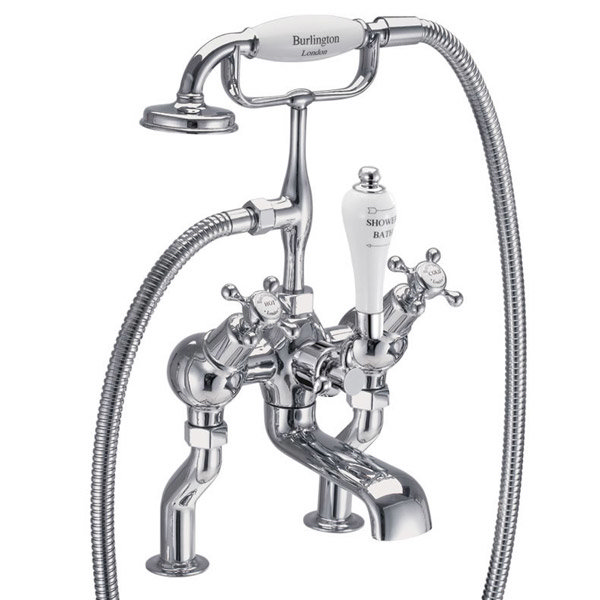

Burlington Claremont Angled Deck Mounted Bath/Shower Mixer - CL19
The Claremont range has a traditional design, manufactured to the highest standards using the latest technology. This product features the tap heads tilted or "angled", it is a deck mounted bath/shower mixer.Product comes with a Decorative Swan Necked Adjuster for Showerhead with option for High or Low Level Display (High Level Pictured in main image).
Product Details
Compliance / Approvals
BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.7 11.6 14.3 15.6
Handset 3.56 4.19 7.06 11.36 15.55
The Claremont range has a traditional design, manufactured to the highest standards using the latest technology. This product features the tap heads tilted or "angled", it is a deck mounted bath/shower mixer.Product comes with a Decorative Swan Necked Adjuster for Showerhead with option for High or Low Level Display (High Level Pictured in main image).
Product Details
- Material - Brass
- Finish - Chrome
- 15 Year Guarantee
- Supplied with flow straighter - this is for use with low water pressure
- Supplied with neoperl aerator - this is for use with high water pressure
Compliance / Approvals
BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.7 11.6 14.3 15.6
Handset 3.56 4.19 7.06 11.36 15.55
No reviews about this product yet
How We Gather Reviews
2 Questions
Can this tap be used with your bath legs?
Asked by Inasvensson
ANSWER
Louise replied on 4th October 2013
Yes these can be used with bath legs such as these - /burlington-decorative-bath-pipe-shrouds-w6
Can this bath shower mix be fitted onto bath legs
Asked by inasvensson
ANSWER
Louise replied on 11th September 2013
Yes these can be fitted along with either Burlington W6 or W7 both tap shrouds can be found by entering these short codes into our search bar next to our logo
Showing 2 of 2 questions
