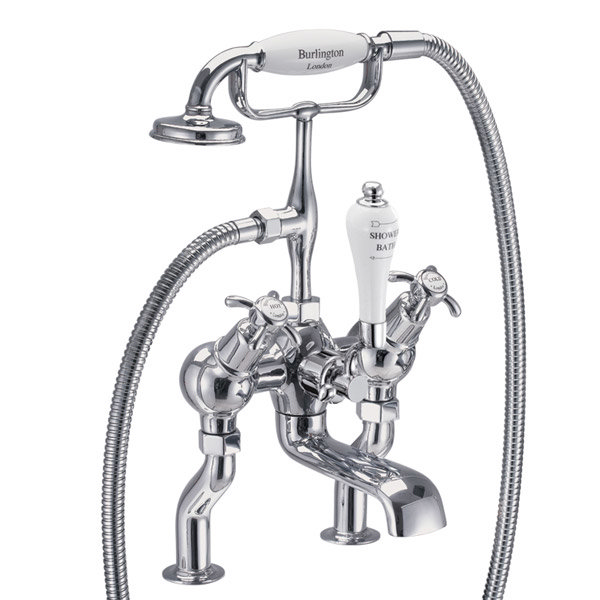

Burlington - Anglesey Angled Deck Mounted Bath/Shower Mixer
Part No:AN19
Discontinued
Product Information
Burlington - Anglesey Angled Deck Mounted Bath/Shower Mixer - AN19
The Anglesey range has a traditional design, manufactured to the highest standards using the latest technology. This product features the tap heads tilted or "angled", it is a deck mounted bath/shower mixer. Product comes with a Decorative Swan Necked Adjuster for Showerhead with option for High or Low Level Display (High Level Pictured in main image).
Product Details
Compliance / Approvals
BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.7 11.6 14.3 15.6
Handset 3.56 4.19 7.06 11.36 15.55
The Anglesey range has a traditional design, manufactured to the highest standards using the latest technology. This product features the tap heads tilted or "angled", it is a deck mounted bath/shower mixer. Product comes with a Decorative Swan Necked Adjuster for Showerhead with option for High or Low Level Display (High Level Pictured in main image).
Product Details
- Material - Brass
- Finish - Chrome
- 15 Year Guarantee
- Supplied with flow straighter - this is for use with low water pressure
- Supplied with neoperl aerator - this is for use with high water pressure
Compliance / Approvals
BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.7 11.6 14.3 15.6
Handset 3.56 4.19 7.06 11.36 15.55
