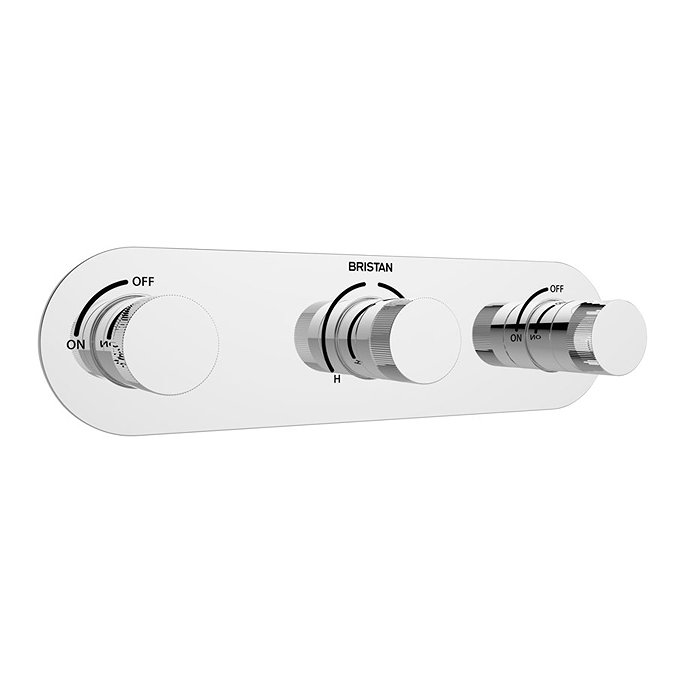

Bristan - Tria Thermostatic Recessed Dual Control Three Handle Shower Valve with Integral Twin Stopcocks
Part No:TRI-SHC3STP-C
Discontinued
Product Information
Bristan - Tria Thermostatic Recessed Dual Control Three Handle Shower Valve with Integral Twin Stopcocks - TRI-SHC3STP-C
The Tria shower valve range from Bristan features a stylish knob control design and a slimline faceplate. This Tria Thermostatic Recessed Dual Control Shower Valve is suitable for all plumbing systems, requiring an operating pressure between 0.2 bar and 5.0 bar and comes with three controls that regulate the temperature and flow separately.
Product Details
Flow Rates
0.1 Bar - (Outlet 1) 2.8 l/m (Outlet 2) 2.6 l/m
0.2 Bar - (Outlet 1) 7.7 l/m (Outlet 2) 7.3 l/m
0.5 Bar - (Outlet 1) 14.2 l/m (Outlet 2) 14 l/m
1.0 Bar - (Outlet 1) 20.7 l/m (Outlet 2) 20.8 l/m
The Tria shower valve range from Bristan features a stylish knob control design and a slimline faceplate. This Tria Thermostatic Recessed Dual Control Shower Valve is suitable for all plumbing systems, requiring an operating pressure between 0.2 bar and 5.0 bar and comes with three controls that regulate the temperature and flow separately.
Product Details
- Brand - Bristan
- Finishes - Chrome
- Product Type - Contemporary
- Construction - Body is of brass construction and is designed to conform to BS EN 200
- Valve Type - Ceramic disc valve
- Supply - Suitable for all plumbing conditions, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature.
- Inlet Connections - 15mm Compression connections
- Water Pressure - Working pressures 0.2-5.0 Bar
- Maximum Static Pressure - 10 Bar
- Chrome plated to BS EN 248
- Suitable for cavities between 58-75mm
- Minimum cold water supply temperature is 5oc
- Maximum hot water supply temperature is 80oc
- Flow rate at 0.2 Bar (open outlet without flow regulators) is 9 l/min from stopcock. 12.9l/min from both outlet together
- Requires rear access to service the filters
- Cartridge can be accessed from the front
Flow Rates
0.1 Bar - (Outlet 1) 2.8 l/m (Outlet 2) 2.6 l/m
0.2 Bar - (Outlet 1) 7.7 l/m (Outlet 2) 7.3 l/m
0.5 Bar - (Outlet 1) 14.2 l/m (Outlet 2) 14 l/m
1.0 Bar - (Outlet 1) 20.7 l/m (Outlet 2) 20.8 l/m
