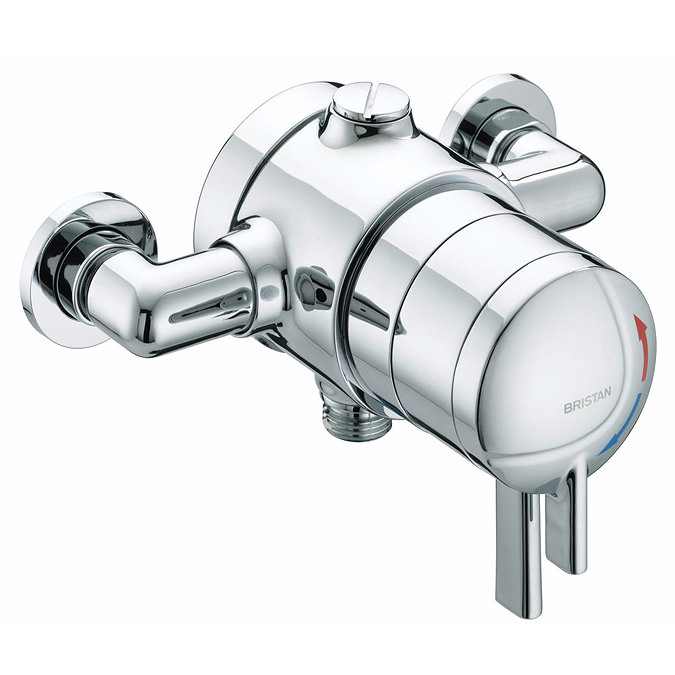

Bristan - Stratus Thermostatic Dual Control Exposed Shower Valve with Chrome Levers
Part No:STR-TS1875-EDC-C
Discontinued
Product Information
Bristan - Stratus Thermostatic Dual Control Exposed Shower Valve with Chrome Levers - STR-TS1875-EDC-C
From the Bristan Commercial range, the Stratus Thermostatic Dual Control Exposed Shower Valve with Chrome Levers is a dual controlled valve which has separate controls for the temperature and flow. It features an automatic thermostatic shut-off in the event of hot or cold water failure and an anti-vandal stainless steel concealing plate. TMV3 and WRAS approved.
Product Details
WRAS: Certificate Nº: 0707014
TMV3: Certificate Nº: BC213/1107
12 Months manufacturers guarantee
From the Bristan Commercial range, the Stratus Thermostatic Dual Control Exposed Shower Valve with Chrome Levers is a dual controlled valve which has separate controls for the temperature and flow. It features an automatic thermostatic shut-off in the event of hot or cold water failure and an anti-vandal stainless steel concealing plate. TMV3 and WRAS approved.
Product Details
- Product Code: STR TS1875 EDC C
- Finish: Chrome Plated
- Product Type: Commercial
- Construction: Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) & BS EN 1287:1999 (LP)
- Valve Type: Thermostatic Cartridge
- Supply: Suitable for all plumbing systems (Preferably balanced)
- Inlet Connections: 15mm compression elbows
- Outlet Connections: ½” BSP
- Working Pressures: Min 0.2bar, Max 8.0bar. Maximum Static Pressure: 10.0 bar
- Dimensions for Fitting: 148-158mm inlet centres
- Separate control for temperature & flow.
- Anti-vandal stainless steel concealing plate
- Automatic thermostatic shut-off in the event of hot or cold water failure.
- Check valves and serviceable filters as standard
- Adjustable inlet centres between 148-158mm.
- Chrome plated to BS EN 248.
WRAS: Certificate Nº: 0707014
TMV3: Certificate Nº: BC213/1107
12 Months manufacturers guarantee
