Bristan - Qube Concealed Dual Control Thermostatic Shower Valve w/ Diverter
Part No:QU-SHCDIV-C
Discontinued
Product Information

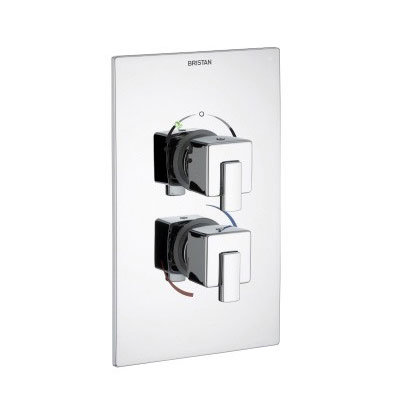

Bristan - Qube Concealed Dual Control Thermostatic Shower Valve w/ Diverter - QU-SHCDIV-C
The Qube shower valve has a wonderful modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.
Features
The Qube shower valve has a wonderful modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.
Features
- Product Code: QU SHCDIV C
- Finish: Chrome
- Product Type: Contemporary
- Construction: Bodies are of all brass construction
- Cartridge Type: Thermostatic cartridge
- Supply: Suitable for all plumbing systems, preferably balanced
- Inlet Connections: 15mm compression elbows
- Outlet Connection: 15mm compression outlets
- Water Pressure: Min 0.5bar, Max 5.0bar, Maximum Static Pressure 10.0bar
- Dimensions for Fitting: 150mm inlet centres
- Supplied with hose outlet.
- Supplied with metal handles.
- Dual control – Flow and temperature are controlled separately, giving accurate control of both.
- Thermostatic cartridge maintains showering temperature to +/- 1ºC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
- Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of any injury.
- Factory set to a maximum of 42ºC to eliminate the ability to select an unsafe temperature.
- Swivel inlet elbows with 150mm centres, valve can be fed from top, bottom or rear.
- Suitable for minimum wall cavity depth of 65mm.
- Chrome plated to BS EN 248.
- Concealing plate material = ABS (plastic)
- Product supplied with 2 x 7 litre per minute flow regulators, one fitted in each inlet to control water flow when fitted to instantaneous water heaters (combination boilers). These can be removed to suit different water delivery systems, i.e. low pressure gravity fed systems.
