Bristan - Opac Thermostatic Concealed Shower Valve with Chrome Handwheel

Part No:OP-TS1503-CH-C

Discontinued

Category logo image
Browse all Bristan

Product Information

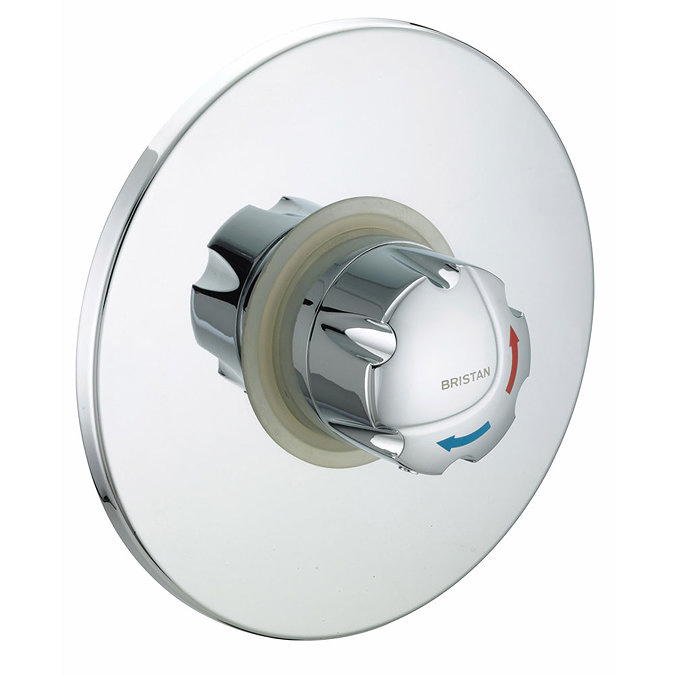

Bristan - Opac Thermostatic Concealed Shower Valve with Chrome Handwheel - OP-TS1503-CH-C

From the Bristan Commercial range, the Opac Thermostatic Concealed Shower Valve with Chrome Handwheel is a single sequential controlled valve for both temperature and flow. It features an automatic thermostatic shut-off in the event of hot or cold water failure and an anti-vandal stainless steel concealing plate. TMV3 and WRAS approved.

Product Details
  • Product Code: OP TS1503 CH C
  • Finish: Chrome Plated
  • Product Type: Commercial
  • Cavity Depth: 64 – 74mm
  • Construction: Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) & BS EN 1287:1999 (LP)
  • Valve Type: Thermostatic Cartridge
  • Supply: Suitable for all plumbing systems (Preferably balanced)
  • Inlet Connections: 15mm compression elbows
  • Outlet Connections: ½” BSP
  • Working Pressures: Min 0.2bar, Max 8.0bar. Maximum Static Pressure: 10.0 bar
  • Dimensions for Fitting: 175mm inlet centres
  • Single sequential control for both temperature & flow.
  • Anti-vandal stainless steel concealing plate
  • Automatic thermostatic shut-off in the event of hot or cold water failure.
  • Check valves and serviceable filters as standard
  • Inlet centres of 175mm +/- 1mm.
  • Chrome plated to BS EN 248.
Compliance / Approvals

WRAS: Certificate Nº: 0712092
TMV3: Certificate Nº: BC397/1208

12 Months manufacturers guarantee
