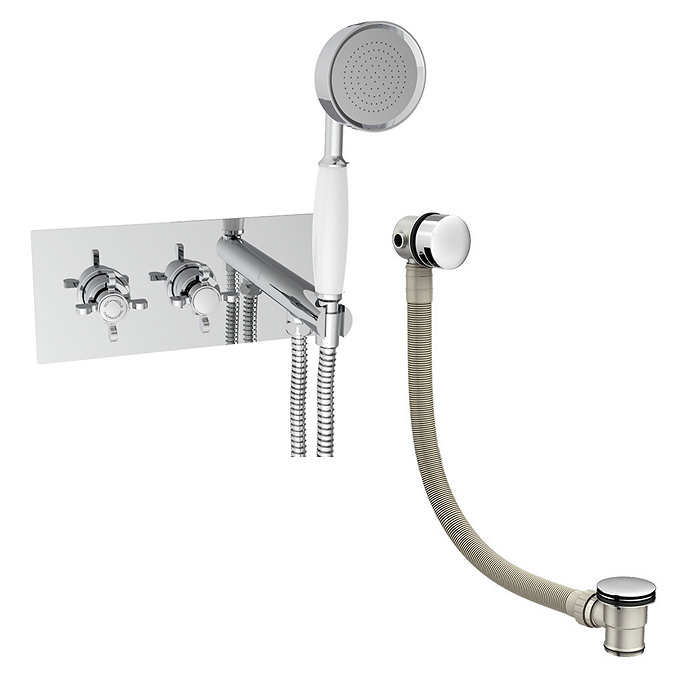

Astoria Traditional Concealed Thermostatic 2-Way Shower Valve with Handset + Freeflow Bath Filler

Astoria Traditional Concealed Thermostatic 2-Way Shower Valve with Handset and Round Slimline Freeflow Bath Filler

The Astoria concealed thermostatic control shower valve features a handy two-outlet valve and diverter, allowing you to switch water flow between the bath filler and shower handset. The clever thermostatic shower valve will always keep your water at a safe temperature. With luxurious crosshead handles, this traditional-style shower valve is perfect for installing in a concealed arrangement.

Shower Valve Details:

• Style: Traditional
• Range: Astoria
• Type: 2-Way Shower Diverter Valve with Handset
• Valve Handles: Crosshead
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Integrated parking bracket
• Wall mounted
• For use with 2 outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Two outlet valve with diverter: Switch between bath and shower or two shower outlets
• Includes: 1.5m hose and traditional shower handset

Freeflow Bath Filler Details:

• Colour/Finish: Chrome
• Product Type: Freeflow Bath Filler and Overflow
• Click Clack Bath Waste
• Standards: Manufactured in accordance with EN200
• Requirement: Suitable for all plumbing systems; suitable for baths up to 18mm thick. Not suitable for pressed steel baths.
• Bath Filler Option: Connects to hot and cold water supply; requires additional side valves or shower valve
• Installation: Must be fitted on a flat edge; not suitable for pressed steel baths
• Pump Recommendation: Universal or negative head pump if required

Notes:

Shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed
All measurements are approximate
Images are for illustrative purposes only
Guarantee: 5 Years

Comprises:

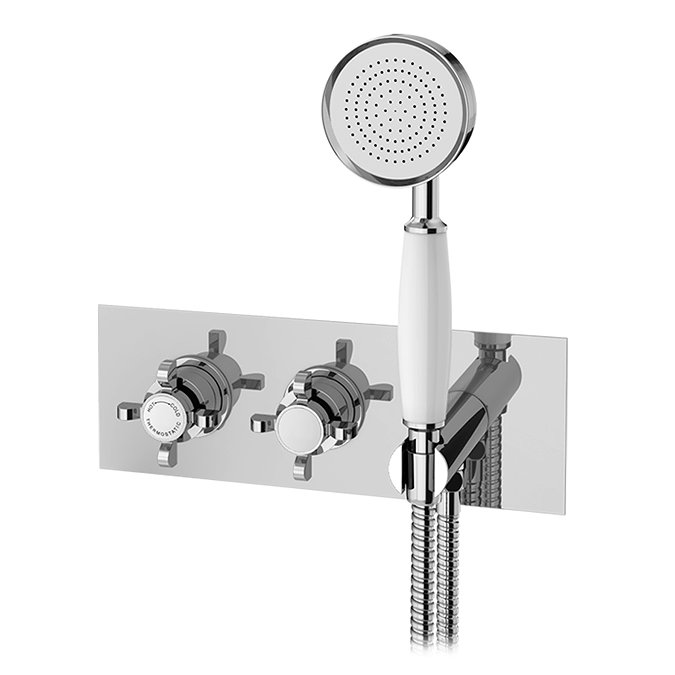

Astoria Traditional Concealed Thermostatic 2-Way Shower Valve with Handset
Round Slimline Freeflow Bath Filler
