Arezzo IPX5 Quiet Extractor Fan Basic Model

Arezzo IPX5 Quiet Extractor Fan Basic Model

The Arezzo IPX5 Quiet Extractor Fan incorporate a high extraction rate whilst producing an incredibly quiet running volume all with the additional flexibility of being IPX5 compliant. IPX5 fans can be installed into zone 1 without the need for a low voltage transformer making this comprehensive range ideal for bathrooms and toilets. The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output. This basic model is operated by the light or remote switch only.

Product Details



• Dimensions: (H)160 x (W)160 x (D)40mm
• Spigot Diameter: 99mm
• IPX5 rated for compliant zone 1 installation
• Decibel Level of only 28dB(A) at 3m
• Manufactured using high gloss ABS thermoplastics for strength and durability
• An impressive extraction rate of 75m3/hr, 21 litres per second
• Low energy motor with a maximum consumption of 6 Watts
• Low SFP of just 0.29W/l/s
• Complete with integral backdraught shutters
• Complies with both Part F & L
• Suitable for ceiling or wall mounting
• Made in the UK
• Light or switch operated



2 Year Guarantee

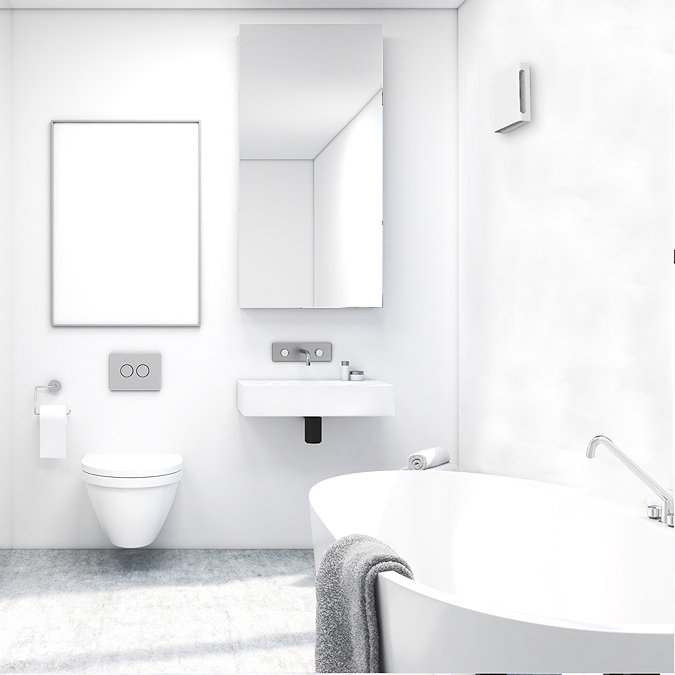

Product images are for illustrative purposes only
