Arezzo 100mm Turbo Extractor Fan - Timer - S-Line Design

Part No:AZKWT1TLD

£32.95

In Stock

Delivery OptionsAdd postcode to view all options

Delivery & Returns FAQs

Browse all Arezzo

Product Information

Arezzo 100mm Turbo Extractor Fan - Timer - S-Line Design

The unobtrusive Arezzo turbo high air exchange capacity bathroom extractor fan uses the latest technology to deliver you optimal performance, comes with elegant S-Line design front panel featuring a unique wavy pattern. Suitable for a wide variety of fittings such as walls, ceilings and panels.

The fan is switched on and off by means of a switch (not included in the device) being a part of the electrical installation of the building, but it will turn off after the time set by a potentiometer on the PCB has elapsed. The minimum delay is 3 minutes, the maximum - 30 minutes. Time delay adjustment is smooth.

Product Details

Fan Housing Size: 130 x 130 x 88mm
Front Panel Size: 160 x 160 x 26mm
Hole Diameter: 100mm
Front Panel Colour: White with Silver Insert (Painted)
Panel Shape: Square
High air exchange capacity
Material: ABS plastic
Ball bearings
IPX4 - electrically safe for use in the bathroom
Clever in-built timer
Maximum operating temperature 40°C
Installation Type: Wall / Ceiling
Non-return valve (ZZ) usage ability
Quiet operation - Only 36 decibels
Air pressure PA: 40
Airflow per hour: 119
Standards: CE
Wattage: 13

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 2 Year

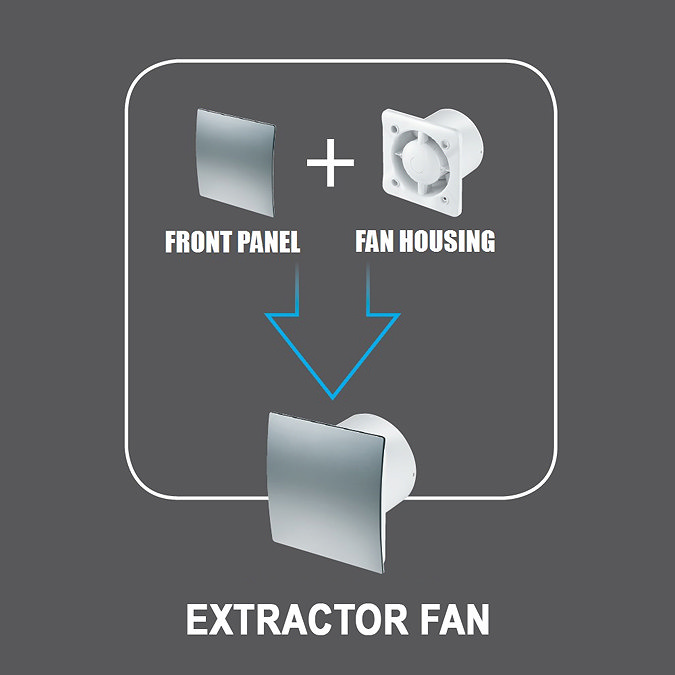

Comprises

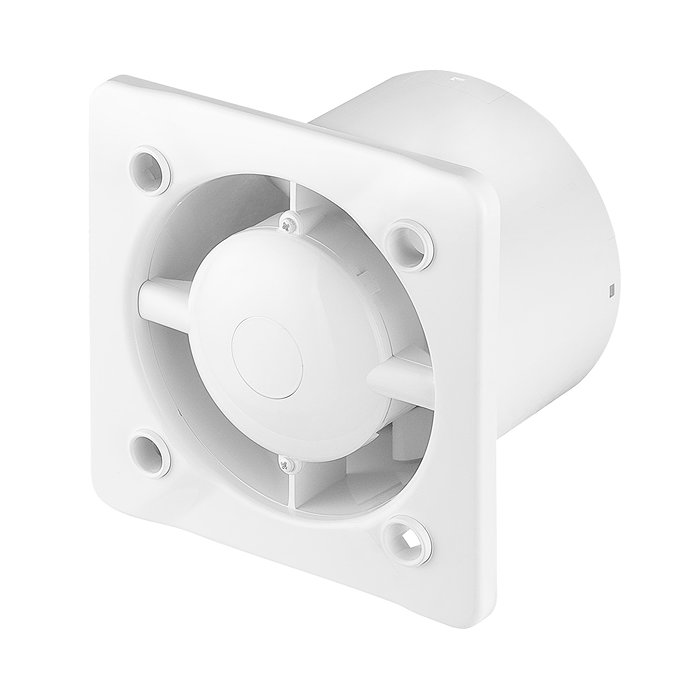

(1) 100mm Turbo Bathroom Fan Housing - Timer
(1) S-Line Design Front Panel - White with Silver Insert (Painted)
