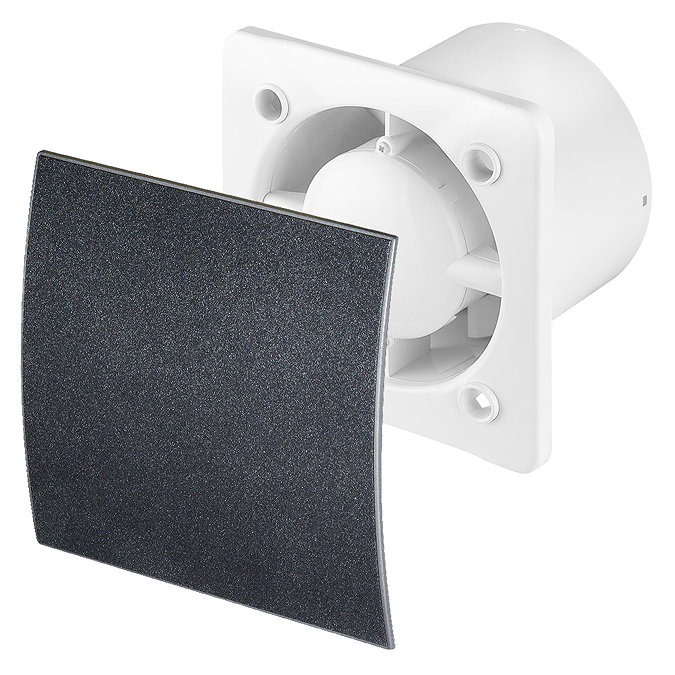

Arezzo 100mm Silent Extractor Fan - Humidistat - Graphite
Part No:AZKWS1HGR
£44.95
In Stock
Delivery OptionsAdd postcode to view all options
Delivery & Returns FAQs
Product Information
Arezzo 100mm Silent Extractor Fan - Humidistat - Graphite
The unobtrusive Arezzo silent bathroom extractor fan uses the latest technology to deliver you optimal performance, comes with decorative Graphite front panel. Suitable for a wide variety of fittings such as walls, ceilings and panels.
The humidity sensor detects moisture in the range of 40% to 90% relative humidity. The fan – depending on the connection solution to the network – can be launched automatically or manually.
AUTOMATIC START: the device switches on when the air humidity level exceeds the value set on the H-potentiometer and it switches off after passage of time (defined on the T-potentiometer) counted from the moment of humidity level decrease.
MANUAL START: the fan is activated by the switch being part of the building’s electrical system (not included in the device) or a separate switch intended for fan. After turning off the switch, the device (as in the first case) switches off after the time specified on the T-potentiometer, if the moisture level in the room is below the level set on the H-potentiometer. The moisture detection system is the master system.
Product Details
Product images are for illustrative purposes only and may differ from the actual product.
Guarantee: 2 Year

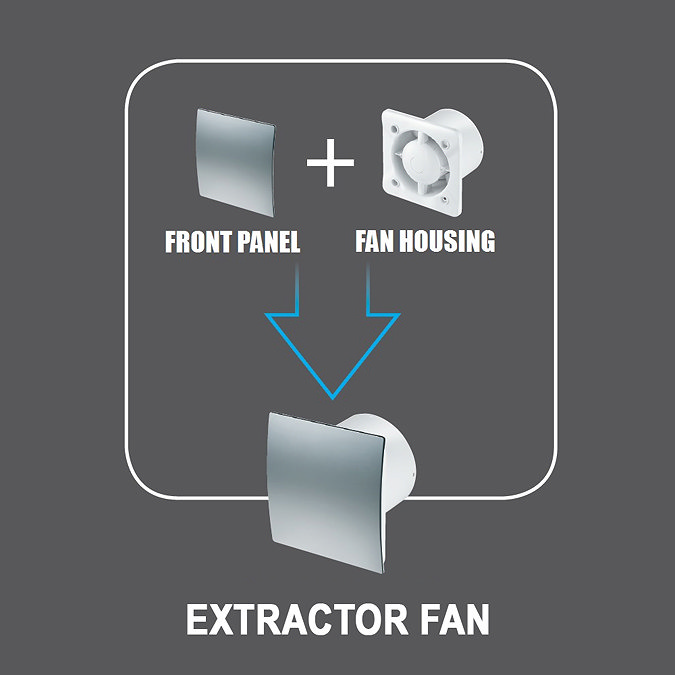

Comprises

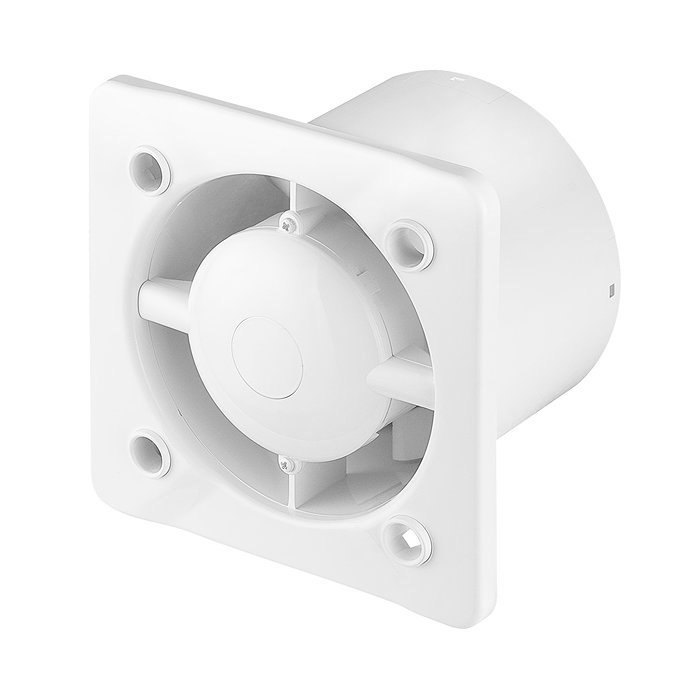

(1) 100mm Silent Bathroom Fan Housing - Humidistat
(1) Curved Front Panel - Graphite
The unobtrusive Arezzo silent bathroom extractor fan uses the latest technology to deliver you optimal performance, comes with decorative Graphite front panel. Suitable for a wide variety of fittings such as walls, ceilings and panels.
The humidity sensor detects moisture in the range of 40% to 90% relative humidity. The fan – depending on the connection solution to the network – can be launched automatically or manually.
AUTOMATIC START: the device switches on when the air humidity level exceeds the value set on the H-potentiometer and it switches off after passage of time (defined on the T-potentiometer) counted from the moment of humidity level decrease.
MANUAL START: the fan is activated by the switch being part of the building’s electrical system (not included in the device) or a separate switch intended for fan. After turning off the switch, the device (as in the first case) switches off after the time specified on the T-potentiometer, if the moisture level in the room is below the level set on the H-potentiometer. The moisture detection system is the master system.
Product Details
- Fan Housing Size: 130 x 130 x 88mm
- Front Panel Size: 160 x 160 x 30mm
- Hole Diameter: 100mm
- Front Panel Colour: Graphite
- Panel Shape: Square
- Silent operation
- Fan Housing Material: ABS plastic
- Decorative cover made from a galvanised, specially coated metal sheet that lends the cover a unique texture and colour.
- Ball bearings
- IPX4 - electrically safe for use in the bathroom
- Humidity sensor + timer
- Maximum operating temperature 40°C
- Installation Type: Wall / Ceiling
- Non-return valve (ZZ) usage ability
- Quiet operation - Only 26 decibels
- Air pressure PA: 26
- Airflow per hour: 75
- Standards: CE
- Wattage: 5
Product images are for illustrative purposes only and may differ from the actual product.
Guarantee: 2 Year
Comprises
(1) 100mm Silent Bathroom Fan Housing - Humidistat
(1) Curved Front Panel - Graphite
