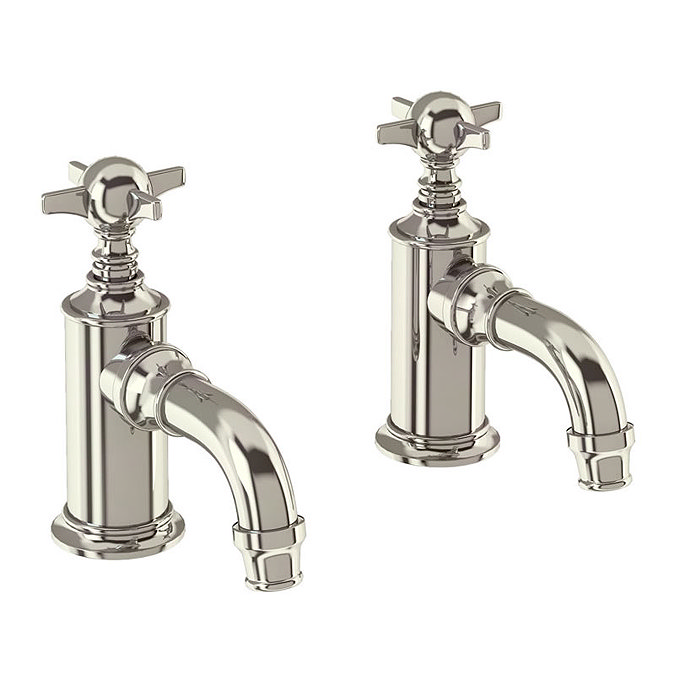

Arcade Cloakroom Basin Pillar Taps with Tap Handles - Nickel
Part No:ARC36
Discontinued
Product Information
Arcade Cloakroom Basin Pillar Taps with Tap Handles - Nickel - ARC36
The Cloakroom Basin Pillar Taps from Arcade have a traditional design which has been inspired by the 19th century Belle Époque deco era. Each piece of brassware has been beautifully crafted from the finest materials and finished in a special PVD nickel coating which gives a superior finish and guarantees durability.
These taps are suitable for high and low pressure installations and is fitted with quarter turn ceramic disc headwork which provides a smooth movement. The minimum work pressure is 0.1 bar and the maximum work pressure is 5 bar. If the mains pressure is over 5 bar, a pressure reducing valve should be fitted. Supplied with an aerator and flow straightener for use with high or low water pressure. All Arcade products carry a 10 year guarantee.
Product details
BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Supplied with aerator - this is for use with high water pressure
Supplied with Flow straighter - this is for use with low water pressure
10 year guarantee
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 7.01 11.39 16.34 23.39 28.87
Spout (aerator) 3.63 5.7 7.64 11.18 13.69
The Cloakroom Basin Pillar Taps from Arcade have a traditional design which has been inspired by the 19th century Belle Époque deco era. Each piece of brassware has been beautifully crafted from the finest materials and finished in a special PVD nickel coating which gives a superior finish and guarantees durability.
These taps are suitable for high and low pressure installations and is fitted with quarter turn ceramic disc headwork which provides a smooth movement. The minimum work pressure is 0.1 bar and the maximum work pressure is 5 bar. If the mains pressure is over 5 bar, a pressure reducing valve should be fitted. Supplied with an aerator and flow straightener for use with high or low water pressure. All Arcade products carry a 10 year guarantee.
Product details
- Finishes: Nickel plated
- Product Type: Traditional
- Material: Brass
- Water Pressure: Range from a minimum pressure of 0.1 bar to a maximum of 5 bar.
- Quarter turn ceramic disc valves
BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Supplied with aerator - this is for use with high water pressure
Supplied with Flow straighter - this is for use with low water pressure
10 year guarantee
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 7.01 11.39 16.34 23.39 28.87
Spout (aerator) 3.63 5.7 7.64 11.18 13.69
