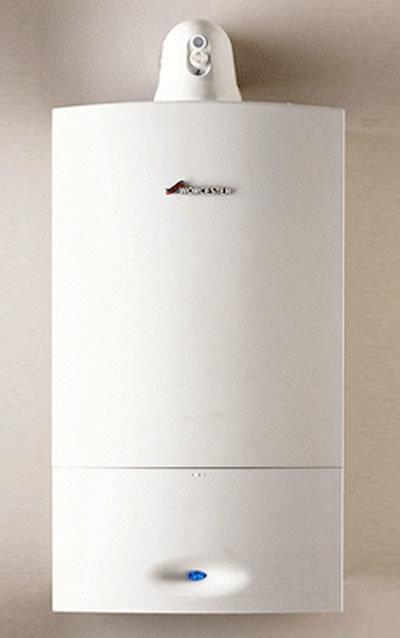

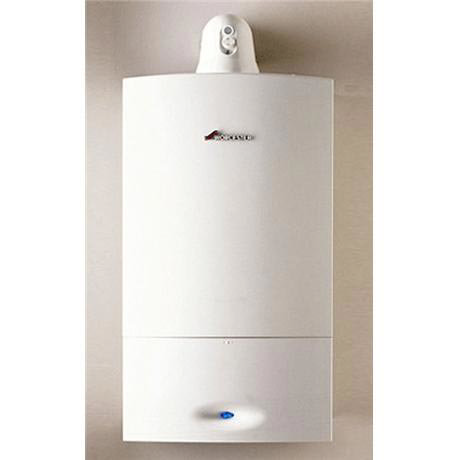

The Greenstar 12i System is part of a market-leading range of energy-saving condensing gas-fired boilers from Worcester System series boilers. Greenstar 12i System boilers can cut hot water and heating bills up to 20% - and they?re up to 30% cheaper in maintanance than an older boiler. Up to 97% of the gas consumed by a new Greenstar 24i condensing System Boiler is converted into heat for the heating of the system.
Greenstar 12i is easy to carry and install.Greenstar condensing boilers deliver this energy-saving performance by recycling exhaust gases to extract and re-use latent heat - a highly efficient use of energy which also significantly reduces carbon dioxide in the atmosphere.
Pick up only NO DELIVERY - you must make arrangements to pick item up.
Key Features:
-
12kW output (24kW output also available)
-
SEDBUK A-rated - environmentally friendly
-
Compatible with Greenskies solar water heating
-
Compact dimensions ? space saving and siting flexibility
-
One man lift- 27kg
-
Proven cast aluminium heat exchanger
-
Low NOx and CO2 emissions - eco friendly
-
Wall mounting frame with pipes behind - no exposed pipework
-
2 year** warranty with 10 year** warranty on primary heat exchanger
-
LPG boiler available
Specification:
| Title |
Value |
| Height (mm) |
710mm (max) |
| Width (mm) |
400mm |
| Depth (mm) |
330mm (max) |
| Weight |
27.1kg |
| SEDBUK Value/band |
90.1% Band A |
| Output to central heating |
4-12.0kW (13,650-40,950 Btu's/hr) |
| Solar compatible |
Yes |
| Maximum horizontal flue (100mm Ø) |
4,600mm (inc terminal) |
| Maximum vertical flue (100mm Ø) |
6,400mm (inc terminal) |
| Maximum horizontal flue (125mm Ø) |
13,000 (inc terminal) |
| Maximum vertical flue (125mm Ø) |
15,000 (inc terminal) |
| Gas connection |
22mm compression |
| Pressure relief valve |
15mm Ø |
| Heating flow and return connections |
22mm compression |
| Condensate connection |
22mm plastic pipe |
| Primary water content |
2.75 litres |
| NOx classification |
Class 5 |
| Wall mounting jig |
Yes |
| Plug-in timers |
Yes (optional) |
| Optimising room temperature controller |
Yes (optional) |
