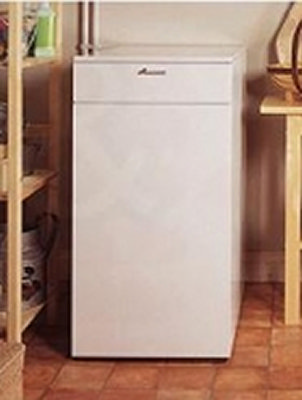

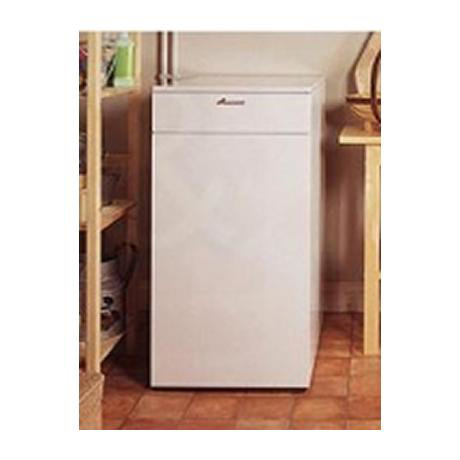

The Greenstar Utility 50-70 is part of a market-leading range of energy-saving condensing oil-fired boilers from Worcester Greenstar Utility Regular boiler series. Greenstar Utility 50-70 is manufactured to provide high quality and high efficient heating and hot water supply for large domestic property or house or even commercial buildings. This high efficient re-use of energy helps to cut down on wasted fuel which meaningfuly reduces energy bills by between 5 and 10% . At least 93% of the oil consumed by a Greenstar Utility condensing regular boiler is converted into heat for the heating and/or hot water system.
Greenstar Utility condensing boilers provides this energy-saving performance by recycling exhaust gases to extract and re-use latent heat. This highly efficient use of energy which also significantly reduces carbon dioxide in the atmosphere. Greenstar Utility 50-70 Boiler is ideal for replacing an existing boiler located in a utility room, garage or kitchen.
Pick up only NO DELIVERY - you must make arrangements to pick item up.
Key Features:
-
SEDBUK(Seasonal Efficiency of Domestic Boilers in the UK) A Rated – more environmentally friendly
-
25kW, 50kW and 70kW outputs
-
Robust quality manufacture – quality assurance
-
Compatible with Greenskies solar panels
-
Cabinet dimensions specifically designed for ease of installation in new or existing garage/utility room
-
5 year warranty - Subject to conditions
Specification:
| Title |
Value |
| Height (mm) |
997mm |
| Width (mm) |
520mm |
| Depth (mm) |
815mm |
| Weight |
280kg |
| SEDBUK Value/band |
92.5% Band A |
| Solar compatible |
Yes |
| Minimum diameter flue CF |
130mm |
| Minimum diameter flue RS |
100/150mm |
| Primary vent |
1 1/2 inch BSP |
| Primary cold feed |
1 1/2 inch BSP |
| Heating flow and return connections |
1 1/2 inch BSP, 28mm |
| Condensate connection |
21.5mm polypropylene |
| Oil connection |
10mm |
| Max. primary static head |
30 metres |
| Maximum flow temperature |
55/82°C |
| Min. primary static head |
1 metre |
| Primary water content |
51 litres |
| NOx classification |
Class 3, 50mg/kWh |
| Water side resistance 20°C |
40mbar |
| Exhaust flue gas mass flow |
106kg/hr |
| Control thermostat range |
5°C |
| Power consumption |
220W |
| Ingress protection rating |
20 IP |
| Flue reset overheat thermostat (cut out) (°C) |
120°C |
| Boiler manual reset overheat thermostat (cut out) |
110°C |
| Boiler high limit thermostat (cut out) (°C) |
100°C |
| Maximum hearth temperature |
100°C |
| Maximum horizontal flue RS |
3,000mm |
| Maximum vertical flue RS |
6,000mm |
| Power supply |
230 AC V 50Hz |
