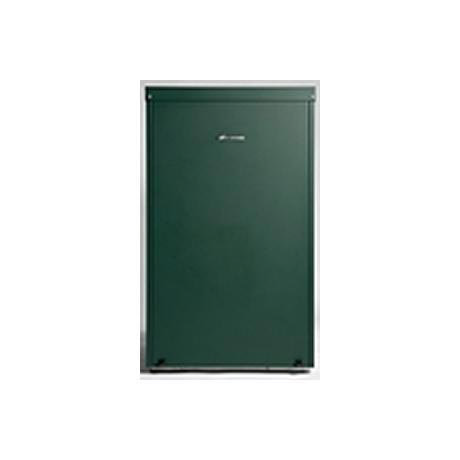

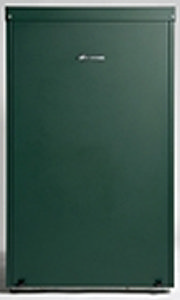

The Greenstar Camray External 25-32 is part of a market-leading range of energy-saving condensing oil-fired boilers from Worcester Greenstar Camray External series. Greenstar Camray External 25-32 combines high quality design for reliability and effective energy-saving technology. At least 93% of the oil consumed by a Greenstar Camray External condensing regular boiler is converted into heat for the heating and/or hot water system and they can cut heating and hot water bills by between 5-10% and leaves less effect on environment.
The Greenstar Camray External condensing boilers are prepared to supply this highly efficient practise by recycling exhaust gases. The latent heat of the gaseous is extracted and reused as a secondary heating device meaning that a very less of energy is wasted or lost and boiler delivers less carbon dioxide in the atmosphere.The Greenstar Camray External 25-32 is suitable for whom an indoors boiler would be inconvenient or undesirable and wish to save space in the house.
Pick up only NO DELIVERY - you must make arrangements to pick item up.
Key Features:
-
SEDBUK(Seasonal Efficiency of Domestic Boilers in the UK) A Rated
-
18kW, 25kW and 30kW outputs
-
Ideal solution for saving internal property space
-
Built-in frost protection
-
Compatible with Greenskies solar water heating
-
High quality insulated weatherproof cabinet – resistant to water, dust and the external elements
-
5 year warranty - Subject to conditions
Specification:
| Title |
Value |
| Height (mm) |
950mm |
| Width (mm) |
565mm |
| Depth (mm) |
780mm |
| Weight |
122kg |
| SEDBUK Value/band |
94.2% Band A |
| Solar compatible |
Yes |
| Burner |
Riello RDB 2.2 |
| Minimum diameter flue RS |
80/125, 100/150 |
| Primary vent |
1¼ inch BSP |
| Primary cold feed |
3/4 inch BSP |
| Heating flow and return connections |
1¼ inch BSP, 28mm |
| Condensate connection |
21.5 |
| Condensate trap |
Accessory kit supplied |
| Oil connection |
10 |
| Max. primary static head |
30 |
| Min. primary static head |
Yes |
| Primary water content |
21 |
| NOx classification |
Class 3, 50mg/kWh |
| Water side resistance 20°C |
69 |
| Exhaust flue gas mass flow |
51 |
| Control thermostat range |
55/81 |
| Power consumption |
160 |
| Ingress protection rating |
IP45 |
| Flue reset overheat thermostat (cut out) (°C) |
110 |
| Boiler manual reset overheat thermostat (cut out) |
105 |
| Boiler high limit thermostat (cut out) (°C) |
95 |
| Max. horizontal flue RS 80/125 (mm) |
175 |
| Maximum hearth temperature |
<100 |
| Power supply |
230V, 50Hz |
