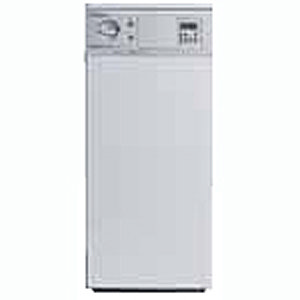

Worcester-Regular-Greenstar Camray 18-25

Open Arrow
£1438.39 (Inc.)
£1224.16(Exc.)
Normally available within 5-7 days
Select Quantity
Part No.: 7716100106
Description

The Worcester Greenstar Camray 18/25 floor standing Regular Oil Boiler is part of the Worcester Greenstar Camray market-leading range of energy-saving condensing oil-fired boilers from Worcester. The Worcester Greenstar Camray 18/25 is designed to provide energy-efficient heating and hot water with very less effect on the environment. The Greenstar Camray 18/25 employs a mild steel primary heat exchanger and a stainless steel secondary heat exchanger to extract additional latent heat from exhaust gases so least 93% of the oil consumed by a Greenstar Camray condensing regular boiler is converted into heat for the heating and/or hot water system.Greenstar Camray 18/25 can reduce heating and hot water bills by between 5-10%. The boiler is typically suitable for installation in a medium-sized family home.

Pick up only NO DELIVERY - you must make arrangements to pick item up.

Key Features:

  • Compatible with Greenskies solar water heating
  • SEDBUK(Seasonal Efficiency of Domestic Boilers in the UK) A Rated – environmentally friendly
  • 18kW, 25kW and 30kW outputs
  • Optional fascia mounted 7 day programmer – reduced wiring
  • Robust quality manufacture – excellence comes as standard
  • Oil isolation valve
  • 5 year warranty (subject to condition)

Specification:

Title Value
Height (mm) 855mm
Width (mm) 370mm
Depth (mm) 600mm
Weight 102kg
SEDBUK Value/band 93.2% Band A
Solar compatible Yes
Burner Riello RDB 2.2
Optional plug-in twin channel digital controls Yes
Minimum diameter flue CF 100
Minimum diameter flue RS 80/125
Primary vent 1 inch BSP
Primary cold feed 3/4 inch BSP
Heating flow and return connections 1 inch BSP, 22mm
Condensate connection 21.5
Condensate trap Accessory kit supplied
Oil connection 10
Max. primary static head 30
Min. primary static head 1
Primary water content 23
NOx classification Class 3
Water side resistance 20°C 52
Exhaust flue gas mass flow 40
Control thermostat range 55/81
Power consumption 160
Ingress protection rating IP20
Flue reset overheat thermostat (cut out) (°C) 110
Boiler manual reset overheat thermostat (cut out) 105
Boiler high limit thermostat (cut out) (°C) 95
Max. horizontal flue RS 80/125 (mm) 4,000
Max. vertical flue RS 80/125 (mm) 8,000
Maximum hearth temperature <100
Power supply 230V, 50Hz
