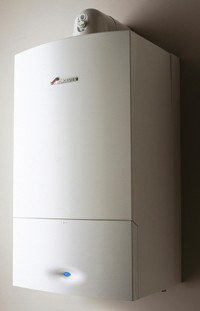

The Greenstar CDi30 is another one market-leading range of energy saving, condensing gas-fired boilers from the Greenstar CDi boiler series, part of Worcester gas-fired boilers.They can reduce heating and hot water bills in between 15% to 20% and save up to 30% cheaper to run than any other older boiler.
Greenstar condensing boilers provide this energy-saving and environment friendly performance by using high technical and high degree analised method of recycling exhaust gases to decompress and re-use latent heat. this highly effective use of energy also meaningfully reduce carbon dioxidde in the atmosphere.
Pick up only NO DELIVERY - you must make arrangements to pick item up.
Key Features
-
Low CO2 and NOx emissions - environmentally friendly
-
Mechanical, digital and radio frequency (RF) control options all available
-
30kW domestic hot water output (availables in 27, 37 and 42kW outputs for this boiler - suit all property types)
-
SEDBUK* A-rated efficiency - environmentally friendly
-
24 hour programmable room thermostat includes
-
Hot water and central heating temperature controls for comfort and flexibility
-
Multi-directional fluing
-
Optimising 7-day programmable room thermostat available
-
Holiday function, frost protection and economic to run while you are away from home
-
Keep hot facility - instantly available hot water
-
Wall mounting frame housing pipes behind it - no exposed pipework
-
Fully condensing in both central heating (CH) and domestic hot water (DHW) modes
-
2 year** warranty with 10 year** warranty on primary heat exchanger
-
LPG boiler available
Specification:
|
Title | Value |
|---|
| Primary water capacity (total) (litres) |
3.75 |
|---|
| Hot/cold water connections |
15mm compression |
|---|
| Height (mm) |
760mm (max) |
|---|
| Width (mm) |
440mm |
|---|
| Depth (mm) |
360mm (max) |
|---|
| Weight |
48.5kg |
|---|
| DHW flow rate @ 35°C rise |
13.1 |
|---|
| DHW flow rate @ 40°C rise |
11.5 |
|---|
| SEDBUK Value/band |
90.1%/Band A |
|---|
| Output to central heating |
8 - 30kW (27,296 - 102,360Btu) |
|---|
| Solar compatible |
No |
|---|
| Maximum horizontal flue (100mm Ø) |
7,000 |
|---|
| Maximum vertical flue (100mm Ø) |
8,000 |
|---|
| Maximum horizontal flue (125mm Ø) |
16,000 |
|---|
| Maximum vertical flue (125mm Ø) |
16,000 |
|---|
| Gas connection |
22mm compression |
|---|
| Pressure relief valve |
15mm |
|---|
| Heating flow and return connections |
22mm compression |
|---|
| Condensate connection |
22mm plastic pipe |
|---|
| Maximum domestic water inlet pressure |
10 bar |
|---|
| Minimum domestic water inlet pressure for maximum DHW rate |
1.4 bar |
|---|
| Minimum domestic water inlet pressure to operate the appliance |
0.2 bar |
|---|
| NOx classification |
Class 5 |
|---|
| Wall mounting jig |
Yes |
|---|
| Filling loop |
Yes |
|---|
| Plug-in timers |
1 (optional) |
|---|
| Optimising room temperature controller |
1 (optional) |
|---|
| Intelligent controls |
1 (optional) |
|---|
| Condensing in DHW mode |
Yes |
|---|
| SEDBUK value %/band - natural gas |
90.1%/Band A |
|---|
| SEDBUK value %/band - LPG |
90.1%/Band A |
|---|
