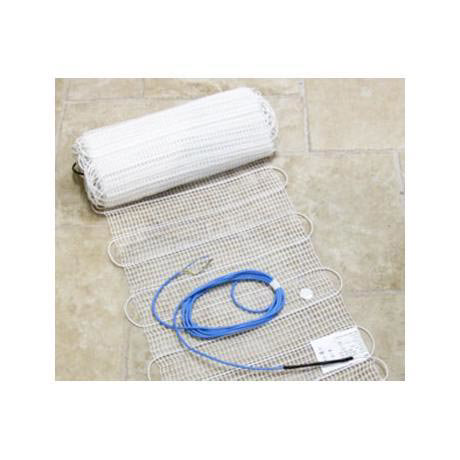

Cosytoes - Trade Mat Underfloor Heating System - Various Sizes

Open Arrow
Images
Part No: TM1M
Estimated Delivery Time:2-7 days Notify Me
Price :
£70.39 (Inc. VAT)
Size
Select Quantity:
You may also like
Description
Cosytoes - Trade Mat Underfloor Heating System - Various Sizes

Suitable for domestic and commercial installations, Cosytoes Trademat is ideal for almost anywhere that requires efficient and economical heating. Now you can have the affordable luxury and practicality of a tile or stone floor that is warm and inviting to walk on, even on the coldest days. Cosytoes Trademat can also be installed in a screed or self-levelling compound under most floor finishes such as hardwood and laminate (following manufacturers advice), and carpet or vinyl. All Cosytoes heating cables conform to IPX7 and are suitable for installation in all areas including wet areas in a bathroom!
  • Completely Safe
  • Maintenance free
  • Efficient, intelligent control
  • 160 watts per square metre
  • Suitable for insulated concrete or timber
Easy to lay, easy to use
Staple, hot glue, screw or use double sided tape to fix down the backing net. Cut the net between wire loops to change direction. Correct wire spacing is assured! Simply tile the floor as normal using flexible adhesive. Use a Cosytoes Thermostat or Widescreen Timerstat for accurate, simple time and temperature control.

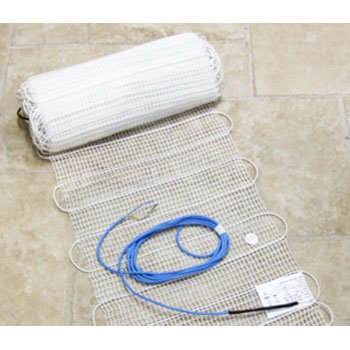

Cosytoes TradematThe Cosytoes robust, triple insulated heating cable is interwoven into a special open weave fabric mesh at a pre-determined cable spacing to give a constant, regulated heating output. The Trademat is simply unrolled and fixed to any sound, level, insulated concrete or timber sub-floor and then connected to the timerstat following the installation instructions. Tile or stone surfaces are then laid in the normal way, the slim-line heater fits snugly into the adhesive layer. For hardwood, laminate and vinyl etc, the heating matrix is covered with a latex floor levelling compound or screed to evenly distribute the heat under the loose laid flooring. (Refer to Cosytoes installation booklet available from your dealer or contact our customer help-line for further information).

Cosytoes Trademat has a 4m cold connection cable at each end, simply roll out the heating from the start point, cut the fabric mesh (never the cable) to turn a corner or fit around fixed objects. Installation couldn’t be easier.

Know your Requirements

Cosytoes Trademat has an output of 160 watts per square metre. Always choose the mat or combination of mats that is equal to or less than your required area. Note: Trademat should only be laid in open areas and not under fitted units as the floor must be able to radiate heat.
Cosytoes Trademat has been designed for ease of installation and safe, economical operation. We advise that a qualified electrician should carry out all electrical connections in line with current I.E.E. regulations. A correctly rated residual current device (R.C.D.) should always be used to protect the heating system.

Use any combination of the following to heat the required area. Always choose the mat or combination that is equal to or less than your required area. Note: One Timerstat can be used to control a maximum of 3600 watts (22sq/m). Where the shape of the area to be heated is particularly complicated, Cosytoes produces a loose cable system that is ideal for difficult areas.


Product Output
Watts/m.sq.		 Total Output
Watts		 Area Covered
Square Metres		 Mat Size
TM1 160 160 1 0.5m x 2m
TM1.5 160 240 1.5 0.5m x 3m
TM2 160 320 2 0.5m x 4m
TM2.5 160 400 2.5 0.5m x 5m
TM3 160 480 3 0.5m x 6m
TM4 160 640 4 0.5m x 8m
TM5 160 800 5 0.5m x 10m
TM6 160 960 6 0.5m x 12m
TM7 160 1120 7 0.5m x 14m
TM8 160 1280 8 0.5m x 16m
TM9 160 1440 9 0.5m x 18m
TM10 160 1600 10 0.5m x 20m

It is recommended that all underfloor heating systems are fitted on level, true insulated concrete or timber floor. Please Seek proffesional electrical advice before installation
